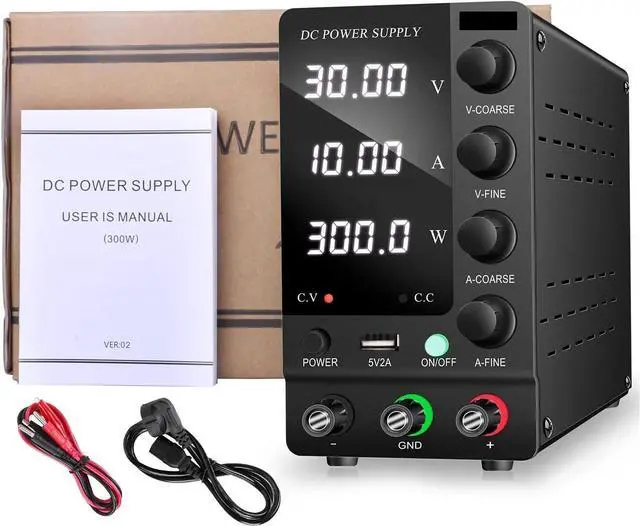

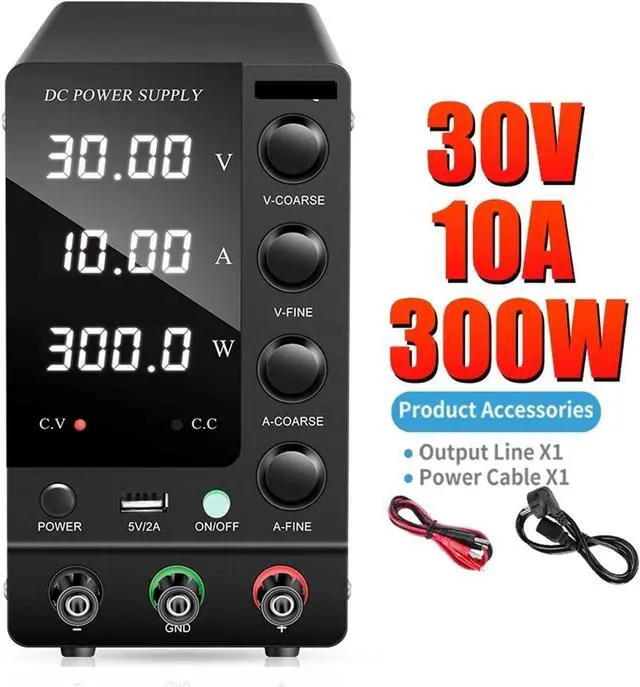

dc Power Supply 30V 10A DC Power Supply Adjustable Digit Display Mini Laboratory Power Supplies Voltage Regulator 60V 5A 120V3A for Phone Repair (Color : A-SPS3010 Black, Size : 110V)
- Set the voltage or current you want more accurately.
- This makes it more convenient for you to use the power supply.
- When a short circuit occurs, the variable DC power supply will stop output and send out an alarm to remind you. Bench power supply also have safety protections such as overvoltage, overcurrent, overheating and overload.
- dc power supply is the best choice for beginners or professional electricians.
- VERSATILE USAGE - Compact and lightweight, doesn't take up of space, ideal for a variety of applications such as school lab experiments, cell phone repair, electronics production assurance specifications, and lab measurements.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.Have complete operating protection function.over temperature protection,overload protection,short circuit protection.
2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.

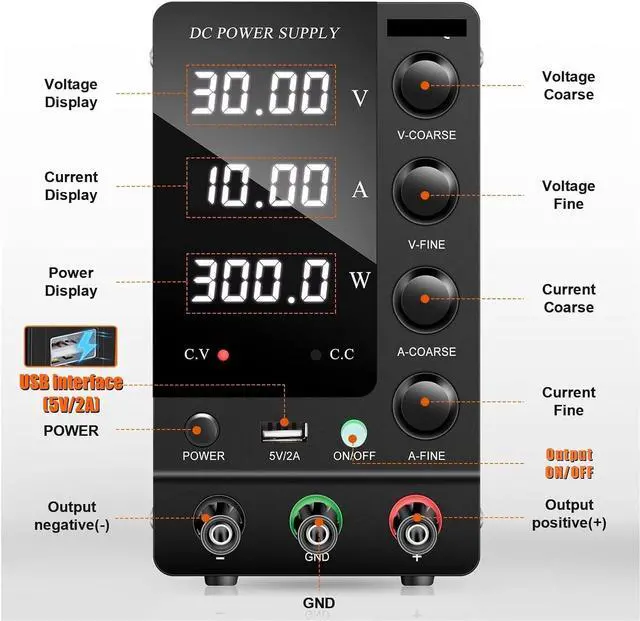

5.Three LED display of voltage, current and power, high precision.

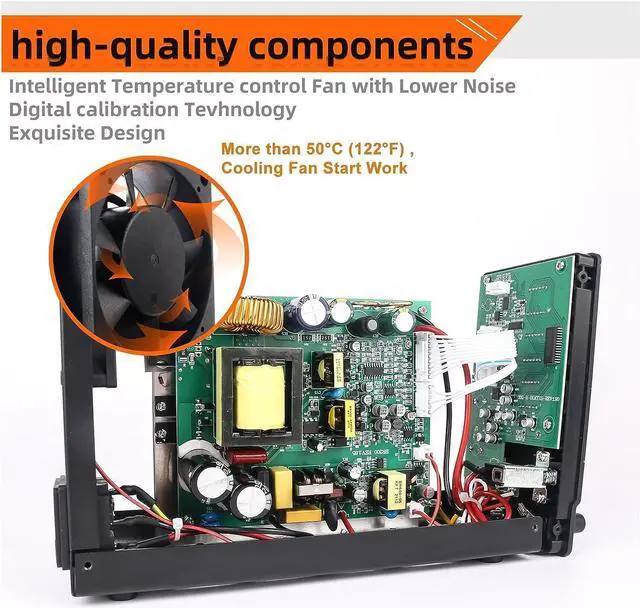

6.Temperature controlled fan heat dissipation, low noise, long life.

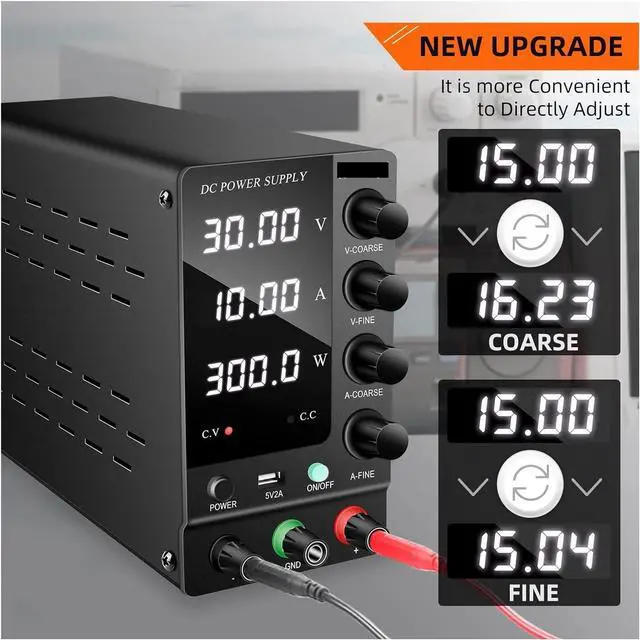

7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to 30V/60V/120V rating voltage with continuous adjustment .
10.Output current ranges from 0 to 10A/5A/3A rating current with continuous adjustment.
More Parameters
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 30V /60V/120V
Output current:0 ~ 10A /5A/3A
Voltage resolution:100mV
Current resolution:10mA
Voltage regulation : Line regulation<;5mV. Load regulation<;5mV.
Recovery time<;500us(50% Load change, minimum load 0.5A)
Ripple & Noise5m Vrms 100m Vp-p
Temperature coefficient<;100p pm/C.
Current regulation line regulation<;3mA. load regulation<;3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity 0 40 C, RH<;80%.
Storage Temperature & Humidity 10 ~ 70 C, RH<;70%.

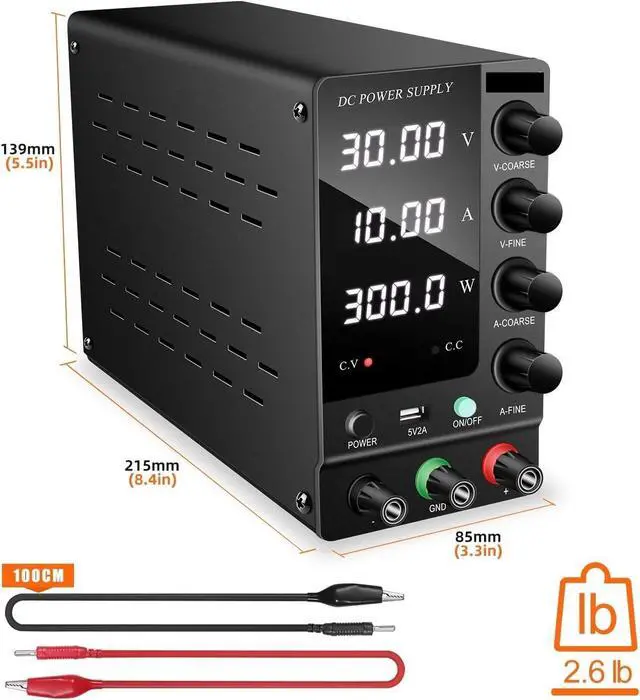

Package Dimensions : 12.48 x 8.23 x 5.08 inches
2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.
5.Three LED display of voltage, current and power, high precision.
6.Temperature controlled fan heat dissipation, low noise, long life.
7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to 30V/60V/120V rating voltage with continuous adjustment .
10.Output current ranges from 0 to 10A/5A/3A rating current with continuous adjustment.
More Parameters
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 30V /60V/120V
Output current:0 ~ 10A /5A/3A
Voltage resolution:100mV
Current resolution:10mA
Voltage regulation : Line regulation<;5mV. Load regulation<;5mV.
Recovery time<;500us(50% Load change, minimum load 0.5A)
Ripple & Noise5m Vrms 100m Vp-p
Temperature coefficient<;100p pm/C.
Current regulation line regulation<;3mA. load regulation<;3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity 0 40 C, RH<;80%.
Storage Temperature & Humidity 10 ~ 70 C, RH<;70%.
Package Dimensions : 12.48 x 8.23 x 5.08 inches
