jojomis 5V 3A Power Supply Module 50x36x21mm Switch Drive Module

Description:
- Wide input voltage range
- Overload, short circuit, overvoltage protection
- Small size, high efficiency
- Low no-load power consumption
- Meet CE certification requirements
Specification:
- Output voltage: 5V
- Rated current: 3A
- Current range: 0-3.5A
- : ?0mVp-p
- Output voltage range: 4.95-5.2v
- Voltage regulation: ±1.1%
- Load regulation: ±1.5%
- Rated power: 17.5W
- Efficiency: 83.5%
- Input voltage range: 90?64V AC(DC 125V?75V)
- Input current: ?.2A
- Frequency range: 47Hz-63Hz
- No-load power consumption: 220VAC IN:?.3W; 110VAC IN:?.1W
- Inrush starting current: COLD START ?0A/230VAC IN
- Leak current: ?mA/220VAC
- Overpower protection: 150-170% rated power, Fault removal automatic
- Over-voltage protection: VH1:?0%
- Output short circuit protection
- Operating temperature & humidity: -20???+40??@100%LOAD, +60??@60%LOAD; 20%-90% RH
- Storage temperature & humidity: -30???+85?? 10%-95% RH
- Withstand voltage: I/P-O/P: 3KVAC 1min.
- Insulation : I/P-O/P: 500VDC/100M Ohms
- Size: 50x36x21mm
- Weight: 35g
Package Includes:

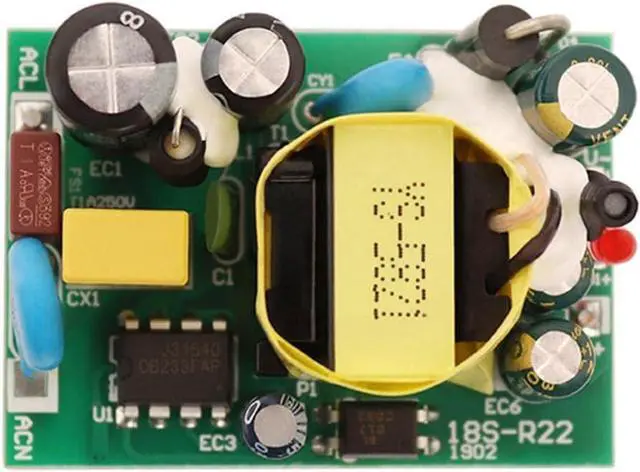

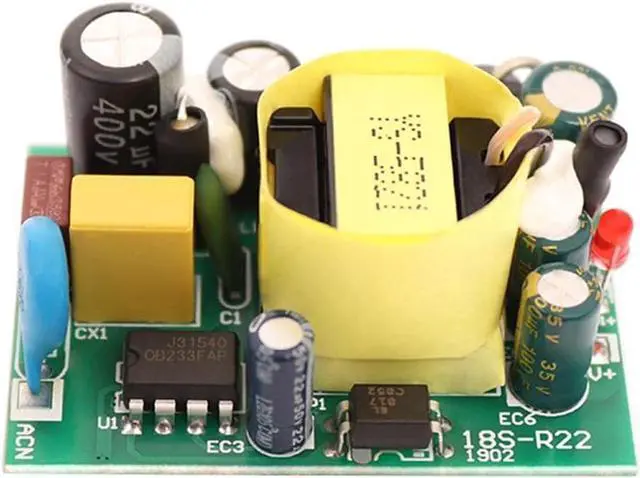

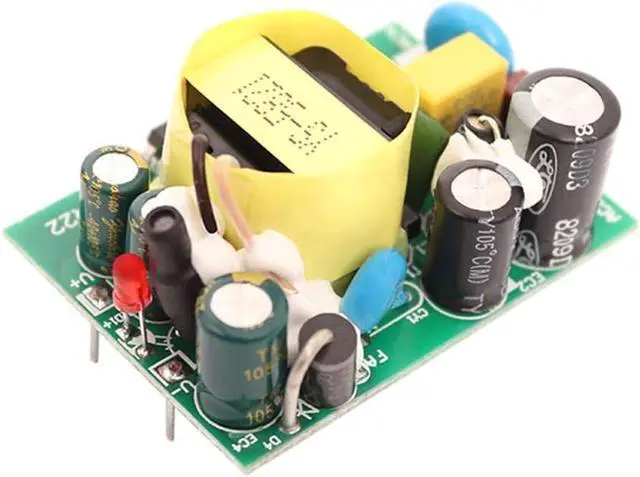

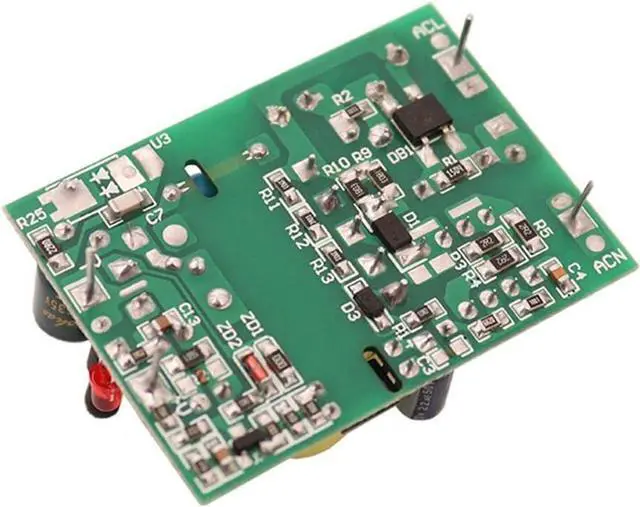

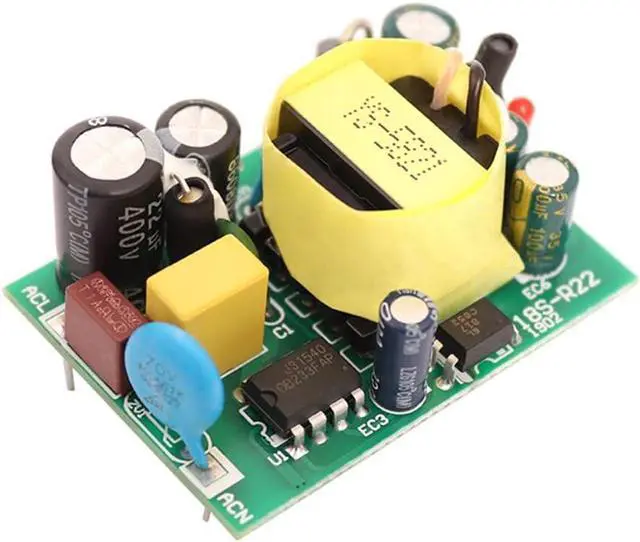

1 x 5V 3A Switching Power Supply Board Module
