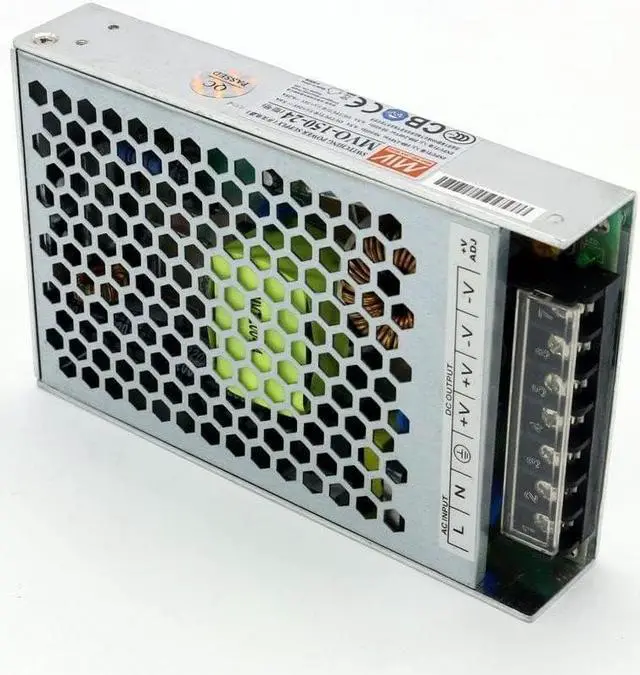

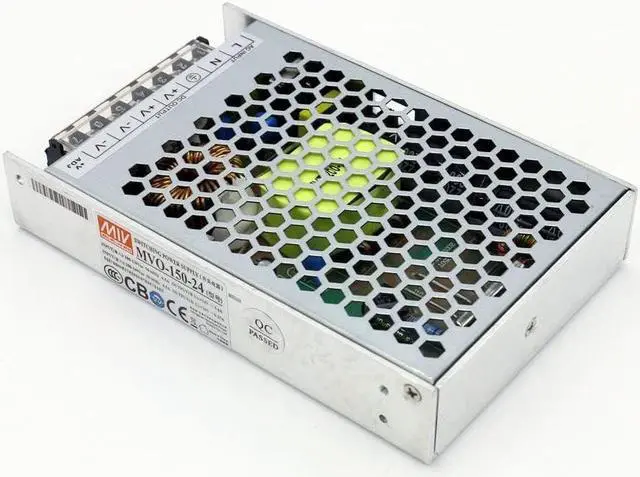

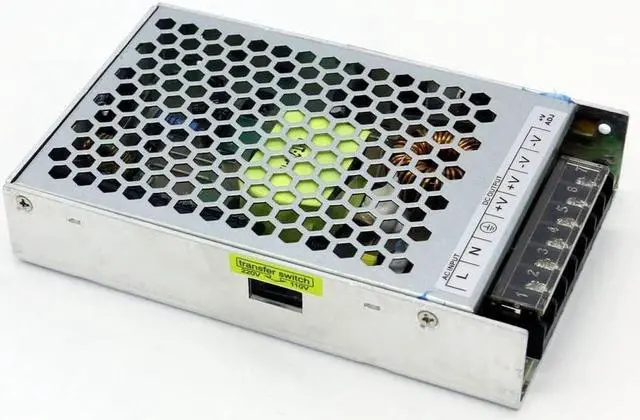

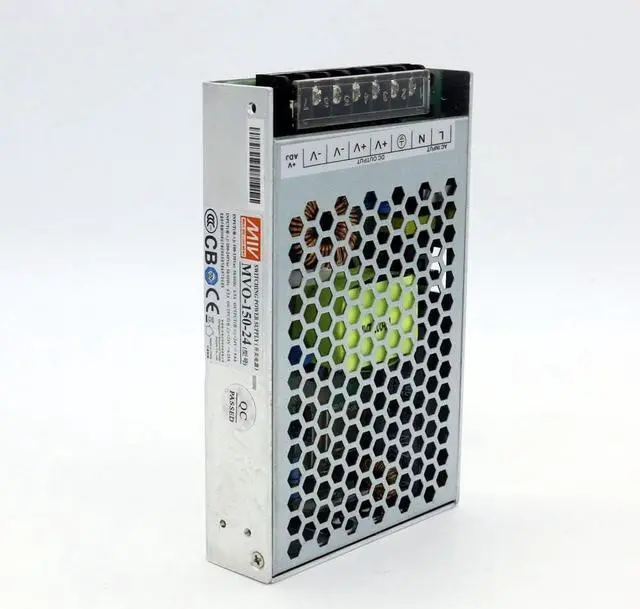

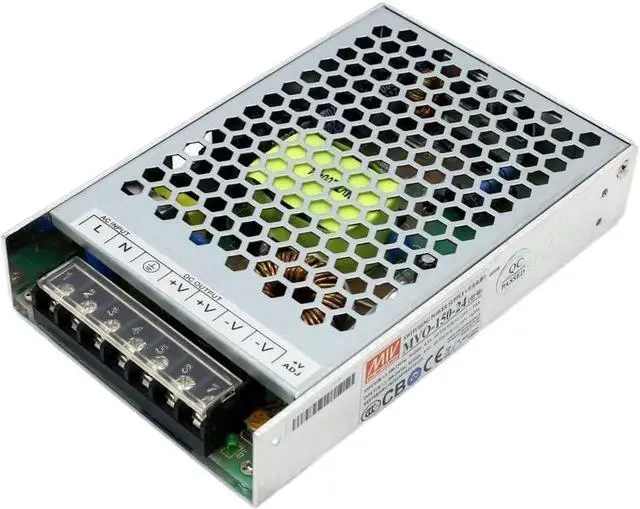

YOOPKA Switching Power Supply Smaller Volume AC to DC Switch Power Supply Output 24V 6.25A 150W
- Circuit Short Protection, Overload Protection and Over Voltage Protection Ensures the Safety of Using This Power Supply.
- Provide many protection & high efficiency, high reliability. Shortage Protection, Overload Protection, Over Voltage Protection, over temperature and inrush current.
- Wide range of input voltage, steady and precise output voltage. Great for Industrial automation, Communications , Computer Project, home appliance etc.
- Metal Enclosed Body is good for Heat Dissipation which Can Prolong the Lifespan of the Power Supply.
- I believe you will like our products, but if you have any questions, please contact us in time, we will give you a satisfactory answer within 24 hours.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1.High efficiency, long life and high reliabili
2.Low dc ripple, high efficiency
3.low operation temperature & long performance life
4.input voltage suitable for most of the countries
5.Excellent insulation property, high dielectric strength
Input AC input voltage range(V) AC 100-130V / 200-240V
AC Input current(max) 6.5A/110V;4.5A/220V
Frequency (Hz) 50/60Hz
Efficiency 90% Typ(230VACFull Load)
Inrush current(A) Cold-start 20A/230V
Leakage current(mA)
<;3mA/240VAC Output Output Voltage(V) +24V DC Output voltage adjusting range ±10% Output Current(A) 6.25A Current Range (A) 0-6.25A Rated Power(W) 150W Start time,hold-up time(ms) Ton1000ms,Td20ms @230Vac Full Load Rise time(ms) Typ:20ms @230Vac Full Load Ripple/Noise(mVp-p) 120mVp-p Environment working Temperature (°C) -40°C - +65°C(refer derating curve) Storage Temperature(°C) -20°C - +60°C Humidity 20% - 90% RH non condensing Protection Over voltage Protection >115%-135% Rated output voltage
Over load Protection >105%-150% Auto recovery
Short circuit Protection Latched
Others Size L*W*H(cm) 15.4*10*3.0
Weight 510g
2.Low dc ripple, high efficiency
3.low operation temperature & long performance life
4.input voltage suitable for most of the countries
5.Excellent insulation property, high dielectric strength
Input AC input voltage range(V) AC 100-130V / 200-240V
AC Input current(max) 6.5A/110V;4.5A/220V
Frequency (Hz) 50/60Hz
Efficiency 90% Typ(230VACFull Load)
Inrush current(A) Cold-start 20A/230V
Leakage current(mA)
<;3mA/240VAC Output Output Voltage(V) +24V DC Output voltage adjusting range ±10% Output Current(A) 6.25A Current Range (A) 0-6.25A Rated Power(W) 150W Start time,hold-up time(ms) Ton1000ms,Td20ms @230Vac Full Load Rise time(ms) Typ:20ms @230Vac Full Load Ripple/Noise(mVp-p) 120mVp-p Environment working Temperature (°C) -40°C - +65°C(refer derating curve) Storage Temperature(°C) -20°C - +60°C Humidity 20% - 90% RH non condensing Protection Over voltage Protection >115%-135% Rated output voltage
Over load Protection >105%-150% Auto recovery
Short circuit Protection Latched
Others Size L*W*H(cm) 15.4*10*3.0
Weight 510g
