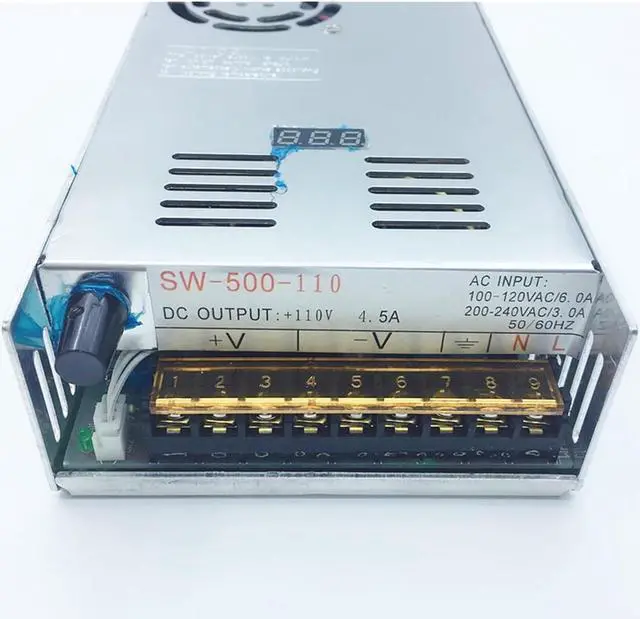

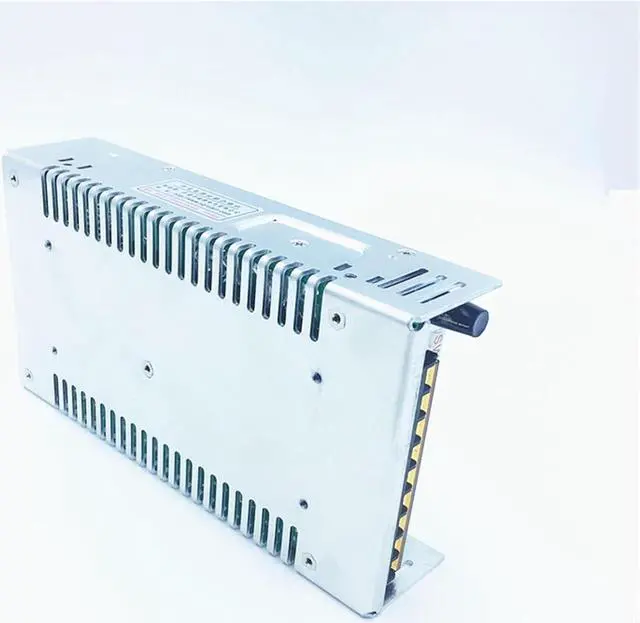

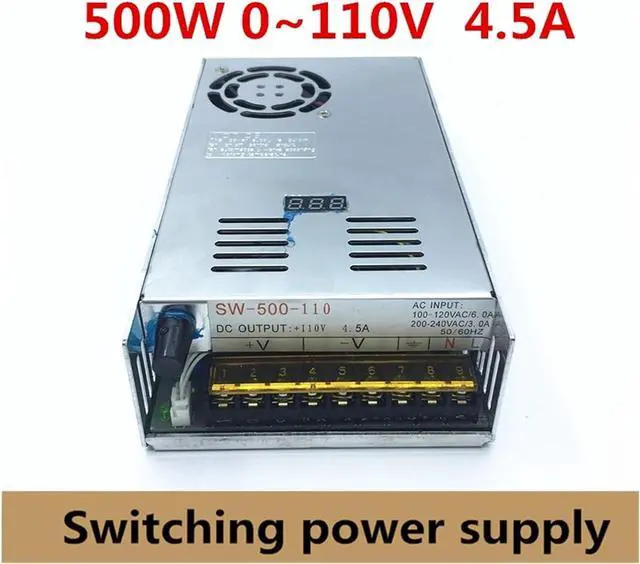

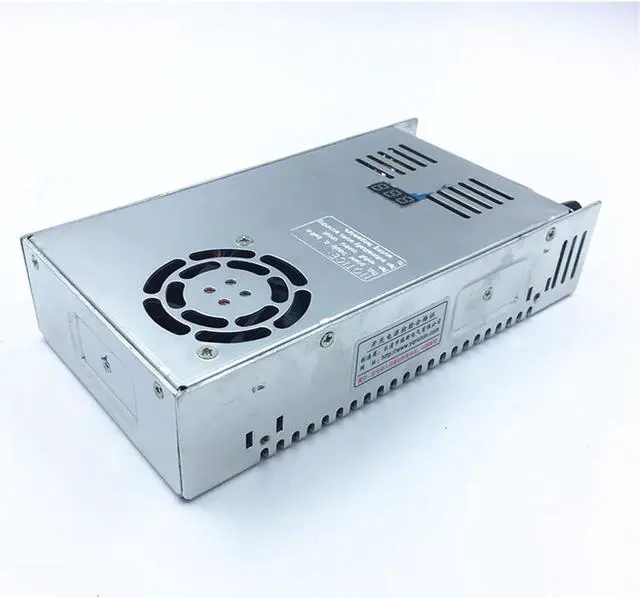

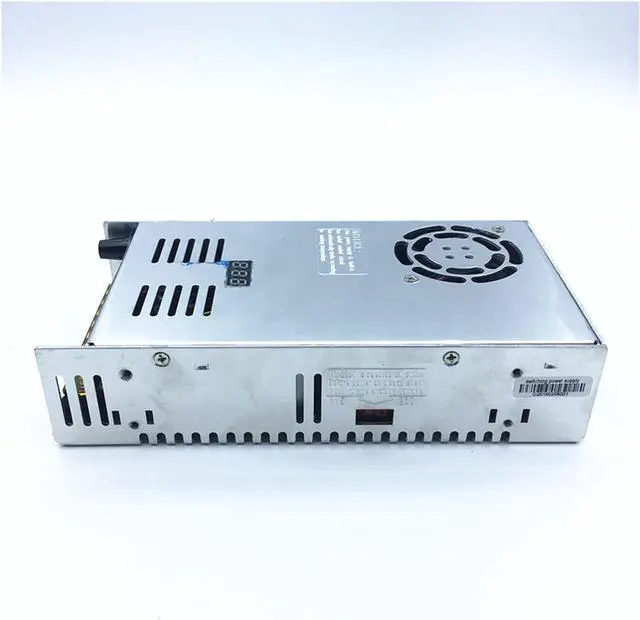

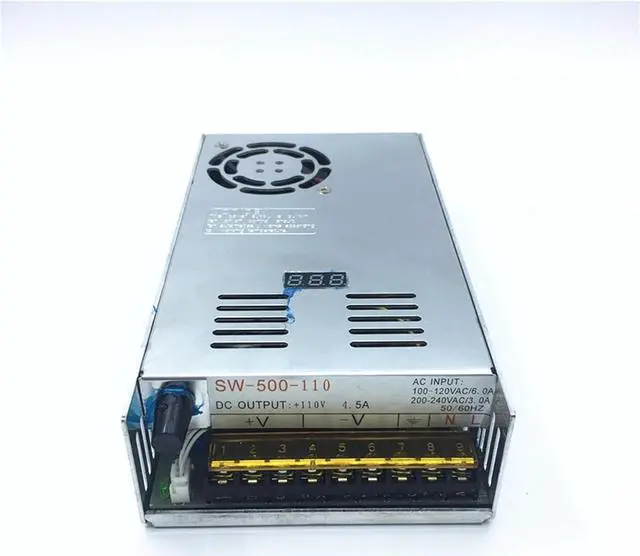

Switching Power Supply 500W Switching Power Supply Output Adjustable 0~110vdc 4.5A AC to DC SMPS for Electronics Led Strip Display Digital Voltage

500W, Output: 0~110VDC, 4.5A
Feature&Advantages
Low price and high reliability
105Celsius degree output capacitor
Universal AC input
High efficiency and low operation temperature
Softstart current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size,light weight

Specification

SW-500-24
SW-500-110
DC Output voltage
24VDC
110VDC
Output voltage range(Note:2)
±1%
±1%
Rated output current
20A
4.5A
Output current range
0~20A
0~4.5A
Wave and noise(Note:3)
240mVp-p
240mVp-p
Inlet stability(Note:4)
±1%
±1%
Load stability(Note:5)
±0.3%
±0.3%
DC output power
480W
480W
Efficiency
85%
86%
Adjustable range for DC voltage
0-24V
0-110V
AC input voltage range
100~132VAC/190~240VAC 250~340VDC
Input current
6.5A/115V 4A/230V
AC Inrush current
Cold-start current 25A/115V 50A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
105%-150% Type: cut down output Reset: auto recovery
Over-voltage protection
......................
High-temperature protection
......................
Temperature coefficient
±0.03%/°C(0~50°C)
Setup, rise, hold up time
800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v
Vibration
10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity
-10°C~+60°C(Refer to output derating curve), 20%~90%RH
Store temperature and humidity
-20°C~+85°C, 10%~95%RH
Overall dimension
215*115*50mm (L*W*H)
Weight
1.15 kg
