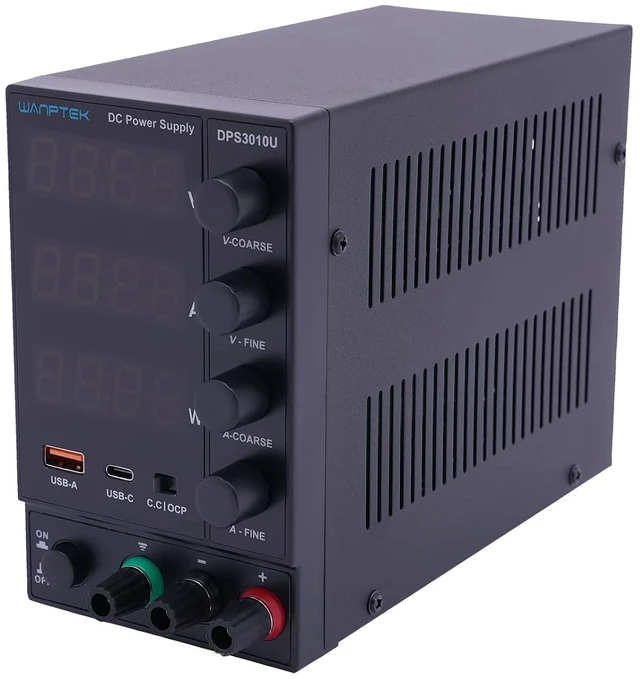

DC Power Supply Variable Adjustable Switching Bench, Power Supply Precision Variable Digital Voltage 30/60V 5/10A (DPS3010U)
- DPS series products are a three-window four-bit high-precision switching DC regulated power supply , which can display voltage , current and power at the same time.

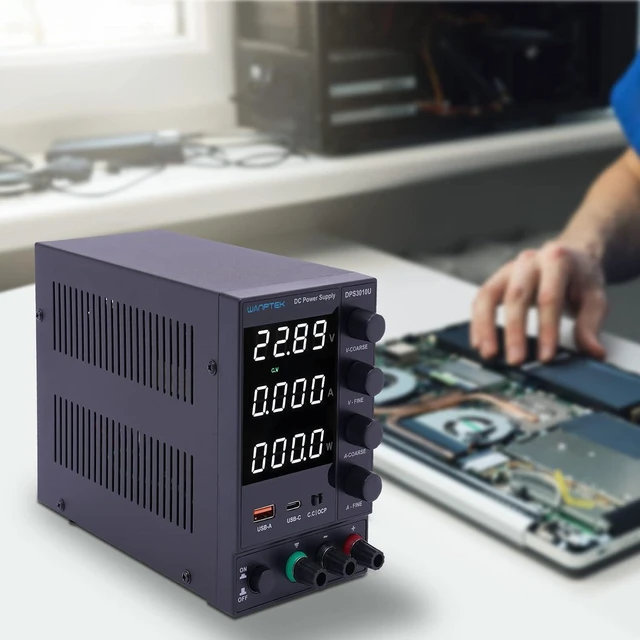

- Products are widely used in mobile phone maintenance , computer maintenance , school and production line use , its output voltage and output current can be continuously adjusted between 0 and nominal value.
- Power supply stability and ripple coefficient are very good, with USB fast charging function and perfect short circuit protection circuit.
- It is small in size , beautiful in design , convenient in operation , and can work long hours at full load It is loved by the vast number of users.
- American stock, can be shipped as soon as possible. If you have any questions, please feel free to contact our professional customer service team, we will do our best to help you solve the problem.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications
Model: DPS3010U
Output voltage: 0-30V for 3010U
Output current: 0-10A for 3010U
Output power: 300W for 3010U
Auxiliary output: USB Quick Charge 18w, Supports multiple quick charging protocols
Input voltage: AC110V, 60HZ
Working TEMP 0-40 ; Humidity : 80 % RH
Storage TEMP -10-70 ; Humidity : <70 % RH
C.V: Voltage stability 0.1 % + 3mv; Load stability0.1 % + 3mv; Ripple noise :20mvrms Effective value
C.CCurrent stability 0.1 % + 3MA Load stability 0. 2 % + 3MA Ripple noise : 5mArms Effective value
Protection modeCurrent limiting protection / short circuit alarm stop output and self-recovery

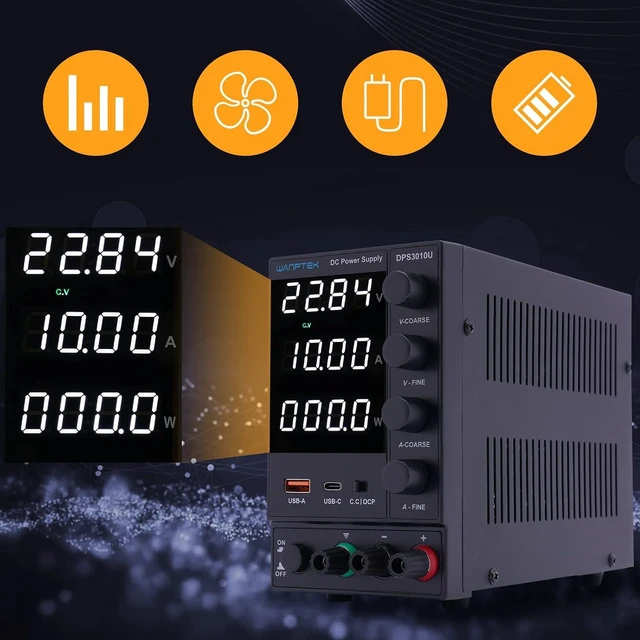

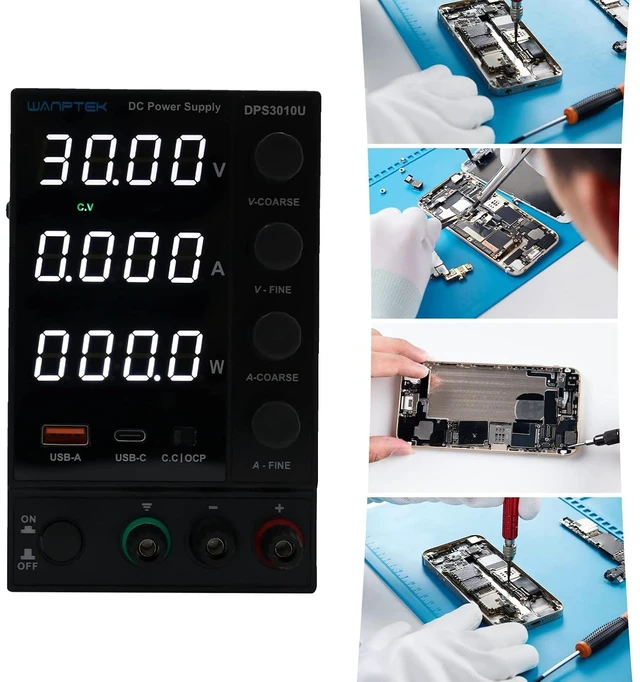

Display: Four-digit digital tube , three-window display
Accuracy : 0 . 5 % + 3digit
Resolution :Voltage 0.01V; current 0.001A

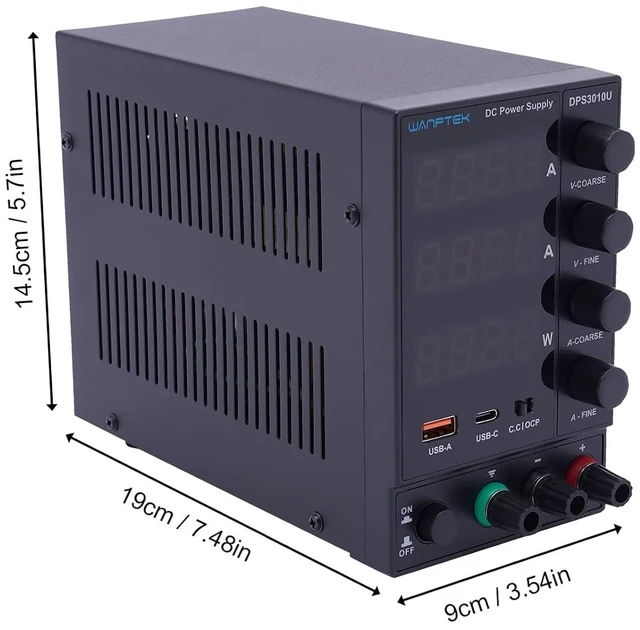

Product size: L225mm x W90mm x H145mm
Weight: 1.8kg
Fuse: 2A for DPS305U/3A forDPS3010U/3A forDPS605U
Voltage Regulation
1. Adjust the voltage roughly to the required voltage value , the fine-tune the knob to the required specific voltage value
2. In general , the current knob can be adjusted to the maximum , and then the load can be connected for use
Current regulation
When the user needs to adjust the limiting current output
1. firstly , adjust the voltage to about 5-10V , then short-circuit the positive and negative terminals with wires ( short-circuit alarm needs to be set to C C position )
2. Adjust the current to roughly adjust the knob to the required current value , and then fine-tune the knob to the required specific current value
3. After disconnecting the short-circuit conductor and adjusting the required voltage by voltage regulation " method , the connection load can be used
Packing List
1 x whole machine
1x Power cord
1x Output Load Line
1x Instructions&nbs
Model: DPS3010U
Output voltage: 0-30V for 3010U
Output current: 0-10A for 3010U
Output power: 300W for 3010U
Auxiliary output: USB Quick Charge 18w, Supports multiple quick charging protocols
Input voltage: AC110V, 60HZ
Working TEMP 0-40 ; Humidity : 80 % RH
Storage TEMP -10-70 ; Humidity : <70 % RH
C.V: Voltage stability 0.1 % + 3mv; Load stability0.1 % + 3mv; Ripple noise :20mvrms Effective value
C.CCurrent stability 0.1 % + 3MA Load stability 0. 2 % + 3MA Ripple noise : 5mArms Effective value
Protection modeCurrent limiting protection / short circuit alarm stop output and self-recovery
Display: Four-digit digital tube , three-window display
Accuracy : 0 . 5 % + 3digit
Resolution :Voltage 0.01V; current 0.001A
Product size: L225mm x W90mm x H145mm
Weight: 1.8kg
Fuse: 2A for DPS305U/3A forDPS3010U/3A forDPS605U
Voltage Regulation
1. Adjust the voltage roughly to the required voltage value , the fine-tune the knob to the required specific voltage value
2. In general , the current knob can be adjusted to the maximum , and then the load can be connected for use
Current regulation
When the user needs to adjust the limiting current output
1. firstly , adjust the voltage to about 5-10V , then short-circuit the positive and negative terminals with wires ( short-circuit alarm needs to be set to C C position )
2. Adjust the current to roughly adjust the knob to the required current value , and then fine-tune the knob to the required specific current value
3. After disconnecting the short-circuit conductor and adjusting the required voltage by voltage regulation " method , the connection load can be used
Packing List
1 x whole machine
1x Power cord
1x Output Load Line
1x Instructions&nbs
