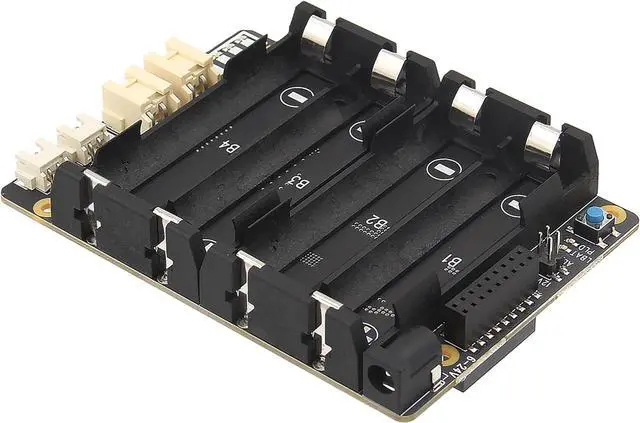

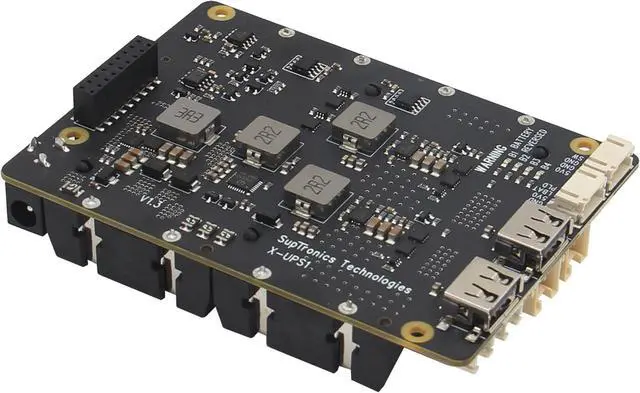

Geekworm X-UPS1 12V/5V Dual Output Universal SBC Stackable Uninterruptible Power Supply UPS Shield with Acrylic Plate Compatible with Raspberry Pi/Orange Pi/Jetson Nano/Rock Pi/Tinker Board
- Compatibility: Compatible with most Single Board Computers (SBC) that uses 12Vdc or 5Vdc, such as Orange Pi 5/5B/4B, Raspberry Pi 5/4B/3B+/3B, Jetson Nano, Jetson Orin Nano, Jetson AGX Orin,Tinker Board, Rock Pi, Arduino etc

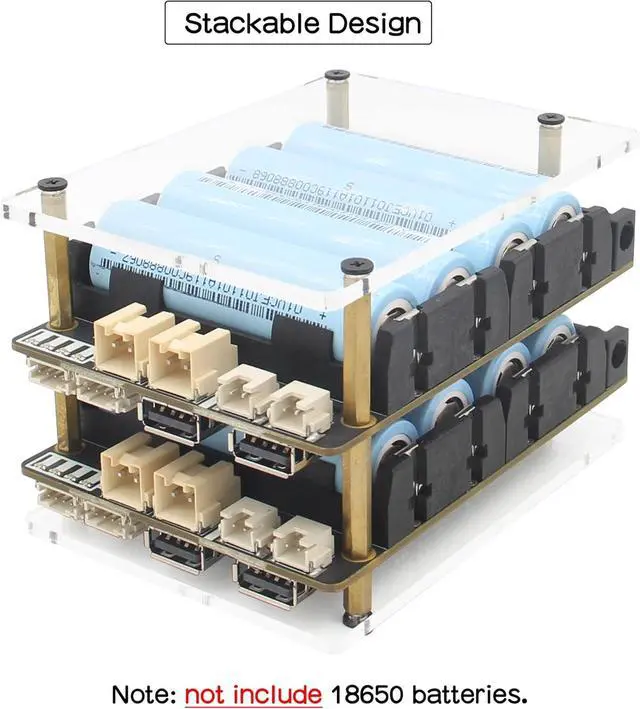

- Stackable Design: X-UPS1 can be stacked to increase output current and battery life, each board provides max 3A power backup; Stack several X-UPS1 to provide long-lasting and higher output power for 24/7
- Specifications: Power input (Single board) : 6-18Vdc ±5%, 3A; UPS output voltage : 12Vdc ±5%, 5.1Vdc ±5% UPS output current (Single boards) : Max 3A; UPS charging current (Single board) : 2.3~3.2A
- Multi Function: Wide power input 6-18V;AC power loss or power adapter failure detection;Low voltage detection; Auto power on; Protection of battery cell reverse connection

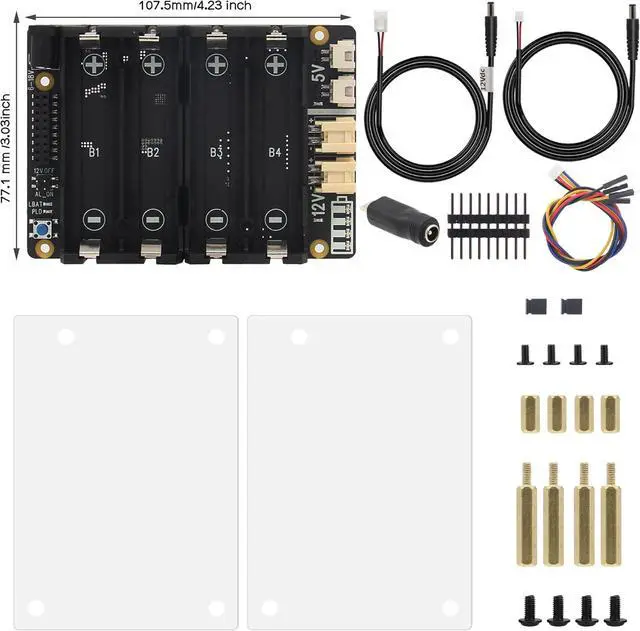

- Packing List: 1 x X-UPS1 Expansion Board(not include battery); 1 x 4Pin PH2.0 to dupont cable; 1 x VH3.96 to DC5525 Cable; 1 x XH2.54 to DC5521 Cable; 1 x GPIO Header; 1 x Screws Pack
- Power Outpu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Important Notes:
All power input are connected together via the 18-pin female header, output current is subject to the quantity of boards.You can use same one board to turn on/off all stackable boards. (be noted that which board you press the button to turn on, also must press the same board button to turn off.)Only one AL_ON jumper caps be shorted to enable Always Power On when stacked multiple X-UPS1 shields.MUST ALL 12 OFF jumper caps be shorted to disable 12V output when stacked multiple X-UPS1 shields. The batteries is not included in the packing list!!!
Overview
The X-UPS1 is an universal stackable uninterruptible power supply (UPS) shield for most Single Board Computers (SBC) that uses 12Vdc or 5Vdc power input. The UPS ensures that in event of power interruption, a battery or any other power source will intervene without any effect on your board.
The convenient stackable design allows you to connect several UPS modules on your boards to provide long-lasting & higher output power for even the most demanding SBC set ups that have constant power connections 24 hours a day, seven days a week.
User Manual: wiki.geekworm.com/X-UPS1
For use with
Most Single Board Computers (SBC) that uses 12Vdc or 5Vdc,
SBC Example:Orange Pi(Orange Pi 5/5B) / Jetson Nano /Jetson Orin Nano/Jetson AGX Orin/ Raspberry Pi (Raspberry Pi 5/4/3B+/3B) / Tinker Board / Rock Pi / Arduino / Libre Computer / Lattepanda etc
Power Output
Provides dual 12Vdc & 5Vdc or single 5Vdc outputEach board provides max 12V/3A or 5V/3A power backupCan be stacked to increase output current and battery lifeTotal output current could be 3A multiplied by the quantity of X-UPS1 boardsReverse Current ProtectionIntegrate Advanced Power MOSFET with Equivalent of 7m RDS(ON) to reduce power loss
Specifications
Power input (Single board) : 6-18Vdc ±5%, 3AUPS output voltage : 12Vdc ±5%, 5.1Vdc ±5%UPS output current (Single boards) : Max 3AUPS output current (Stackable boards) : 3A x No. of the boardsUPS charging current (Single board) : 2.3~3.2ATerminal Battery Voltage : 4.24VBattery Recharge Threshold : 4.1VBattery low detection: 3V
Power Control
Onboard push button to control power on /off (Press ON, Hold the button pressed at least 3s OFF )Onboard LEDs shows the status of power outputAC power loss or power adapter failure detection (LED and 3.3V level output)Jumper setting to enable Auto power on when power applied or restoredJumper setting to disable 12V outputUltralow standby power consumption to maximize battery lifeAdvanced system powerpath management avoids batteries frequent charging and discharging

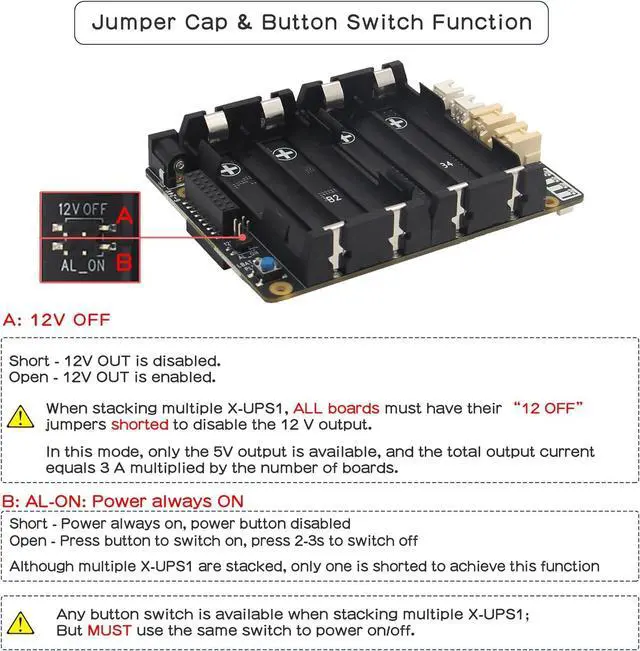

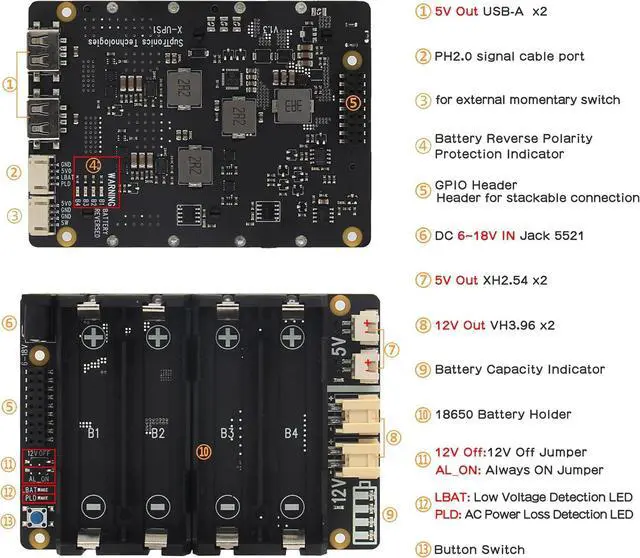

Jumper Cap and Button Switch Function Application
All power input are connected together via the 18-pin female header, output current is subject to the quantity of boards.You can use same one board to turn on/off all stackable boards. (be noted that which board you press the button to turn on, also must press the same board button to turn off.)Only one AL_ON jumper caps be shorted to enable Always Power On when stacked multiple X-UPS1 shields.MUST ALL 12 OFF jumper caps be shorted to disable 12V output when stacked multiple X-UPS1 shields. The batteries is not included in the packing list!!!
Overview
The X-UPS1 is an universal stackable uninterruptible power supply (UPS) shield for most Single Board Computers (SBC) that uses 12Vdc or 5Vdc power input. The UPS ensures that in event of power interruption, a battery or any other power source will intervene without any effect on your board.
The convenient stackable design allows you to connect several UPS modules on your boards to provide long-lasting & higher output power for even the most demanding SBC set ups that have constant power connections 24 hours a day, seven days a week.
User Manual: wiki.geekworm.com/X-UPS1
For use with
Most Single Board Computers (SBC) that uses 12Vdc or 5Vdc,
SBC Example:Orange Pi(Orange Pi 5/5B) / Jetson Nano /Jetson Orin Nano/Jetson AGX Orin/ Raspberry Pi (Raspberry Pi 5/4/3B+/3B) / Tinker Board / Rock Pi / Arduino / Libre Computer / Lattepanda etc
Power Output
Provides dual 12Vdc & 5Vdc or single 5Vdc outputEach board provides max 12V/3A or 5V/3A power backupCan be stacked to increase output current and battery lifeTotal output current could be 3A multiplied by the quantity of X-UPS1 boardsReverse Current ProtectionIntegrate Advanced Power MOSFET with Equivalent of 7m RDS(ON) to reduce power loss
Specifications
Power input (Single board) : 6-18Vdc ±5%, 3AUPS output voltage : 12Vdc ±5%, 5.1Vdc ±5%UPS output current (Single boards) : Max 3AUPS output current (Stackable boards) : 3A x No. of the boardsUPS charging current (Single board) : 2.3~3.2ATerminal Battery Voltage : 4.24VBattery Recharge Threshold : 4.1VBattery low detection: 3V
Power Control
Onboard push button to control power on /off (Press ON, Hold the button pressed at least 3s OFF )Onboard LEDs shows the status of power outputAC power loss or power adapter failure detection (LED and 3.3V level output)Jumper setting to enable Auto power on when power applied or restoredJumper setting to disable 12V outputUltralow standby power consumption to maximize battery lifeAdvanced system powerpath management avoids batteries frequent charging and discharging
Jumper Cap and Button Switch Function Application
