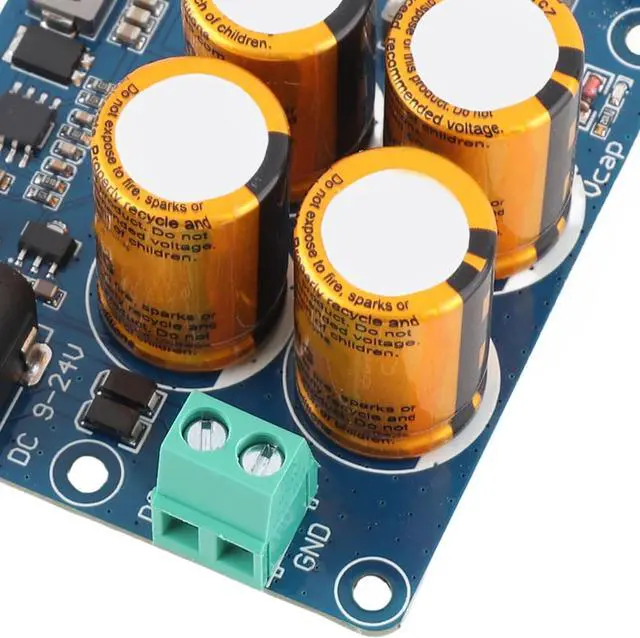

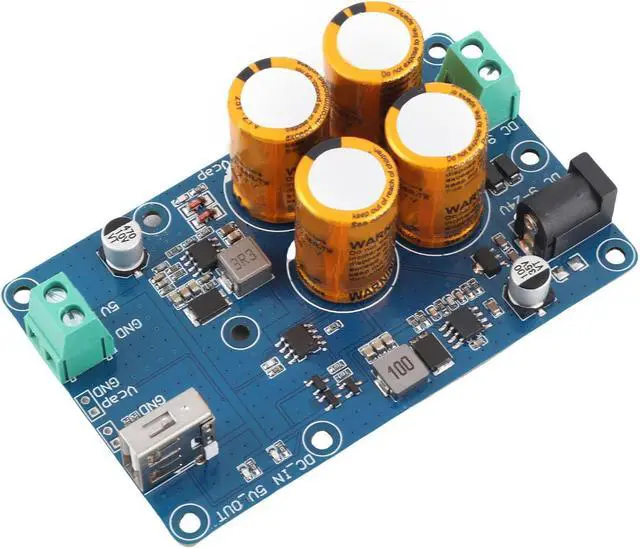

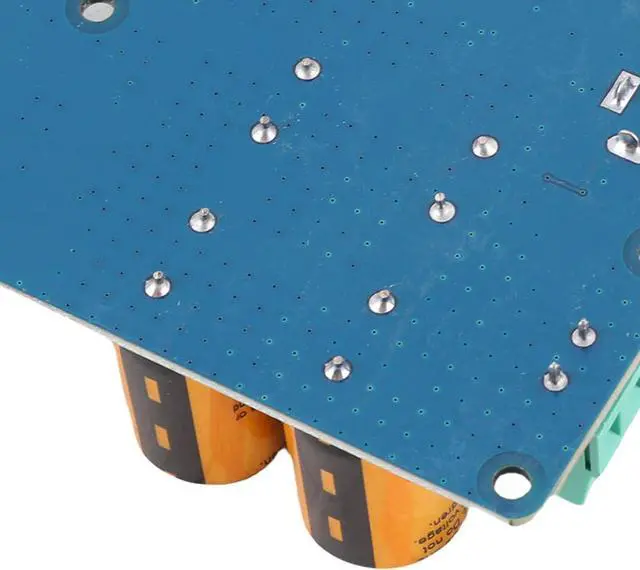

Super Capacitor UPS Power Supply for RPI with 10-60s Power Down Endurance Data Save Plus Compact Size and Lightweight Design (4S)

[Efficient Power Switching] Quickly switches to super capacitor discharge to prevent data loss during unexpected power outages with the 5v3a output.

[Convenient Indicators] Equipped with power indicator lights - green for external power source connection, red for 5v output, and varying brightness for capacitor voltage levels.

[Easy Installation] Suitable for a wide range of applications, this ups has a flexible power input (9-24v dc) and output (5v dc) options for various setups.

[Versatile Design] Compact and lightweight, the ups features a 90x56mm size with a 3.5mm locating hole for easy installation and connection.

[High Reliability Scenes] This super capacitor ups ensures continuous power supply when the external power source fails, providing a power down endurance of 10-60 seconds for on-site data storage.



Spec:



Item Type: Super Capacitor UPS for RPI

Material: PCB

Power Input: 9-24VDC (5.5x2.1mm DC power socket or KF128 terminal)

Power Output: 5VDC (USB 2.0 or KF128 terminal), maximum current 5V3A

Super Capacitor: 25F

Charging Current: limited to 1.4A, about 3min to fully capacitor

Discharge Current: 5V3A (continuous) when connected to external power supply, 5V3A (within 10s) when only super capacitor output

Power Down Detection: 2.54mmx2p, 3V indicates external power source, 0V indicates power loss

Power Indication: DCIN green indicates external power source connection, 5V OUT red indicates 5V output, Vcap green light brightness changes with capacitor voltage. Brightest when capacitor is full, off when capacitor is discharged

Product Size: Approx. 90 x 56mm / 3.5 x 2.2in

Locating Hole: Approx. 3.5mm / 0.14in







Package List:

1 x Super Capacitor UPS



How To Use:

Insert external power supply to output 5V and the super capacitor at the same time. The higher the voltage of the
