DWEII 10PCS Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB for DIY Charger (no Welding Version)
- 10PCS ( no welding version) Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB For DIY Charger
- USB is no welding version

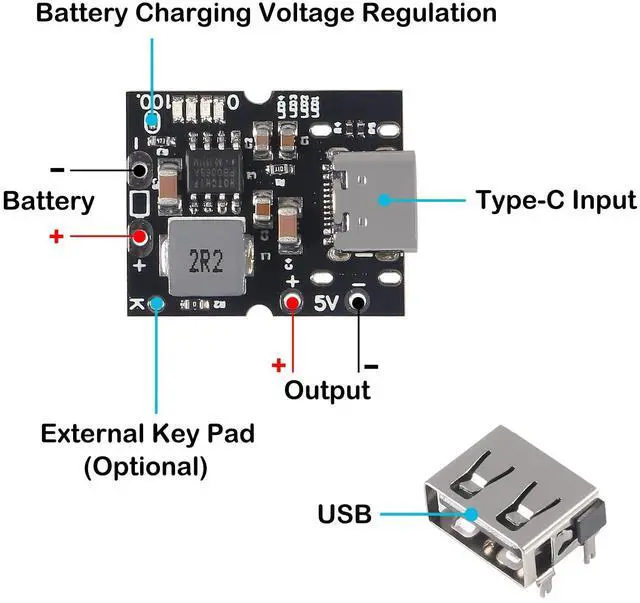

- It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
- When the load current is less than 50mA continuously, the output will be turned off.
- 1; When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated; 2; When the battery voltage drops below 4.1V, the charging cycle starts again. 3; When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Basic parameters
- Input voltage range: 5 ~ 5.5V
- Charging cut-off voltage: (4.2v/4.35v) ± 0.5%
- Charging current: 2.4a ± 5%
- Boost output voltage: 5V ~ 5.15v (line loss compensation)
- Boost output voltage ripple: 100mV
- Boost output current: 2A
- Boost conversion efficiency: 92.5% (3.6V input, 5v2a output)
- Static current at battery end: < 30uA

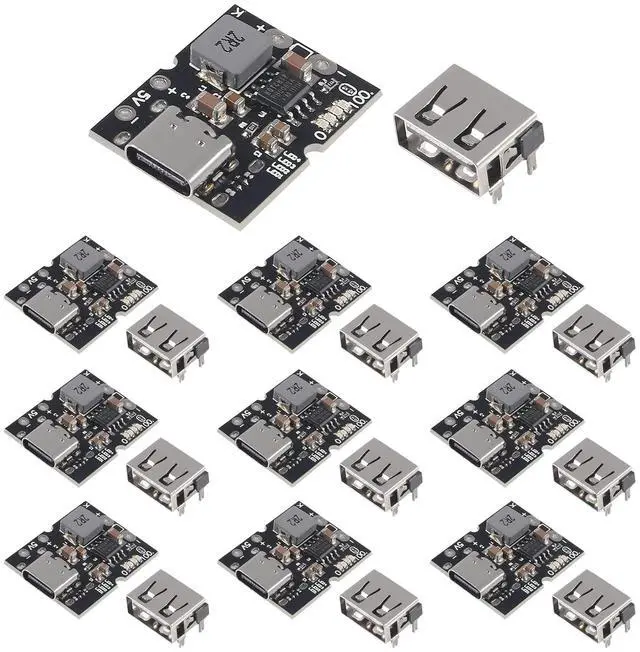

- Package 10PCS USB no welding version
Product information
| Brand | DWEII |
| Power Source | Battery Powered |
| Current Rating | 2 Amps |
| UPC | 701715515956 |
| Manufacturer | DWEII |
