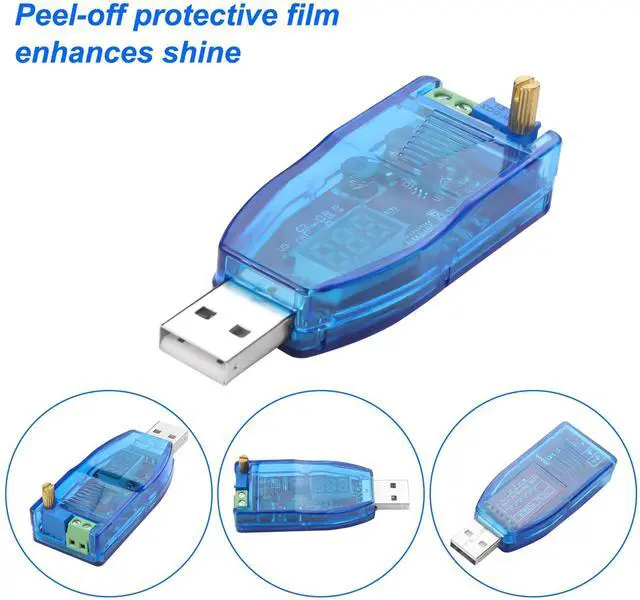

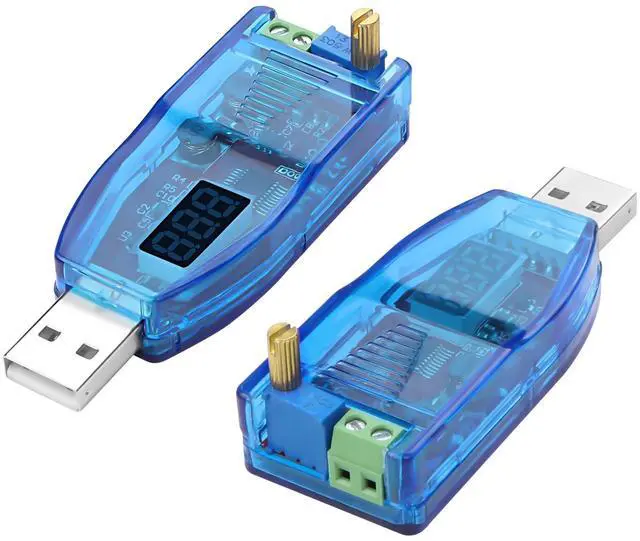

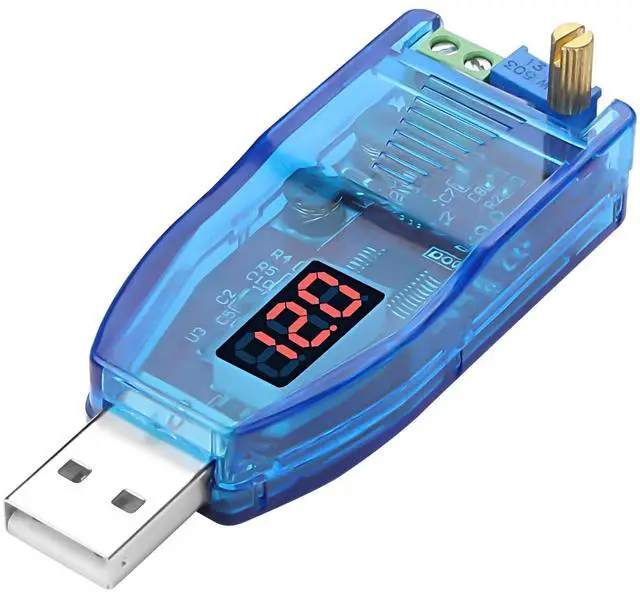

XMSJSIY DC - DC USB Buck Boost Converter Voltage Regulator 5V to 1.8V 3.3V 5V 9V 12V 24V Adjust Step Up Step Down Power Supply Module Max 3W USB Power Supply with LED Voltmeter
- [Voltage Conversion]DC voltage regulator converts 5V voltage to 1.8V 3.3V 5V 9V 12V 24V, with a maximum output power of 3W. It is a low-power adjustable power supply that meets the needs of low-power electronic devices
- [ USB Connection ] USB adjustable power supply module comes with a USB-A port, which can be connected to a phone charger or USB 5V adapter, or to a USB adapter board and Micro USB input; The output port is a 2-pin Solderless terminal, which connects to the output device cable and enables voltage regulation
- [ Potentiometer Adjustment ] Adjustable boost and buck power supply module is equipped with a long handle potentiometer, which can manually adjust the output voltage by rotating clockwise to increase the voltage. Adjust the output device by changing the voltage
- [Real Time Monitoring]LED monitor displays the output voltage in real-time, with red LED lights that accurately monitor the voltage at different times. It has low power consumption and wide voltage output; Multiple protections such as short circuit, overcurrent and overvoltage protection, and charging backflow prevention

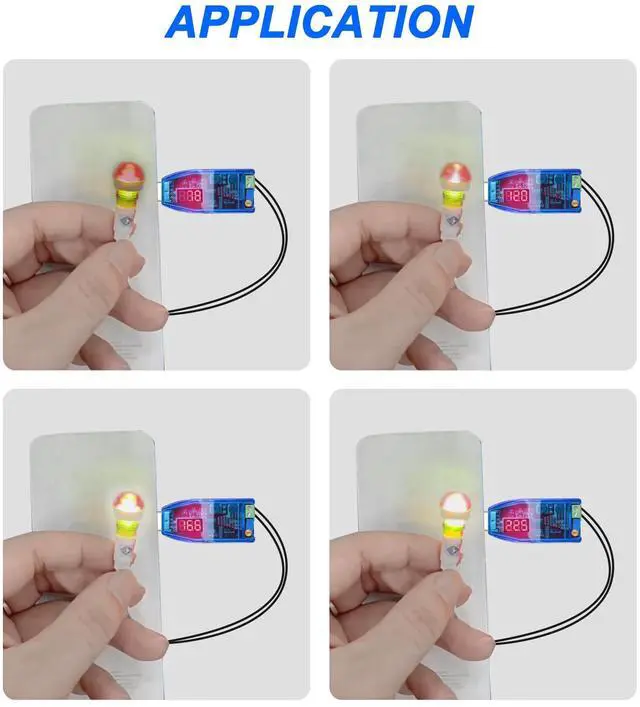

- [ Application ] DC-DC USB adjustable voltage regulator is small in size and light in weight, suitable for instrument debugging and school experiments; It is also used for various low-power electronic projects such as general voltage conversion, automotive/motorcycle battery voltage monitoring, or other voltage measurements
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Voltage Conversion: The USB DC voltage regulator converts 5V voltage to 1.8V, 3.3V, 5V, 9V, 12V, and 24V;
USB connection: The USB power supply is 3W and can be connected through a phone charger or a USB 5V adapter;
Potentiometer: Adopting multi turn precision long handle potentiometer, directly manually adjustable;
Potentiometer knob direction: clockwise - increases voltage; Counterclockwise - decrease voltage;

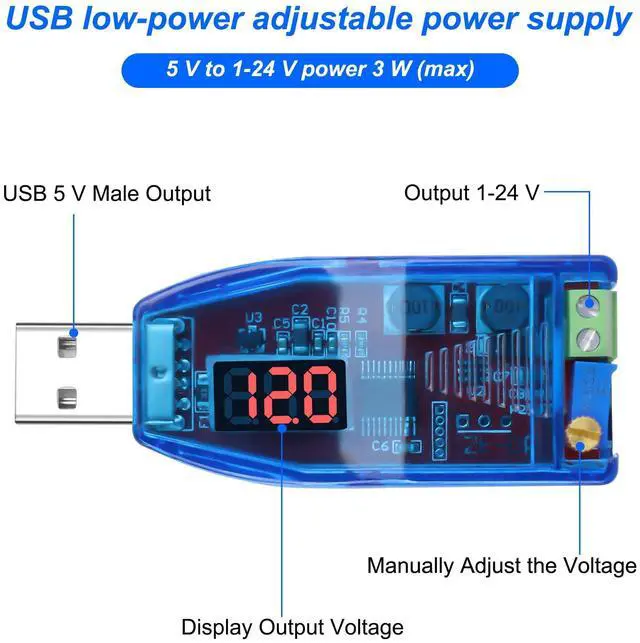

LED screen: LED power supply voltage display, real-time voltage output display, monitoring voltage and power
Specifications:
Project type: USB adjustable power module
Material: ABS
Color: Transparent Blue
Voltage: 5V to 1.8V 3.3V 5V 9V 12V 24V
Input voltage: DC5V
Output voltage: DC1~24V
Output power: 3W (maximum)
Packaging includes: 1PC * USB power module
Product information
| Brand | XMSJSIY |
| Power Source | Corded Electric |
| Mounting Type | PCB Mount |
| Manufacturer | Yingtuyou jiaju |
| Package Dimensions | 5.98 x 3.7 x 0.75 inches; 0.71 ounces |
| Item model number | SF20251004B0DF7PZ4TT_B0DF7PZ4TT_1_4ylS00 |
| Date First Available | August 26, 2024 |
| #806 in Power Converters | #806 in Power Converters |
