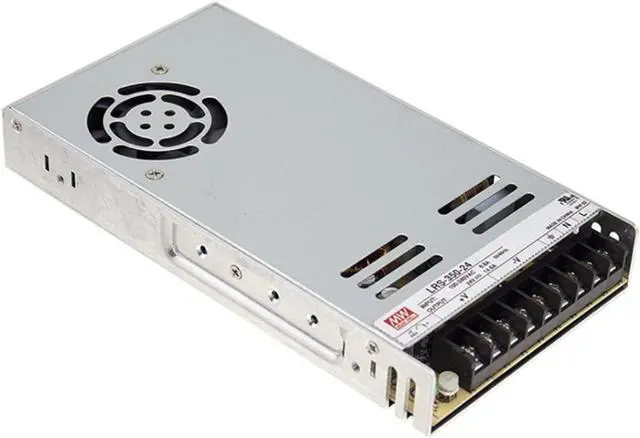

MEAN WELL original LRS-350-3.3 3.3V 60A meanwell LRS-350 3.3V 198W Single Output Switching Power Supply
- Output Voltage: 3.3V
- Approx. Wattage: 200W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty

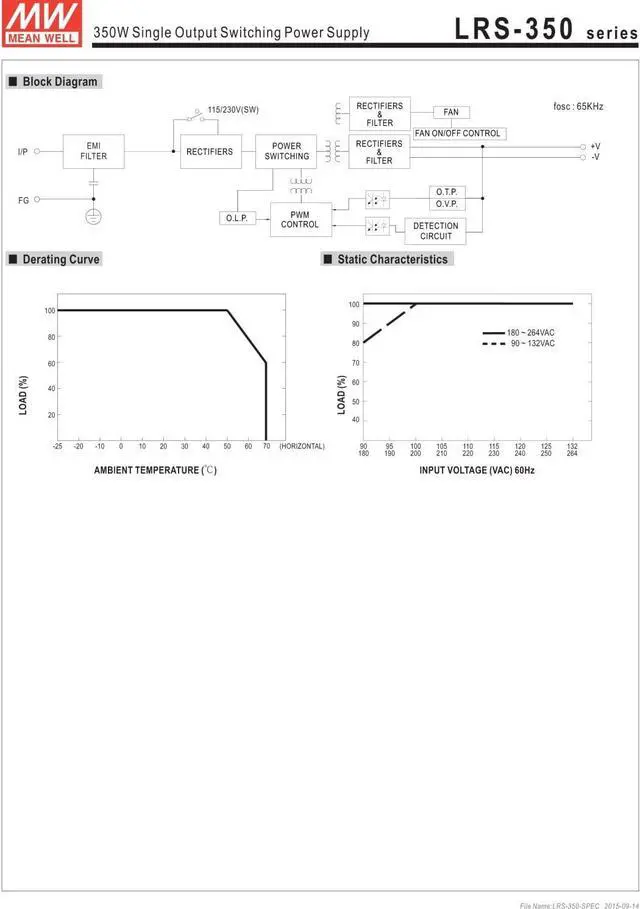

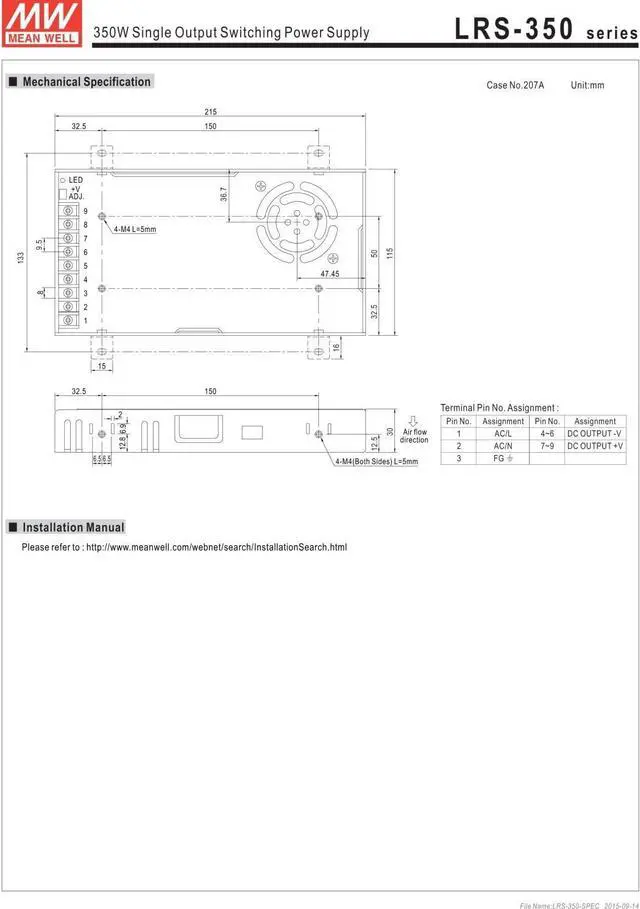

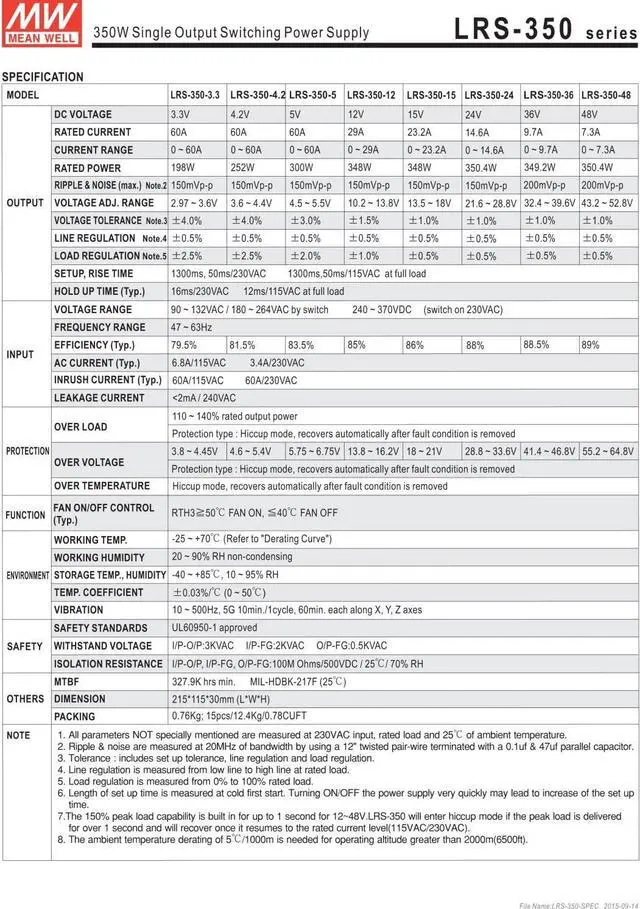

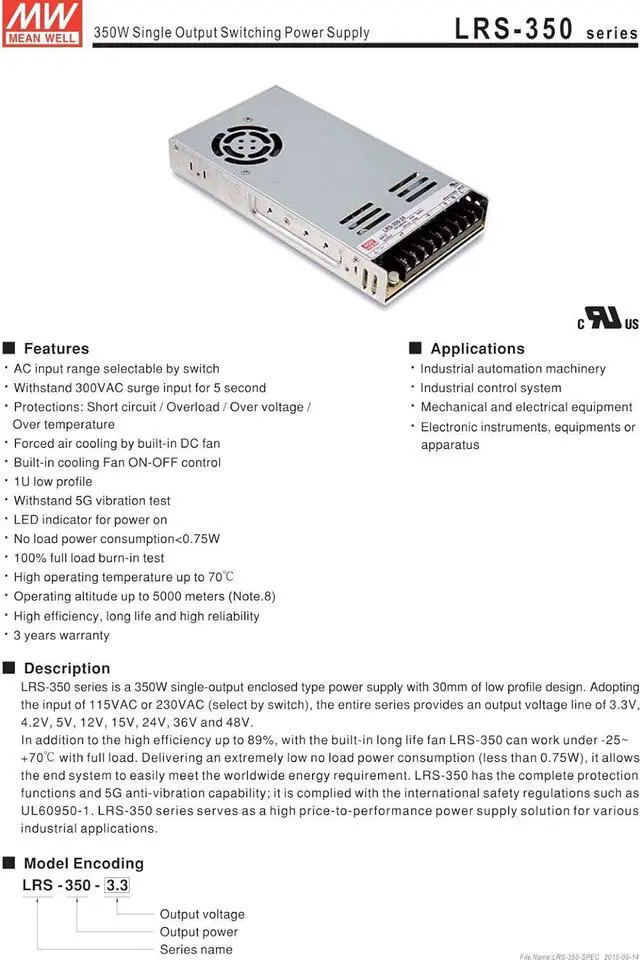

General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:115 / 230VAC by switch
AC inrush current (max.):Cold start, 60A at 230VAC
DC adjustment range:±10% by potentiometer
Overload protection Range:110%~140%
Overload protection Type:Hiccup mode, auto-recovery
Over voltage protection Range:115%~145% rated output voltage
Over voltage protection Type:Shut down o/p voltage, re-power on to recover
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-25~+70°C (refer to output derating curve)
Safety standards:UL60950-1 approved
EMC standards:Design refer to EN55022 class A
Connection:9P/9.5mm pitch terminal block
Dimension (LxWxH):215x 115x 30
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:115 / 230VAC by switch
AC inrush current (max.):Cold start, 60A at 230VAC
DC adjustment range:±10% by potentiometer
Overload protection Range:110%~140%
Overload protection Type:Hiccup mode, auto-recovery
Over voltage protection Range:115%~145% rated output voltage
Over voltage protection Type:Shut down o/p voltage, re-power on to recover
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-25~+70°C (refer to output derating curve)
Safety standards:UL60950-1 approved
EMC standards:Design refer to EN55022 class A
Connection:9P/9.5mm pitch terminal block
Dimension (LxWxH):215x 115x 30
