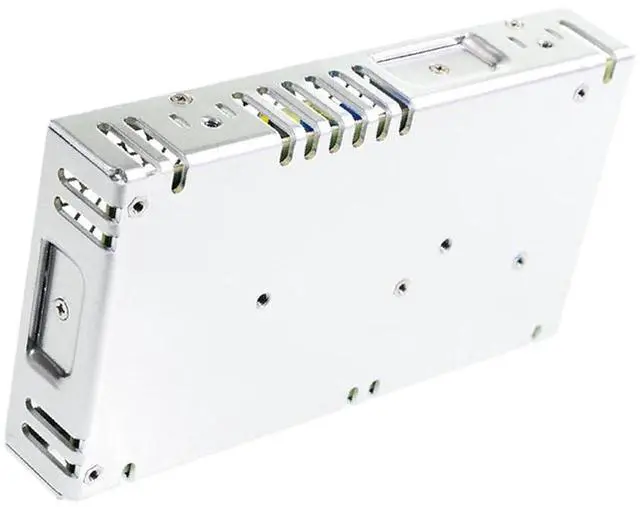

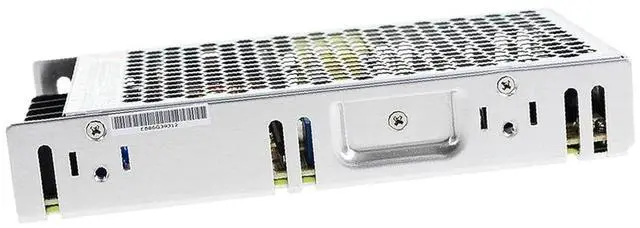

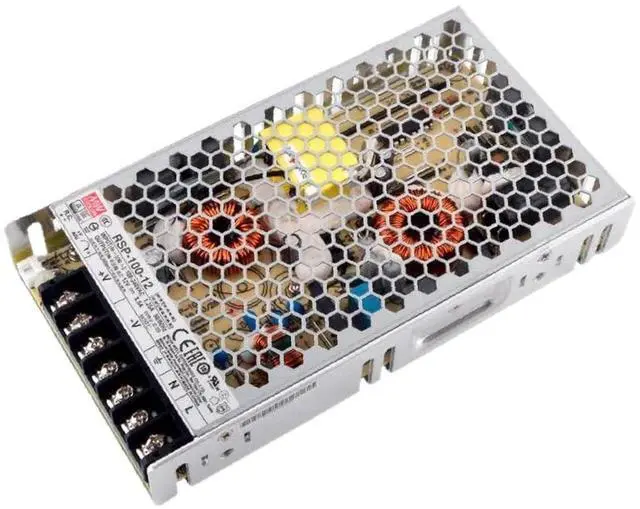

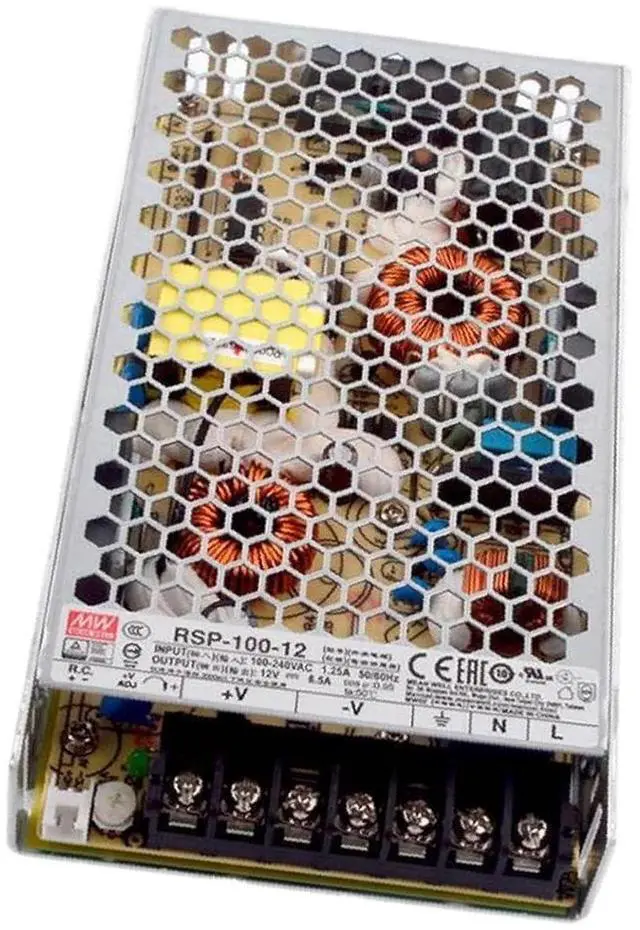

Meanwell RSP-100-12 Power Supply - 100W 12V 8.5A - Low Profile
- Output Voltage: 12V
- Approx. Wattage: 100W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Universal AC input / Full range
Built-in active PFC function
Built-in constant current limiting circuit
Protections:Short circuit/ Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
C input voltage range:85~264VAC ; 120~370VDC
AC inrush current (max.):Cold start, 30A at 230VAC
Overload protection:105%~135% Constant current limiting, auto-recovery
Over temperature protection:Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time:600ms,30ms,16ms at full load
Withstand voltage:I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-30~+70ºC(refer to output derating curve)
Safety standards:UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards:EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Connection:7P/9.5mm pitch terminal block
Dimension (LxWxH) (mm):179x99x 30mm
Packing:24pcs / 14.5kg
Universal AC input / Full range
Built-in active PFC function
Built-in constant current limiting circuit
Protections:Short circuit/ Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
C input voltage range:85~264VAC ; 120~370VDC
AC inrush current (max.):Cold start, 30A at 230VAC
Overload protection:105%~135% Constant current limiting, auto-recovery
Over temperature protection:Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time:600ms,30ms,16ms at full load
Withstand voltage:I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-30~+70ºC(refer to output derating curve)
Safety standards:UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards:EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Connection:7P/9.5mm pitch terminal block
Dimension (LxWxH) (mm):179x99x 30mm
Packing:24pcs / 14.5kg
