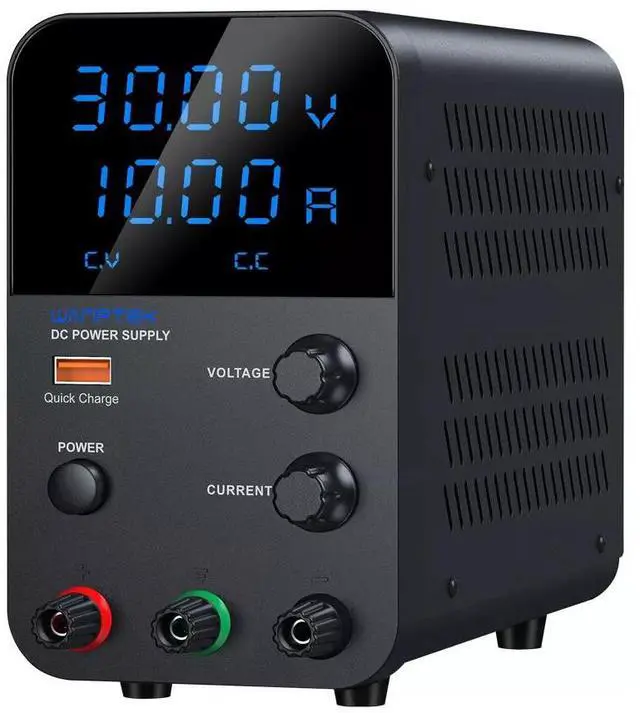

Lab DC 0-30V 0-10A adjustable power supply Bench Switching Variable

Features:

High efficiency and sufficient power

Low ripple, small size and light weight

Voltage and current blue LED display, beautiful

Stable voltage, limited current and simple operation

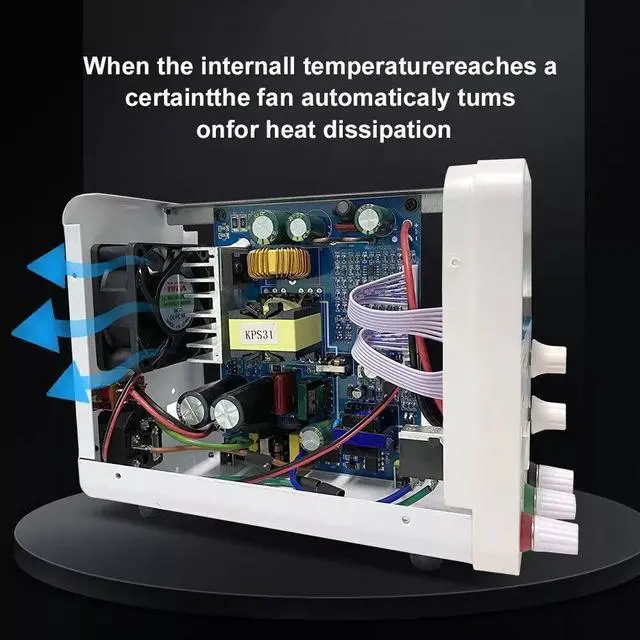

Temperature controlled fan for heat dissipation, low noise and long service life

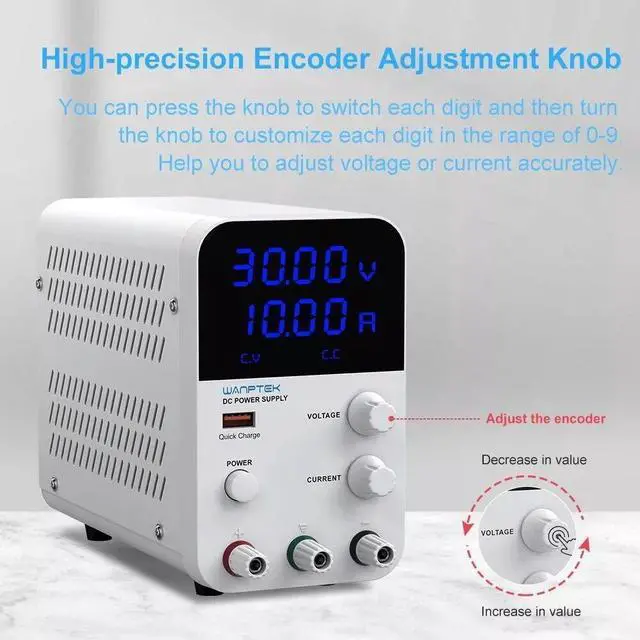

The code potentiometer regulates the voltage and current.



Application field:


1. Production line test.


2. Mobile phone and electrical maintenance.


3. Product aging.


4. Battery charging.


4. Laboratory, scientific research and teaching.


6. Other occasions requiring DC regulated power supply.



Main technical parameters:

Input voltage: AC 230V / 115V ± 10%; 50 / 60Hz.

Output voltage stabilizing value: 0-30v

Output constant current value: 0-10A

Ripple voltage: VPP 1%

Overall efficiency: 89%.

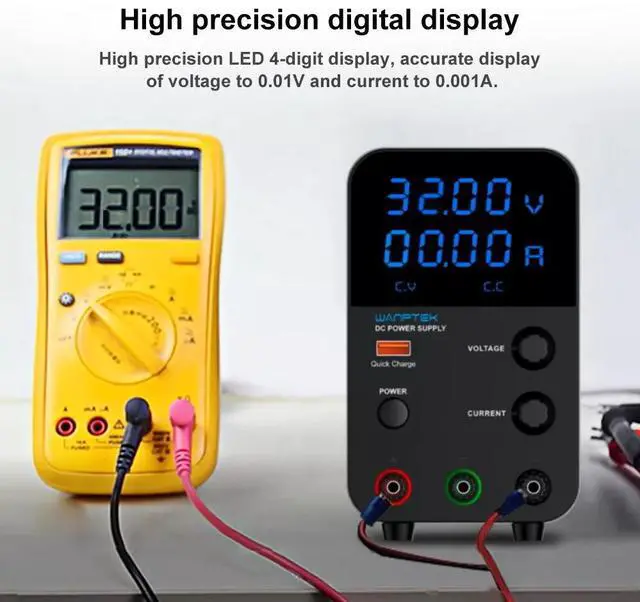

Digital display: four LED Blue digital tube display.

Display resolution: 00.01V / 0.001A.

Display accuracy: ± 0.5 % + 3digits.

Working temperature: (- 10 ~ 40).



Product features:

Net weight: 1.15 kg, gross
weight: 1.5 kg, whole
case: 8 sets / 12.5 kg

Machine size (mm): 90 (W) × 145 (H) × 190 (L)

Package size (mm): 135 (W) × 195 (H) × 265 (L)

Box size (mm): 275 (W) × 405 (H) × 550 (L)

Attached accessories: power cord X1 instruction X1 warranty card certificate X1 output cord x1
