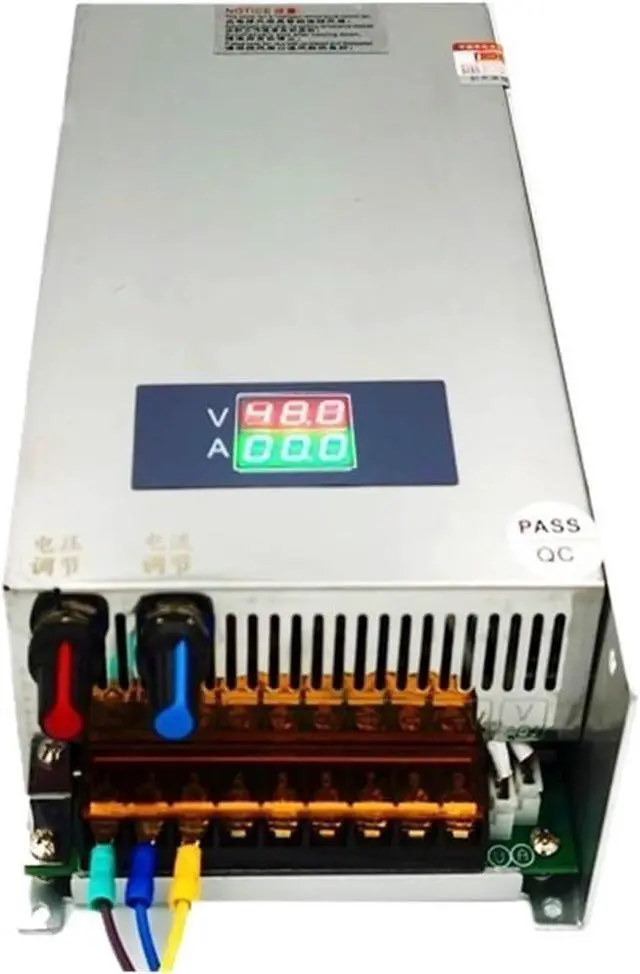

1000W Switching Power Supply 12V 24V 36V 48V 60V 150V 30A 40A 50A 60A 80A 20A CC/CV Adjustable 1000w Display for Computer Lab, LED Strip Light and So on(0-48V 0-21A)
- Using switching power supply technology, the whole machine is small in size, light in weight and high in efficiency, ensuring stable and reliable long-term full-load operation.
- Both the voltage regulation value and the constant current value can be continuously adjusted within the range of (0~100)% of their respective maximum values.
- Digital tube digital display output voltage and current. 3-digit display meter voltage display accuracy: 0.01V below 10V; 0.1V below 100V; 1V above 100V; current display accuracy 0.1A
- Temperature control fan, automatic overheat protection; output overvoltage, overcurrent and short circuit protection; boot delay soft start to avoid output voltage overshoot when booting
- Widely used in power DC screen system, industrial control, communication, scientific research, battery charging and other equipment.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Working temperature (-20~50)OC; Storage temperature: (-40~70)0C;
Relative humidity 90% (40±20C); Atmospheric pressure: (70-106) KPA;

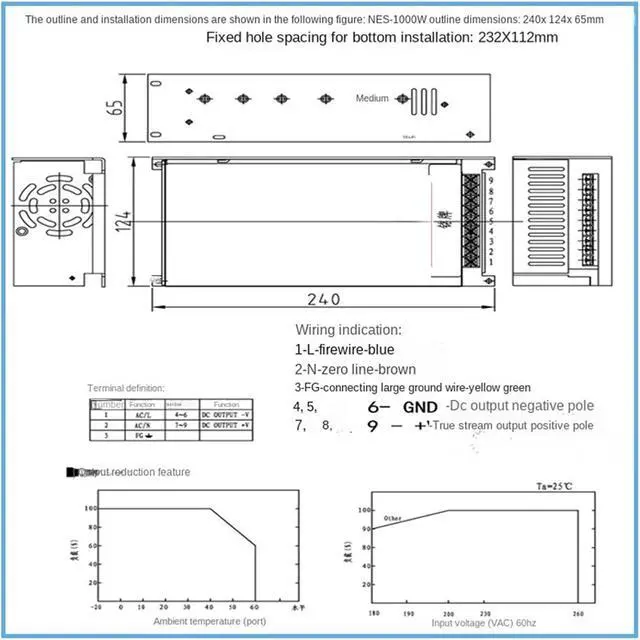

Dimensions: 240mm*124mm*65mm
Overall weight: 1.8KG
Efficiency>85%
Power factor>0.85
<;1%
<;0.1%
<;1%
Protection: input overvoltage, undervoltage: output overvoltage, overcurrent, short circuit: overheating of the whole machine
Overheating protection threshold of the whole machine is 70~75.C
Working temperature (-20~50)OC; Storage temperature: (-40~70)0C;
Relative humidity 90% (40±20C); Atmospheric pressure: (70-106) KPA;
Dimensions: 240mm*124mm*65mm
Overall weight: 1.8KG
Efficiency>85%
Power factor>0.85
<;1%
<;0.1%
<;1%
Protection: input overvoltage, undervoltage: output overvoltage, overcurrent, short circuit: overheating of the whole machine
Overheating protection threshold of the whole machine is 70~75.C
