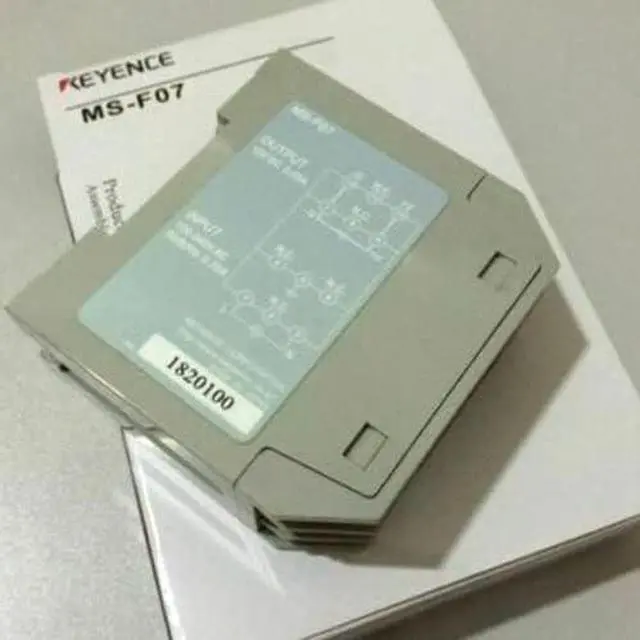

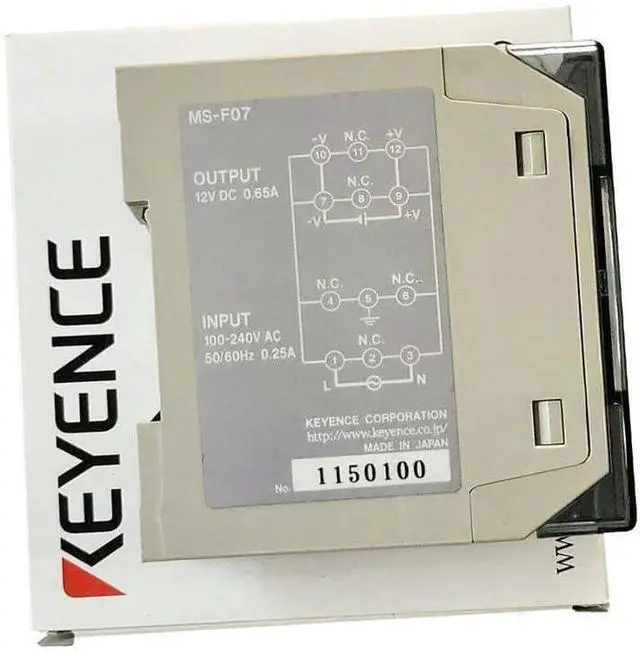

KEYENCE MS-F07 Switching Power Supply Module New

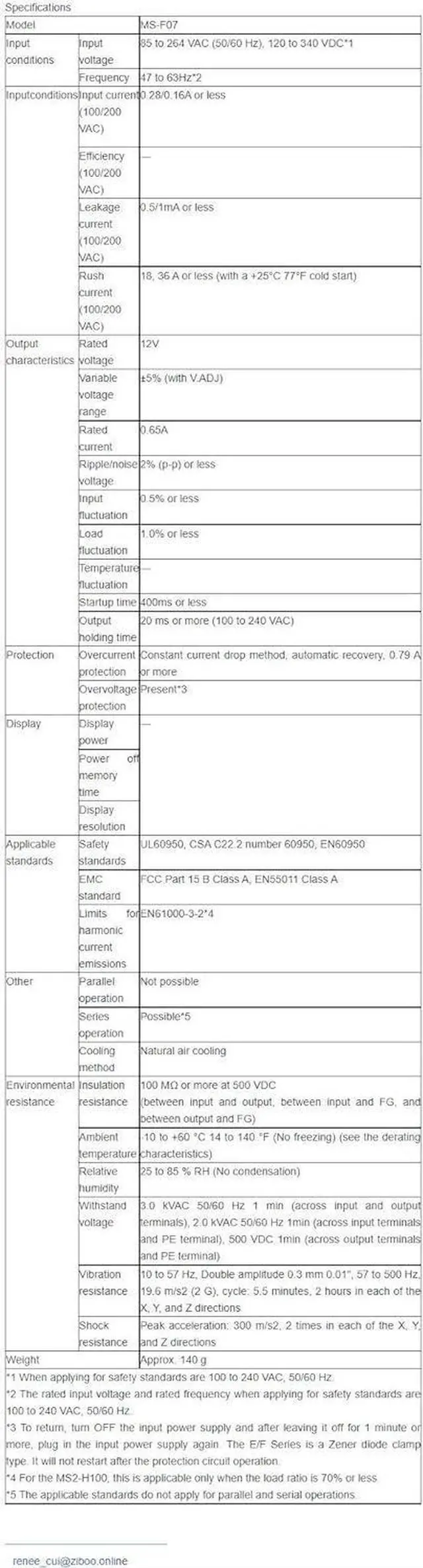

Specifications:
Model: MS-F07
Input conditions:
1. Input voltage: 85 to 264 VAC (50/60 Hz), 120 to 340 VDC*1
2. Frequency: 47 to 63Hz*2
Inputconditions:
1. Input current (100/200 VAC): 0.28/0.16A or less
2. Efficiency (100/200 VAC):
3. Leakage current (100/200 VAC): 0.5/1mA or less
4. Rush current (100/200 VAC): 18, 36 A or less (with a +25°C 77°F cold start)
Output characteristics:
1.Rated voltage: 12V
2.Variable voltage range: ±5% (with V.ADJ)
3.Rated current: 0.65A
4.Ripple/noise voltage: 2% (p-p) or less
5.Input fluctuation: 0.5% or less
6.Load fluctuation: 1.0% or less
7.Temperature fluctuation:
8.Startup time: 400ms or less
Protection:
1. Overcurrent protection: Constant current drop method, automatic recovery, 0.79 A or more
2.Overvoltage protection: Present*3
Applicable standards:
1.Safety standards: UL60950, CSA C22.2 number 60950, EN60950
2.EMC standard: FCC Part 15 B Class A, EN55011 Class A
3.Limits for harmonic current emissions: EN6100
Environmental resistance:
1.Insulation resistance: 100 M or more at 500 VDC (between input and output, between input and FG, and between output and FG)
2.Ambient temperature: -10 to +60 °C 14 to 140 °F (No freezing) (see the derating characteristics)
3.Relative humidity: 25 to 85 % RH (No condensation)
4.Withstand voltage : 3.0 kVAC 50/60 Hz 1 min (across input and output terminals), 2.0 kVAC 50/60 Hz 1min (across input terminals and PE terminal), 500 VDC 1min (across output terminals and PE terminal)
5.Vibration resistance: 10 to 57 Hz, Double amplitude 0.3 mm 0.01", 57 to 500 Hz, 19.6 m/s2 (2 G), cycle: 5.5 minutes, 2 hours in each of the X, Y, and Z directions
Weight: Approx. 140 g
