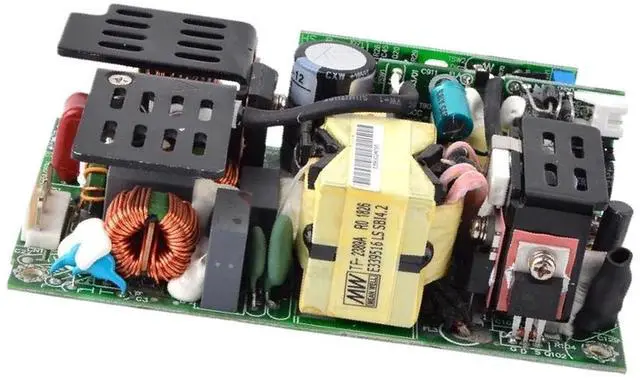

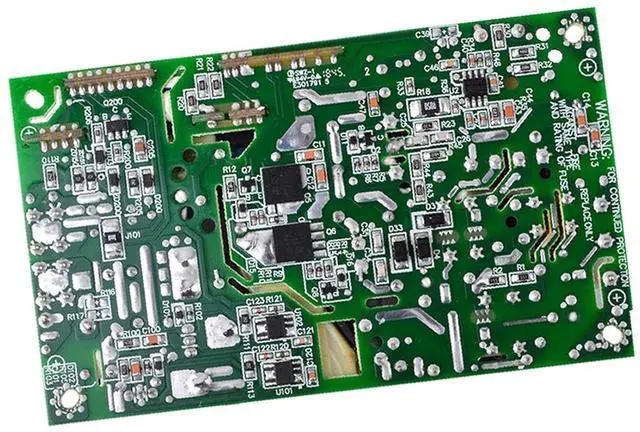

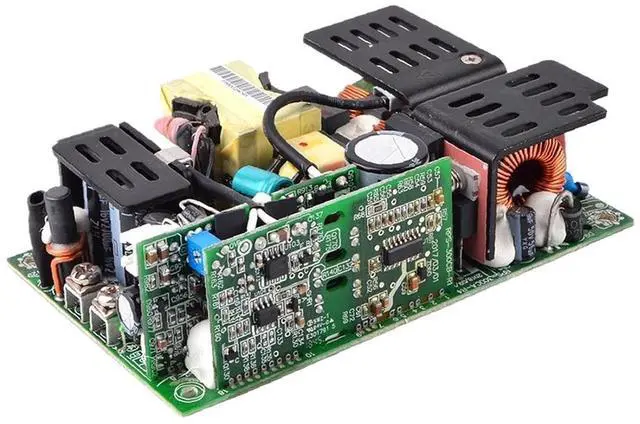

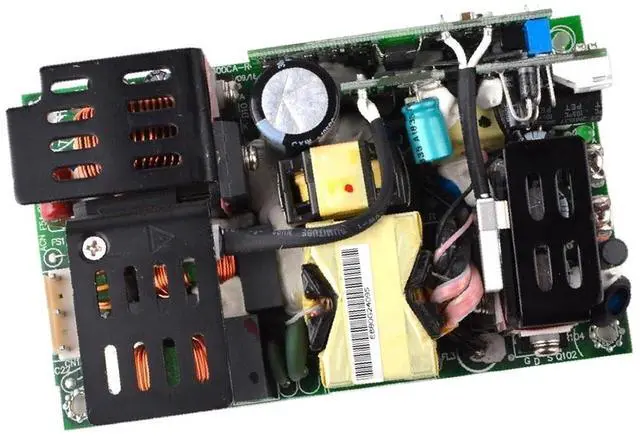

EPP-300-12 Switching Power Supply, 12V 25A 300W, Universal AC Input, PFC, Protections, Auxiliary Output, Compact 5"x3", Forced Air Cooling, Remote Sensing, for Industrial Applications
- Reliable Industrial Power: Universal 90-264VAC input with active PFC, withstands 300VAC surges for 5 seconds. 12V, 25A, 300W output with short circuit, overload, overvoltage and overtemperature protections.
- Compact 5"x3" Size: Space-saving design for various applications. Natural convection cooling up to 200W, forced air cooling at 300W with 20.5CFM fan. Operates at altitudes up to 16,404ft (5000m).
- High Efficiency and Low Idle Consumption: Up to 90% efficiency, <0.5W no-load consumption. Remote sensing for line drop compensation. Voltage OK and Failure signal outputs for monitoring.
- Safety and EMC Compliance: UL/CUL/TUV/CE certified. Meets EN55011, EN55022 Class B conduction, Class A radiation, EN61000-3-2, 3, 4-2, 3, 4, 5, 6, 8, 11, ENV55024, EN60601-1-2 standards.
- Auxiliary Output and Applications: 12V/0.5A auxiliary output, 5V/1A with fan, 5V/0.6A without fan. Suitable for industrial automation, telecommunications, security systems, and IT equipment.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The EPP-300-12 is a compact, high-efficiency 12V, 25A, 300W industrial power supply designed for demanding applications. With a universal 90-264VAC input range, active PFC, and comprehensive protections, this switch mode power supply ensures reliable performance in harsh environments.
Featuring a 5" x 3" x 1.38" size, the EPP-300-12 offers natural convection cooling up to 200W and forced air cooling at 300W. It operates in a wide temperature range of -22°F to +158°F and at altitudes up to 16,404ft. With up to 90% efficiency, <0.5W no-load consumption, remote sensing, and auxiliary outputs, this power supply provides flexibility and energy savings for various industrial applications.
Featuring a 5" x 3" x 1.38" size, the EPP-300-12 offers natural convection cooling up to 200W and forced air cooling at 300W. It operates in a wide temperature range of -22°F to +158°F and at altitudes up to 16,404ft. With up to 90% efficiency, <0.5W no-load consumption, remote sensing, and auxiliary outputs, this power supply provides flexibility and energy savings for various industrial applications.
