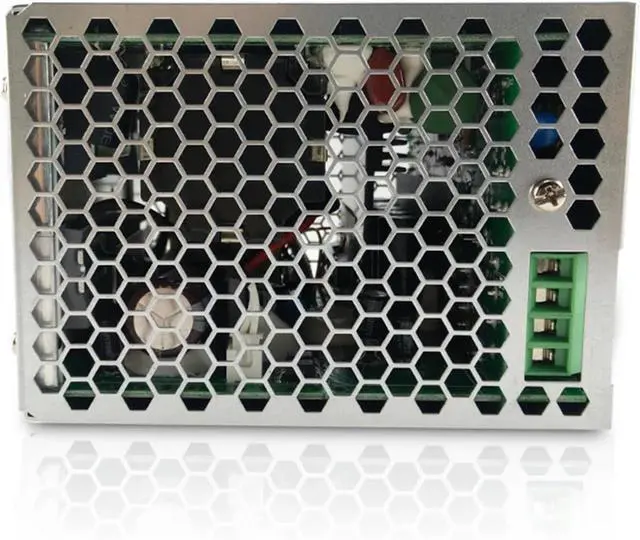

NDR-480-48 480W 48V DIN Rail Mounted Switching Power Supply 110V/220V AC to 48V DC 10A Industrial Transformer

FeaturesUniversal AC input / Full range Protections: Short circuit / Overload / Over voltage/Over temperatureCooling by free air convectionCan be installed on DIN rail TS-35/7.5 or 15UL 508 (industrial control equipment) approvedEN61000-6-2(EN50082-2) industrial immunity level100% full load burn-in testDescriptionNDR-480 is one economical slim 480W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.NDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20C and 70C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make NDR-480 a very competitive power supply solution for industrial applications.
