DC Power Supply, 60V 10A 300W Variable Power Supply, 110V Input Voltage with High Resolution 4-Digits 2.8 inch IPS Display with Multiple Protection

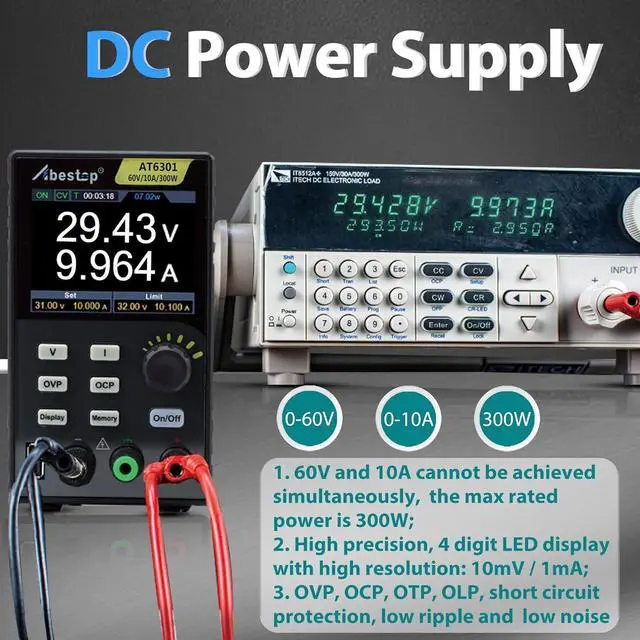

Parameter(AT6301)Output Ranges: 0~60V/0~10A, Output Power: 300W, 60V and 10A cannot be achieved at the same time; USB Port: 9V/1.5A or 5V/2A; 50-60Hz; High resolution: 10mV /1mA; Working Temperature: 0-40; Storage 4 groups of data; 2.8-inch IPS LCD display. USB communication interface, support SCPI

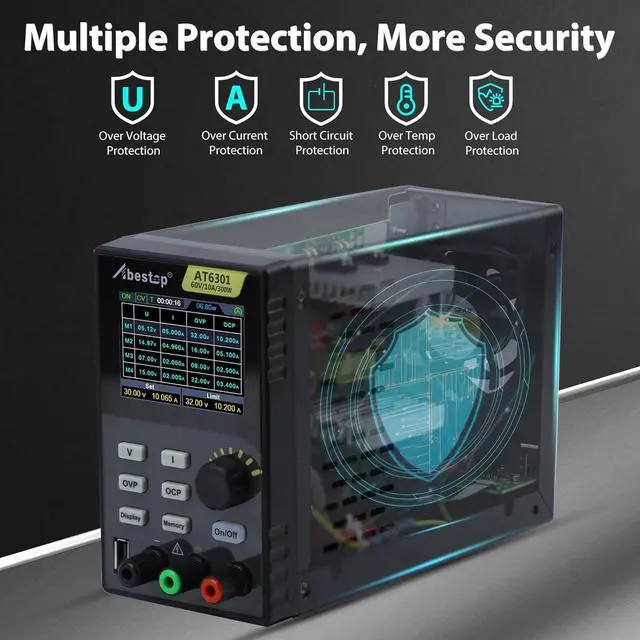

Main FunctionOver voltage/Over current protection; Output voltage and current curve monitoring; Stable output, low ripple and noise; Intelligent temperature-controlled fan cooling, ensures long-term stable output, meeting high-precision test requirements

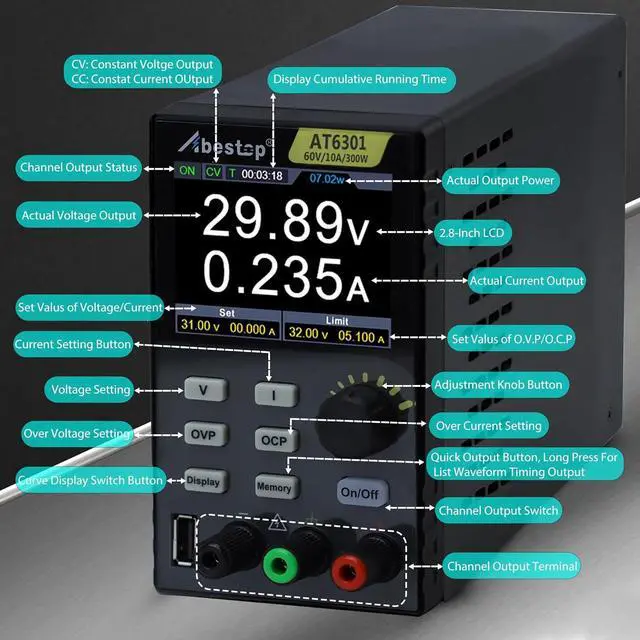

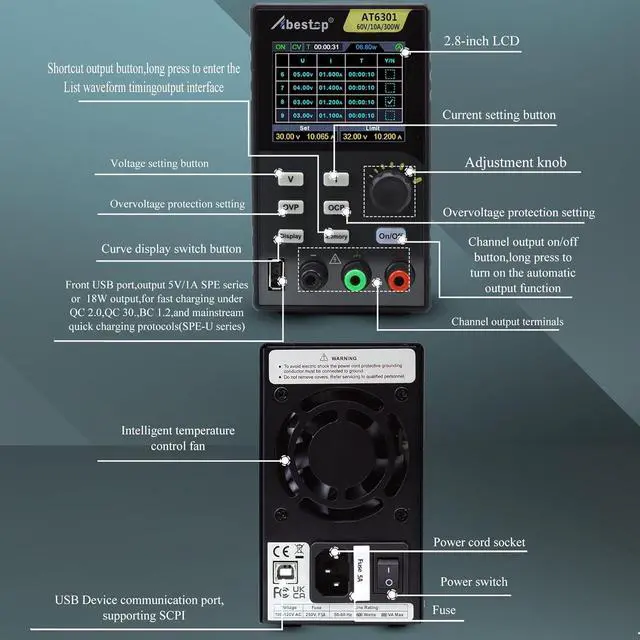

Professional DeviceIndependent output On/Off button control, protect the circuit. Constant power design, wide application range, provides flexible configuration of higher voltage and current within the rated power range

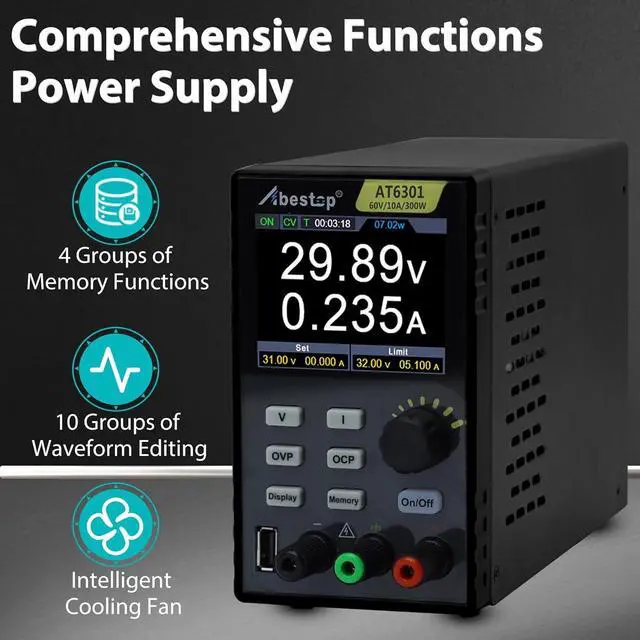

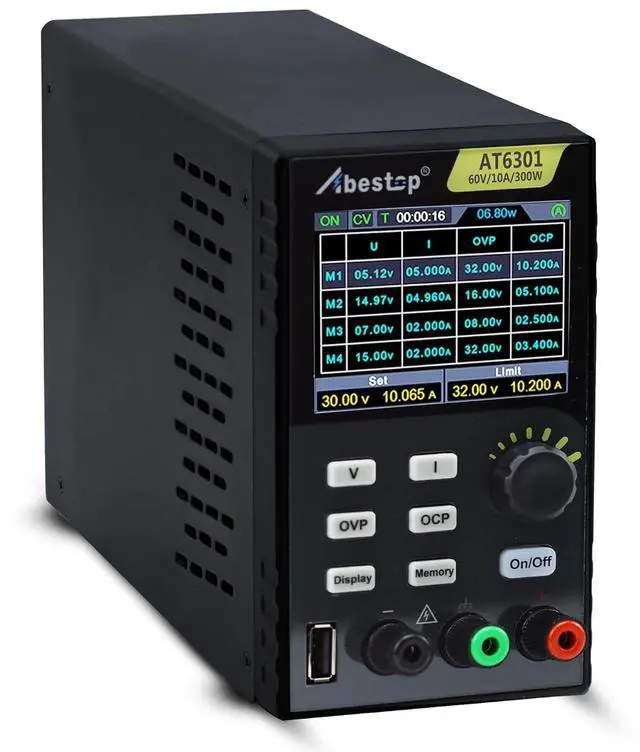

Editable 4 groups of Memory shortcut parameters for quick output(M1 to M4); Setting List waveform output: contains 10 editable points in one waveform, four editable parameters of each point include output voltage, output current, waveform duration and whether the point is selected
Widely ApplicationCompact size(3.2 X 8.9 X 5.6 inch) and lightweight(3.3Ib),easy to carry. DC power supply are widely used in laboratories, school education programs, electrical maintenance, DIY electronics, amateur, lab and industry
