$81.99
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

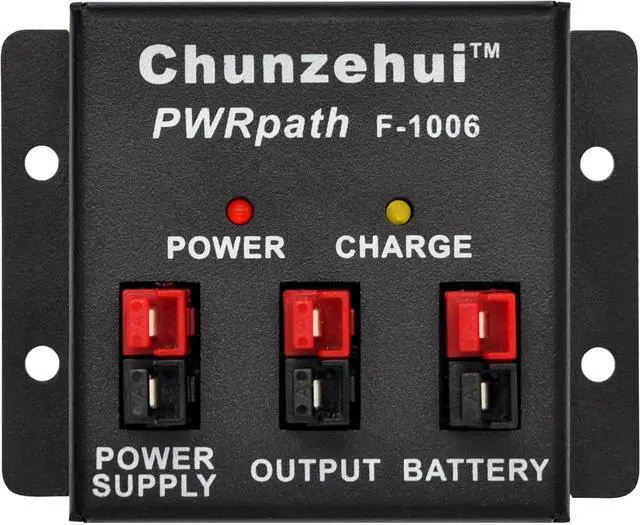

F-1006 Low Loss Power Gate PWRpath Module, PowerPath PWRgate.
- Design based on powerpath controller and low loss MOSFETs (on status resistance 0.0023 ohm), you do not have to add heatsinks even for 30 Amps of continuous working current.
- Operating voltage: DC 5 ~ 28V, Quiescent current: < 2mA (at 13.8V), Max. continuous output current: 30A, Switch circuit: Power MOSFETs "OR-gate" with powerpath controller.
- Standard Power pole connectors.

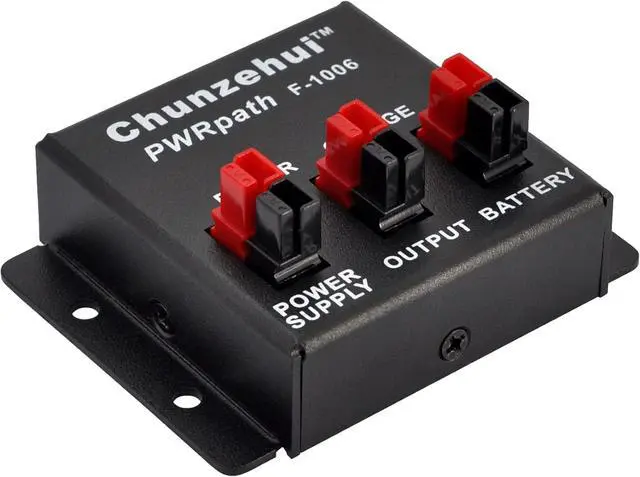

- High quality aluminum enclosure, thickness 1.5mm/0.06". Overall Dimensions(maximum, w/o cables): 80mm x 62mm x 33mm / 3.15" x 2.44" x 1.30"

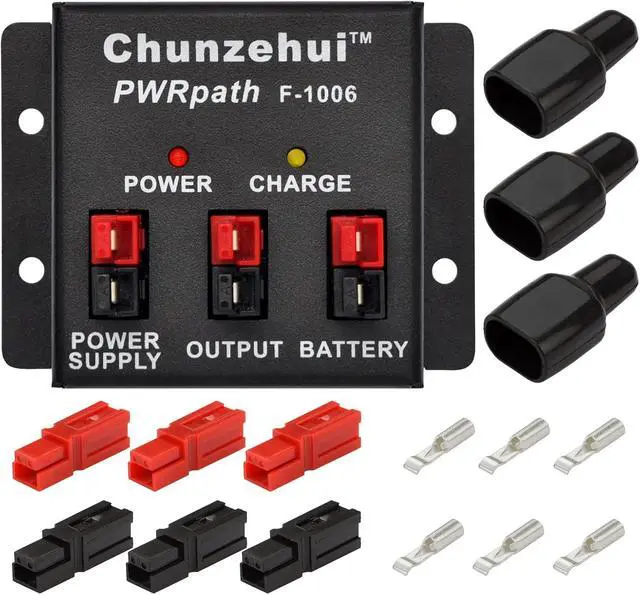

- Attachment includes: 3x black power pole housings. 3x red power pole housings. 3x PVC cover flame retardant sleeve. 6x silver plated copper 30A 14-12AWG power pole contacts.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Design based on powerpath controller and low loss MOSFETs (on status resistance 0.0023 ohm), you do not have to add heatsinks even for 30 Amps of continuous working current.
Operating voltage: DC 5 ~ 28V, Quiescent current: < 2mA (at 13.8V), Max. continuous output current: 30A, Switch circuit: Power MOSFETs "OR-gate" with powerpath controller.
Standard Power pole connectors.
High quality aluminum enclosure, thickness 1.5mm/0.06". Overall Dimensions(maximum, w/o cables): 80mm x 62mm x 33mm / 3.15" x 2.44" x 1.30"
Attachment includes: 3x black power pole housings. 3x red power pole housings. 3x PVC cover flame retardant sleeve. 6x silver plated copper 30A 14-12AWG power pole contacts.
Operating voltage: DC 5 ~ 28V, Quiescent current: < 2mA (at 13.8V), Max. continuous output current: 30A, Switch circuit: Power MOSFETs "OR-gate" with powerpath controller.
Standard Power pole connectors.
High quality aluminum enclosure, thickness 1.5mm/0.06". Overall Dimensions(maximum, w/o cables): 80mm x 62mm x 33mm / 3.15" x 2.44" x 1.30"
Attachment includes: 3x black power pole housings. 3x red power pole housings. 3x PVC cover flame retardant sleeve. 6x silver plated copper 30A 14-12AWG power pole contacts.
