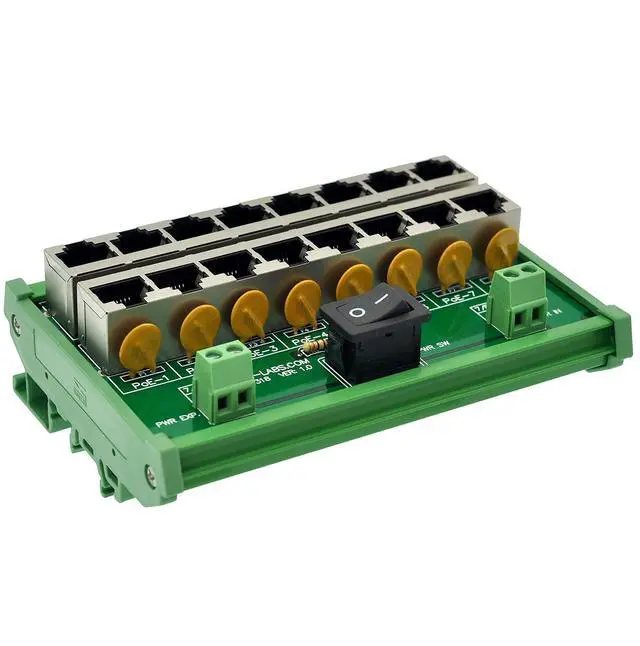

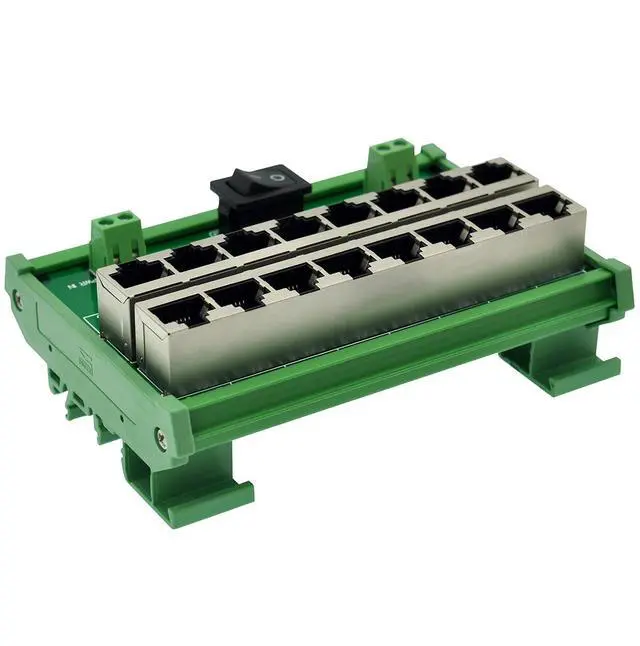

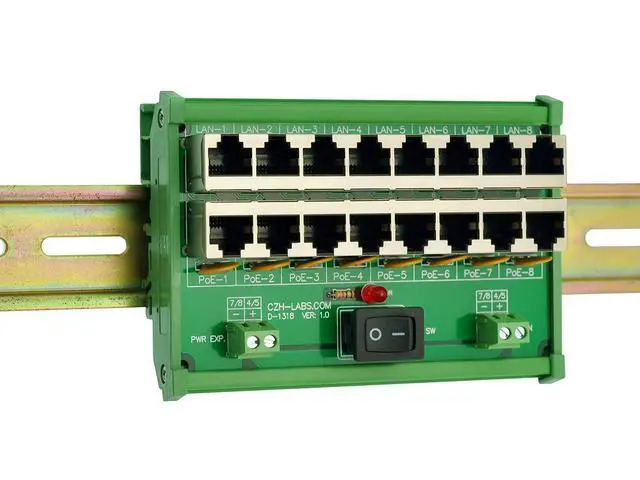

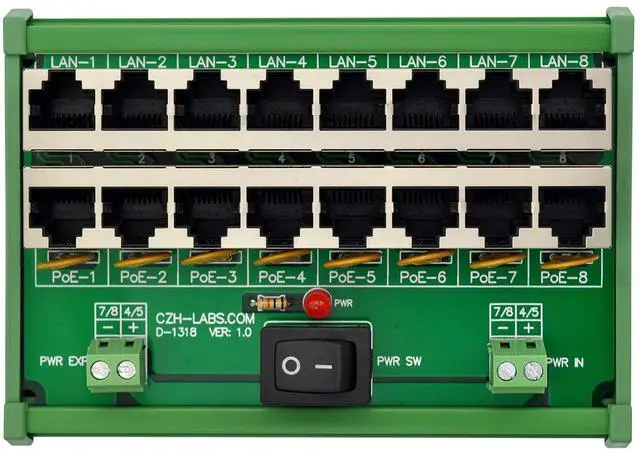

DIN Rail Mount 8 Ports Passive RJ45 PoE Power Injection Board, Power Over Ethernet Injector Module.
- Simple Power up 8 Passive 10/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc.
- Power Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp / 72V). Power Expansion Output terminal block can connect power supply to next device.
- Switch On/Off to save electricity while not use, LED indication for switch On/Off status.

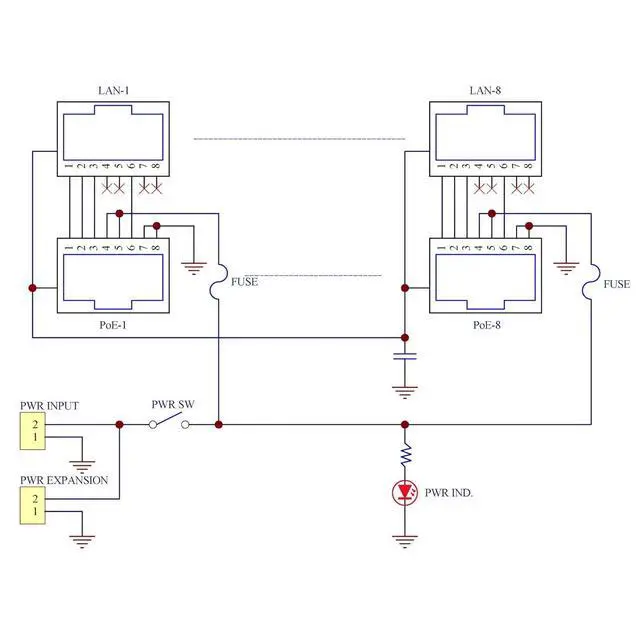

- Specifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected; PoE-X Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -; Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current(per channel): 720mA.

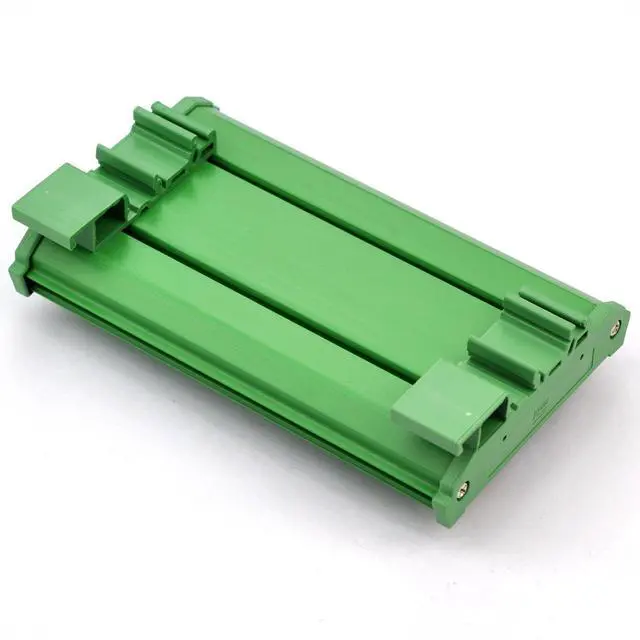

- High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Simple Power up 8 Passive 10/100Mbps PoE devices by one power source Application use for Access Points, IP cameras, IP phones, etc.
Power Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp / 72V). Power Expansion Output terminal block can connect power supply to next device.
Switch On/Off to save electricity while not use, LED indication for switch On/Off status.
Specifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected; PoE-X Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -; Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current(per channel): 720mA.
High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
Power Input terminal block for all PoE power supply, each port serial a recoverable fuse(fuse value 1.1Amp / 72V). Power Expansion Output terminal block can connect power supply to next device.
Switch On/Off to save electricity while not use, LED indication for switch On/Off status.
Specifications: Terminal Block Power Input: 12VDC - 60VDC, maximum current 10Amp; Termianl Block Expansion Output: maximum current 10Amp; LIN-X Input: RJ45 1 / 2 / 3 / 6 pins(data), 4 / 5 / 7 / 8 pins not connected; PoE-X Output: RJ45 1 / 2 / 3 / 6 pins(data). 4 / 5 pins power +, 7 / 8 pins power -; Data Rate: 10 / 100Mbps; PoE Power Output Maximum Current(per channel): 720mA.
High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
