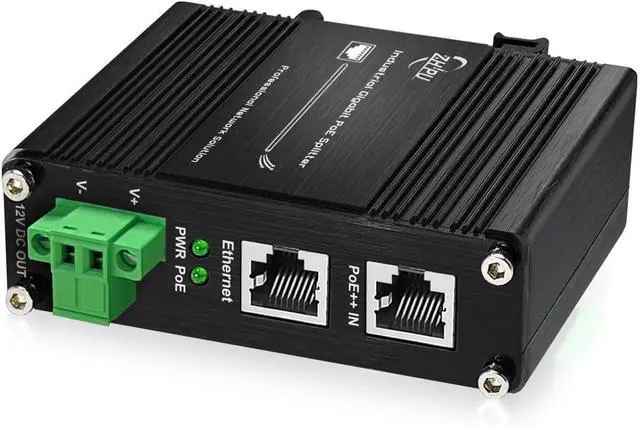

Htfoevrxs Industrial Hardened Gigabit 95W PoE++ Splitter IEEE802.3at/af/bt 12V DC Output Power Supply for Security Cameras, Access Control Systems

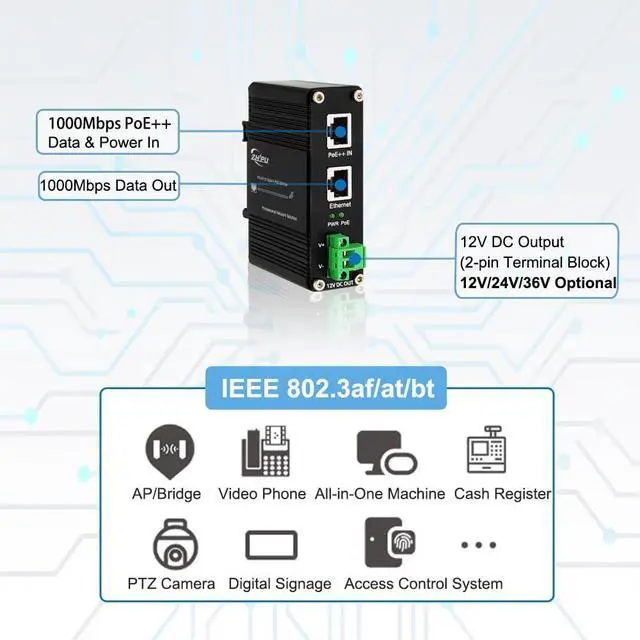

- Port Configuration - Equipped with 1 x RJ45 10/100/1000Base-T PoE (Power + Data) Input Port + 1 x RJ45 10/100/1000Base-T (Data) Out Port, support IEEE802.3af/bt Power over Ethernet (PoE+) Power Sourcing Equipment.

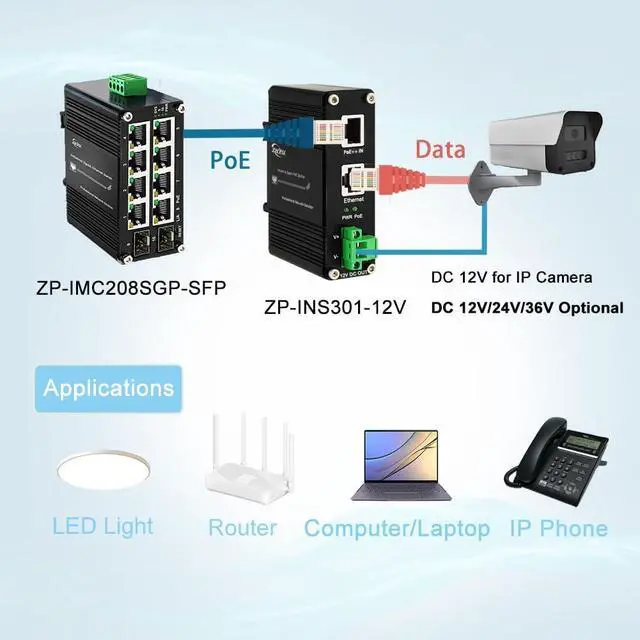

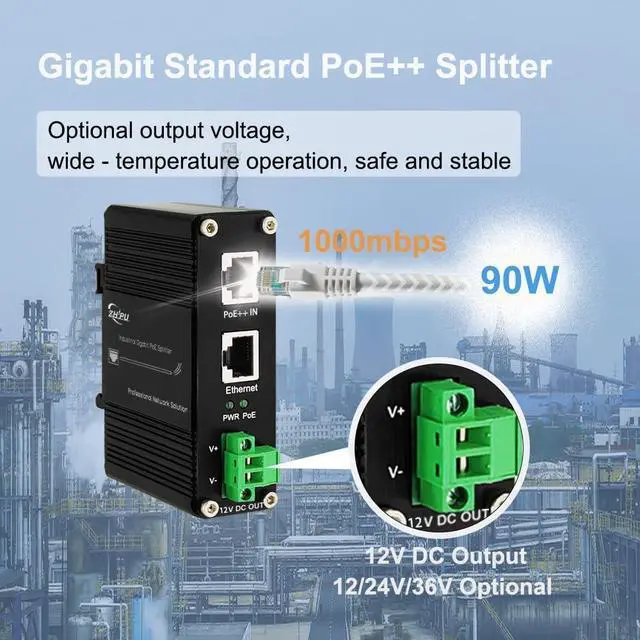

- PoE Splitter 12V- 12V/24V/36V optional. PoE Splitter splits the PoE signal into 12V DC Power Supply and Gigabit Ethernet in RJ45 so that non-PoE devices can be powered over Ethernet.

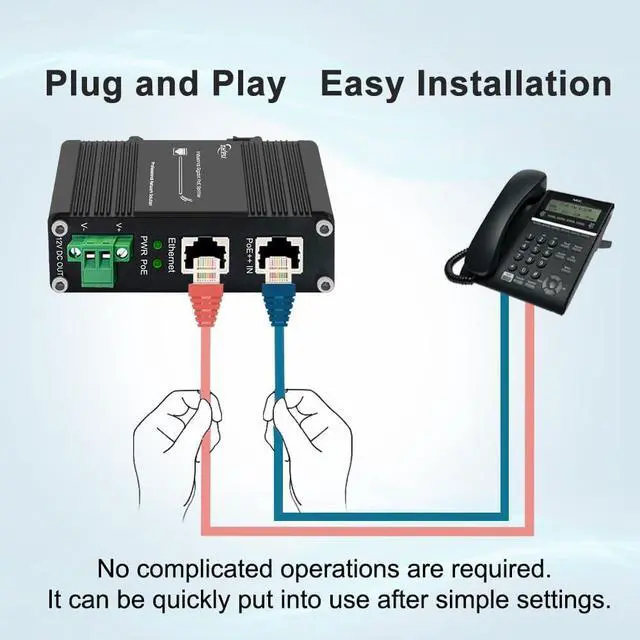

- Plug and Play- Require no configuration, a simple solution to expand your network to where you wish to place network devices but has no power outlet.
- Multiple Protection- Support 1500V high voltage isolation circuit protection, which can effectively protect electrical equipment; support short circuit protection, overvoltage protection, and work stably.

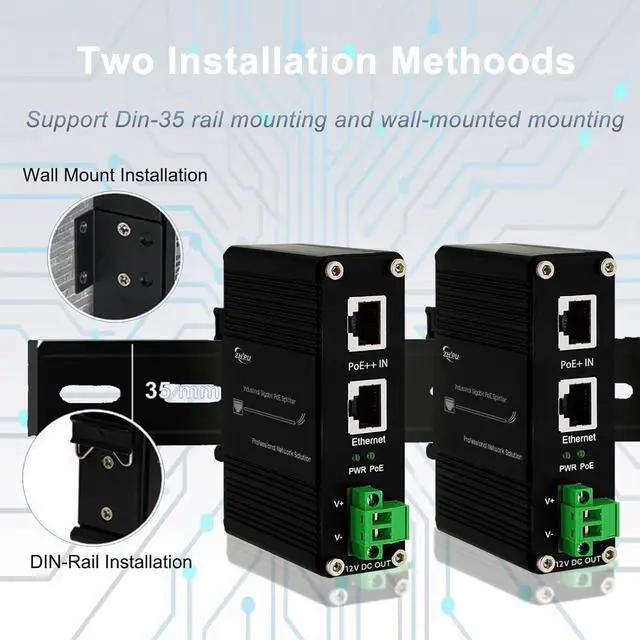

- Din-Rail & Wall Mount- Industrial-grade aluminum alloy PoE injector supports 10/100/1000 Base-T Gigabit network with dual installation options. High bandwidth enables 4K/8K camera transmission, ideal for wireless APs, CCTV securi
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ZP-INS901 series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
The ZP-INS901 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with ZP-INJ901 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 24VDC, run simultaneously up to the Ethernet limit of 100 meters.
Features
Splits power and data from PoE Input
One RJ45 PoE Port (Data & Power In)
One RJ45 Port (Data Out)
One 12VDC/24V/36V Output (2-pin Terminal Block)
Support IEEE802.3af/at/bt PoE++
Support 10/100/1000Base-T
Distance up to 100 meters
Short-circuit protection for power output
IP40 rugged aluminium housing and fanless
Support DIN-Rail & Wall-mount installation
The ZP-INS901 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt PSE (Power Source Equipment) switches or work when paired with ZP-INJ901 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 24VDC, run simultaneously up to the Ethernet limit of 100 meters.
Features
Splits power and data from PoE Input
One RJ45 PoE Port (Data & Power In)
One RJ45 Port (Data Out)
One 12VDC/24V/36V Output (2-pin Terminal Block)
Support IEEE802.3af/at/bt PoE++
Support 10/100/1000Base-T
Distance up to 100 meters
Short-circuit protection for power output
IP40 rugged aluminium housing and fanless
Support DIN-Rail & Wall-mount installation
