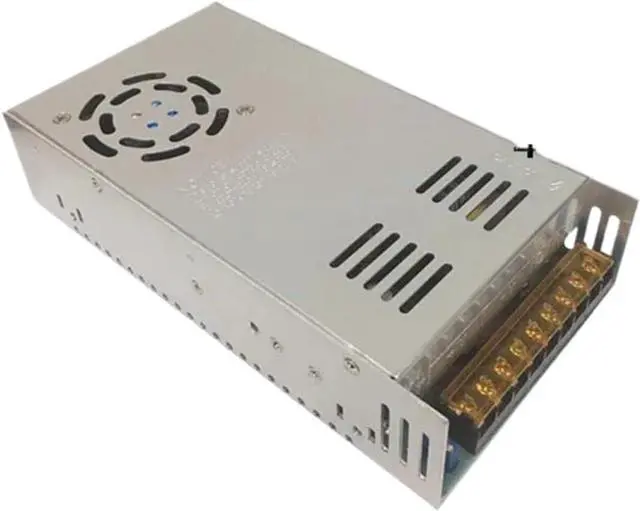

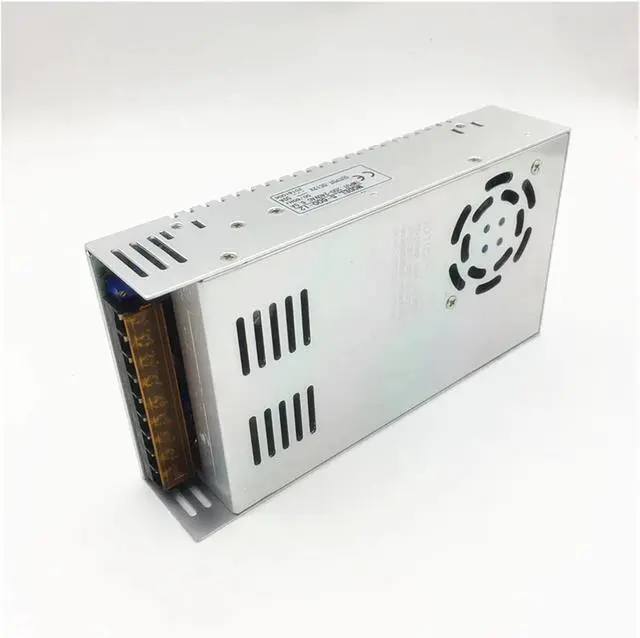

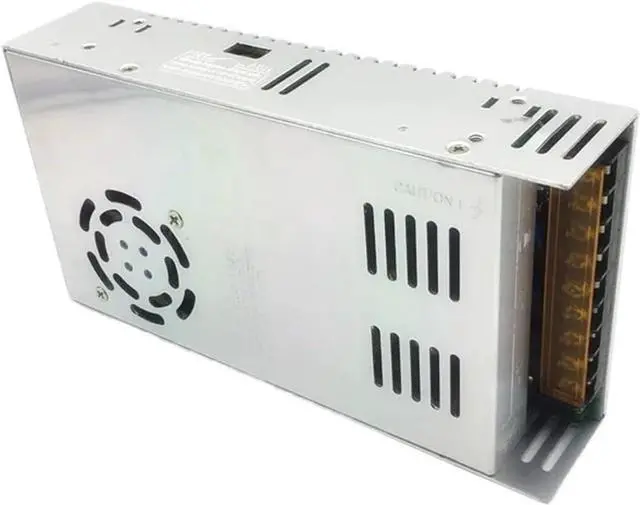

Precision Power Supply, 600W Universal Switching Power Supply 12V 50A 24V 25A 36V 16.66A 48V 12.5A Transformer Driver Adapter(24V 25A)
- Universal AC input
- High efficiency and low operation temperature
- Softstart current can reduce the AC input impact effectively
- With short-circuit and overload protection
- Full-load burn-in test Voltage adjustable +-10%
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Pls don't use full load when you use it. We recommend the use power should be 80% of the rated power. For example: the label of the power supply is 500W, use power should be : 500W*80%=400W
Output Power : >500W
Model Number : S-600
Output Frequency : 50/60HZ
Output Type : SINGLE

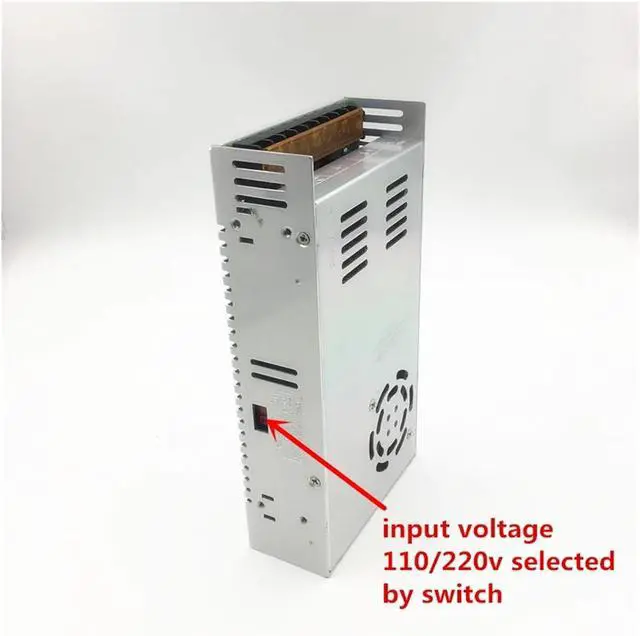

AC input voltage range : 95~132VAC/180~264VAC 47~63 Hz 255~373VDC
Over load protection : 105~135% cut off the output,restart
Over-voltage protection : 115~135% cut off the output,restart
Over-temp protection : Rectifier the temperature85±5% cut off the output,auto-recovery
Withstand voltage : I/P-O/P:1.5KvAC 1min;I/P-FG:1.5KvAC 1min;O/P-FG:0.5KvAC 1min
Working temperature : -10°C~+60°C,20%~90%RH

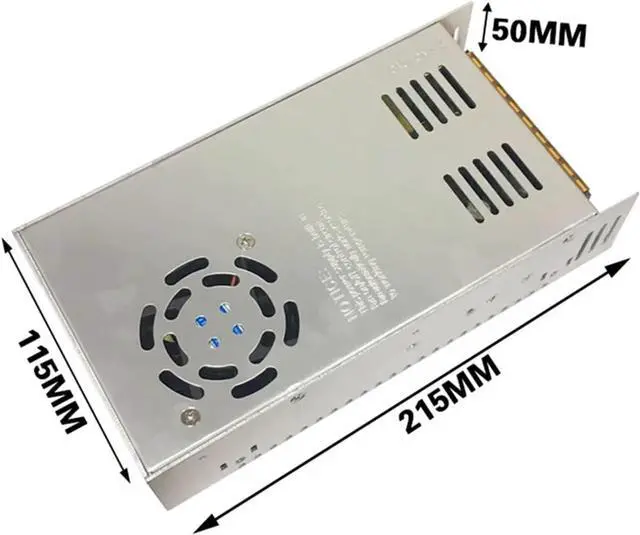

product size : 215*115*50mm(L*W*H)
Weight : 1.1kg
Output Power : >500W
Model Number : S-600
Output Frequency : 50/60HZ
Output Type : SINGLE
AC input voltage range : 95~132VAC/180~264VAC 47~63 Hz 255~373VDC
Over load protection : 105~135% cut off the output,restart
Over-voltage protection : 115~135% cut off the output,restart
Over-temp protection : Rectifier the temperature85±5% cut off the output,auto-recovery
Withstand voltage : I/P-O/P:1.5KvAC 1min;I/P-FG:1.5KvAC 1min;O/P-FG:0.5KvAC 1min
Working temperature : -10°C~+60°C,20%~90%RH
product size : 215*115*50mm(L*W*H)
Weight : 1.1kg
