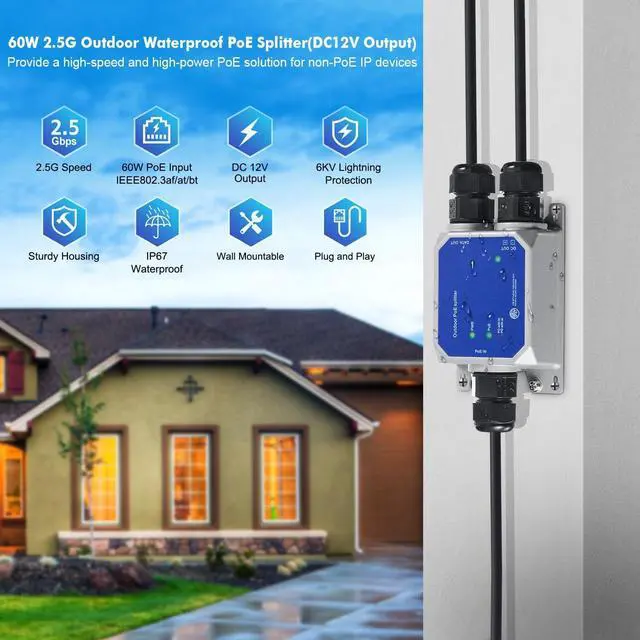

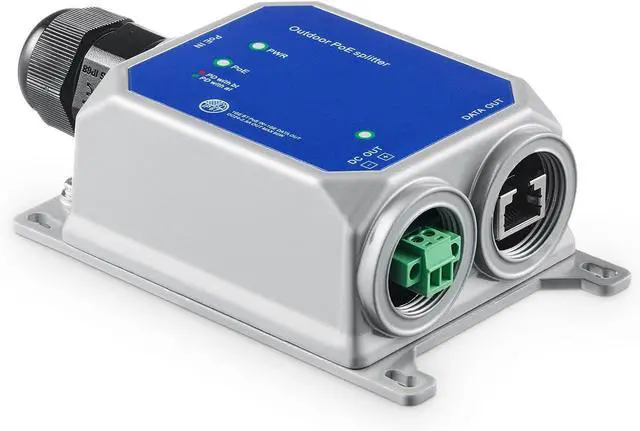

MokerLink IP67 Outdoor 2.5 Gigabit PoE Splitter, 10/100/1000/2500Mbps, IEEE 802.3 af/at/bt PoE in, DC12V 5A Out, Max 65W, Wall Mount Metal Waterproof

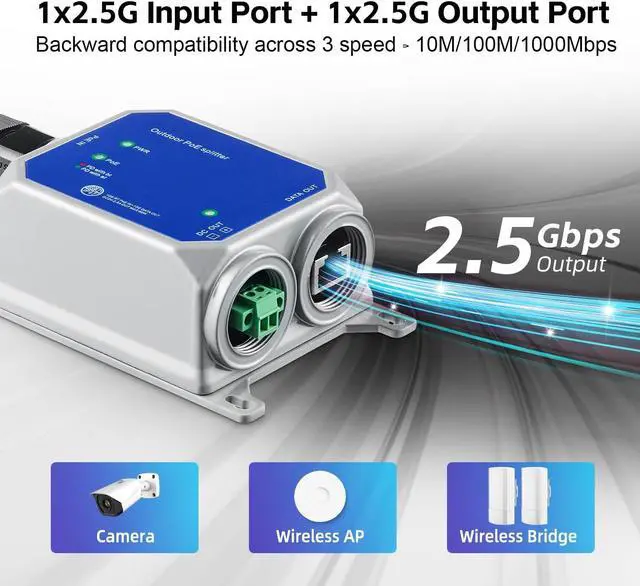

2.5 Gigabit Ports: Include 1 PoE In, 1 data Out, auto adaptive 10/100/1000/2500Mbps speed. 100BASE-TX, Cat5 or later UTP(120 meter); 1000BASE-TX: Cat6 or later UTP(100 meter);2500BASE-TXCat6 or later UTP(90 meter)

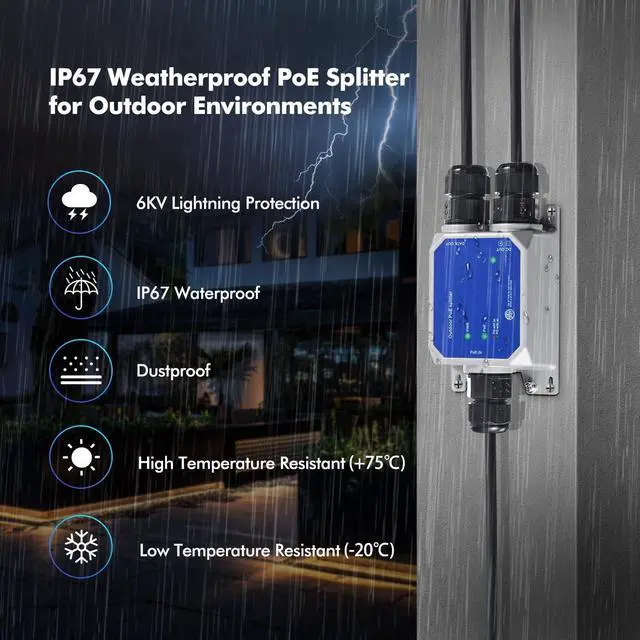

IP67 Outdoor Weatherproof: Rugged industrial grade metal housing, cable interface are all protected in the shell, with waterproof cap, which has better waterproof, dustproof and snowproof effect, and is more suitable for outdoor and indoor environments, such as warehouses, computer rooms, garages, attics, etc. **Pass the network cable through the waterproof cap and then make RJ45 connection**

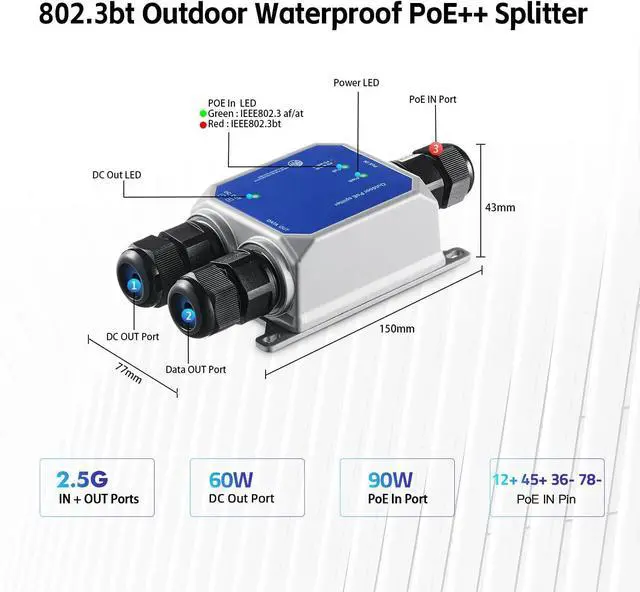

IEEE 802.3 af/at/bt: PoE In port support this standard PoE, Input Max 65W IEEE802.3af/at/bt, Output Max 65W DC12V 5A with phoenix terminal(Please note the positive and negative poles). PoE in Voltage 44-57 Vdc. PoE pin: 1/2 (+),4/5 (+), 3/6 (-),7/8 (-)
Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.
Easy Installation: No need for additional power adapter, powered by POE network. LED indicator, Meta case, support wall mount, small size, save space, suitable for more positions. Separate the data and 12V power supply from the POE network to connect to devices, such as cameras, APs, etc.
