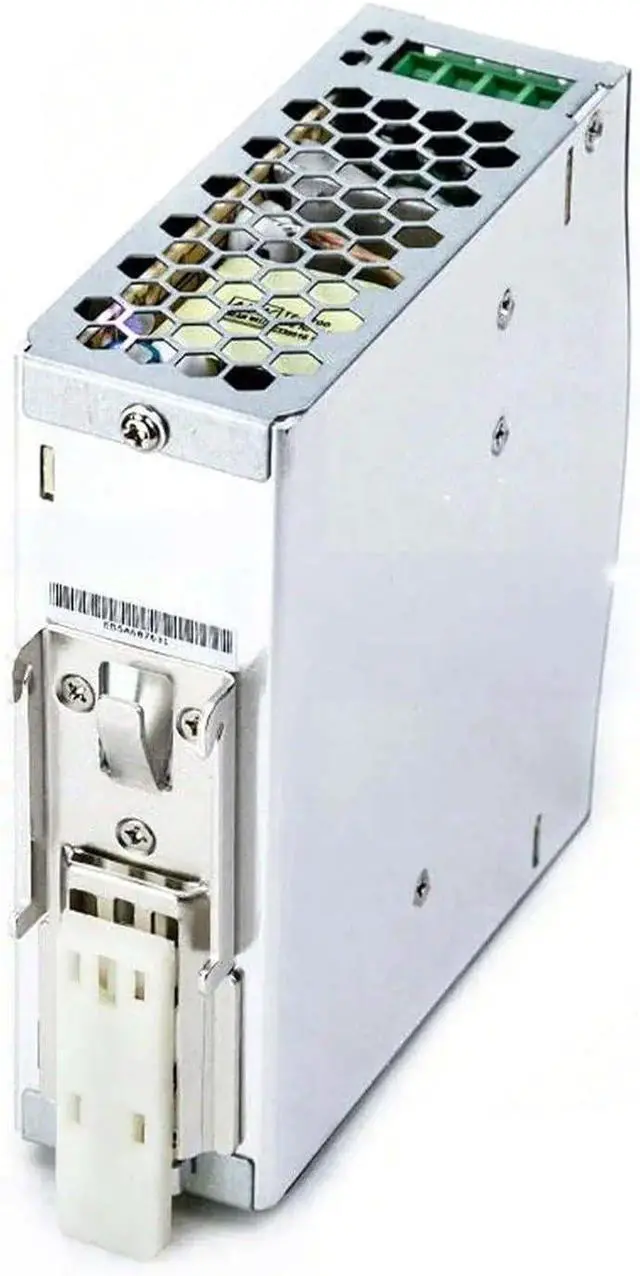

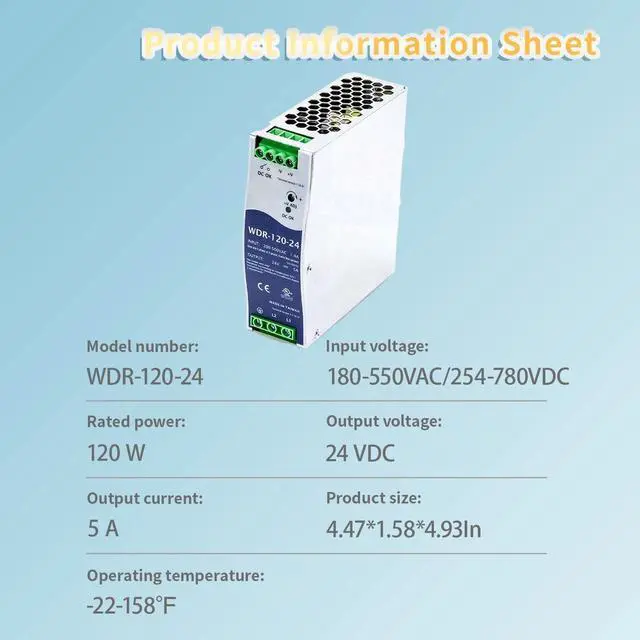

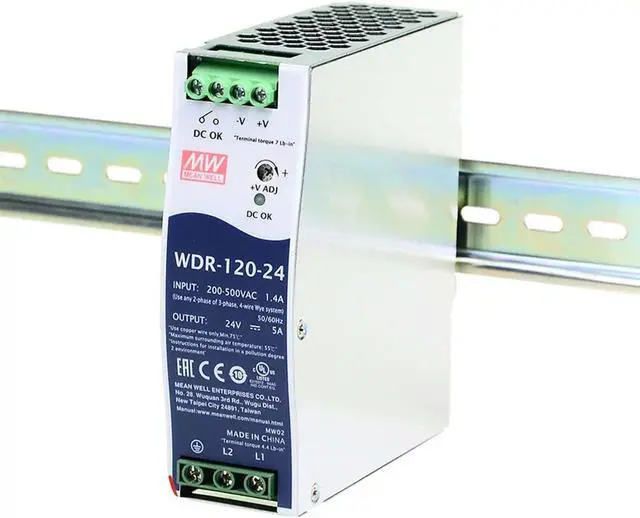

WDR-120-24 Industrial DIN Rail Power Supply, 24V 5A 120W, Voltage Input 180-550VAC/254-780VDC, UL508 Certified, Heavy-Duty Design for PLC/DCS Control Systems & Industrial Automation (3-Year Warranty)
- Industrial-Grade Certification & High Reliability: UL508 & IEC62368-1 CB certified, compliant with BS EN/EN61000-6-2 EMC standards.full-load aging tested, with strong EMI & vibration resistance (10~500Hz, 2G). MTBF 1509.6k hours for long-term stable operation
- Ultra-Wide Voltage for Global Use: Supports 180~550VAC (220V Asian/400V European grid) & 254~780VDC input, adapting to global grids, industrial voltage fluctuations & 200~800VDC PV/energy storage systems. No extra voltage regulator needed
- High Precision & Low Ripple: ±1.0% voltage accuracy, ±0.5% line/load regulation, max 120mVp-p ripple. Avoids signal distortion for high-precision sensors, no extra filtering modules required
- Comprehensive Protection: Built-in overload (105%~130% rated power), overvoltage (31~37V), overtemperature & short-circuit protection. Auto-recovery for overload/overtemperature; leakage current <3.5mA/530VAC, meeting safety standards
- Space-Saving & Intelligent Monitor
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial-Grade Certification & High Reliability: UL508 & IEC62368-1 CB certified, compliant with BS EN/EN61000-6-2 EMC standards.full-load aging tested, with strong EMI & vibration resistance (10~500Hz, 2G). MTBF 1509.6k hours for long-term stable operation
Ultra-Wide Voltage for Global Use: Supports 180~550VAC (220V Asian/400V European grid) & 254~780VDC input, adapting to global grids, industrial voltage fluctuations & 200~800VDC PV/energy storage systems. No extra voltage regulator needed
High Precision & Low Ripple: ±1.0% voltage accuracy, ±0.5% line/load regulation, max 120mVp-p ripple. Avoids signal distortion for high-precision sensors, no extra filtering modules required
Comprehensive Protection: Built-in overload (105%~130% rated power), overvoltage (31~37V), overtemperature & short-circuit protection. Auto-recovery for overload/overtemperature; leakage current <3.5mA/530VAC, meeting safety standards
Space-Saving & Intelligent Monitoring: Standard TS-35/7.5/15 DIN rail mount, compact 40×125.2×113.5mm size. Built-in DC OK relay contacts for real-time status feedback, easy PLC linkage for fault early warning
Ultra-Wide Voltage for Global Use: Supports 180~550VAC (220V Asian/400V European grid) & 254~780VDC input, adapting to global grids, industrial voltage fluctuations & 200~800VDC PV/energy storage systems. No extra voltage regulator needed
High Precision & Low Ripple: ±1.0% voltage accuracy, ±0.5% line/load regulation, max 120mVp-p ripple. Avoids signal distortion for high-precision sensors, no extra filtering modules required
Comprehensive Protection: Built-in overload (105%~130% rated power), overvoltage (31~37V), overtemperature & short-circuit protection. Auto-recovery for overload/overtemperature; leakage current <3.5mA/530VAC, meeting safety standards
Space-Saving & Intelligent Monitoring: Standard TS-35/7.5/15 DIN rail mount, compact 40×125.2×113.5mm size. Built-in DC OK relay contacts for real-time status feedback, easy PLC linkage for fault early warning
