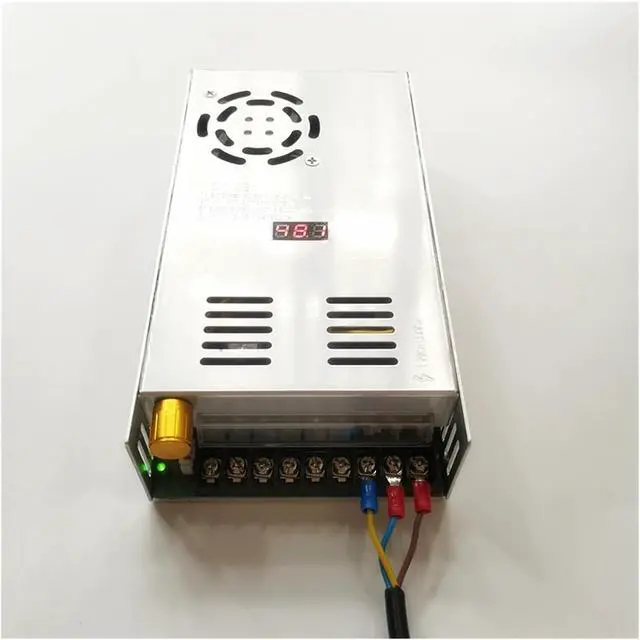

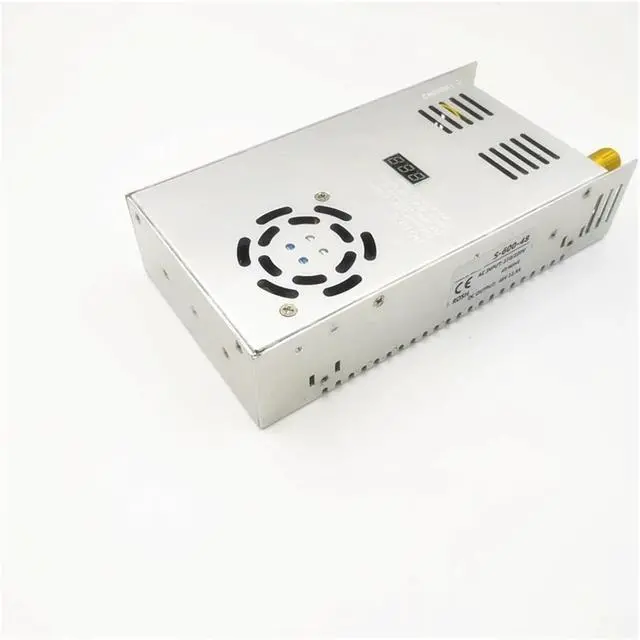

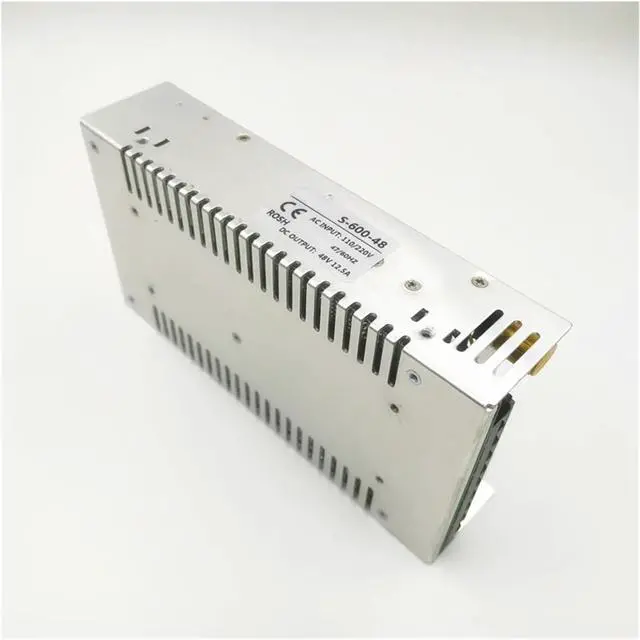

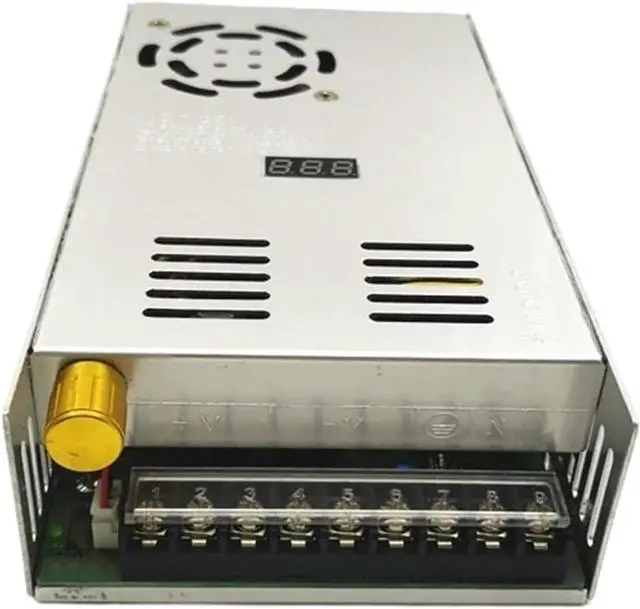

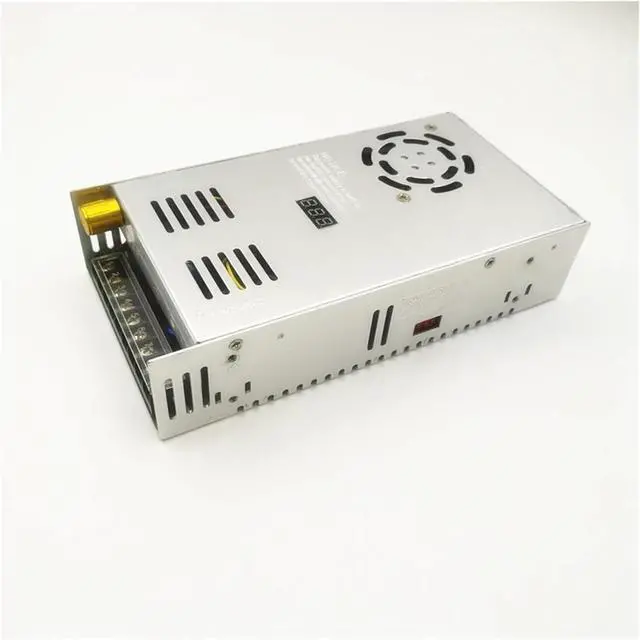

480W Switching Power Supply Adjustable Output Voltage 0-12V 24V 36V 48V 50V 60V 80V Digital Display AC to DC 24V 20A, 48V 10A(0-15V 32A)

Industrial Power Suppl
480W switching power supply adjustable output voltage AC-DC 0-12V 15V 24V 36V 48V 50V 60V 72V 80V 110V 130V 220V, SMPS 12V 50A
For the maximum output voltage, if you order 0-48V12.5A, when you set the output voltage to 24V, the maximum output is still 12.5A.
switching power supply
Output power: 480w
Input voltage: 110/220VAC selected by switch.
Output voltage is adjustable in full range
Note: The fan is an ordinary fan, not a temperature-controlled fan.
Switch input voltage range selection
100 full load machine tests
Protection characteristics short circuit/overload
S-480-36
S-480-12
S-480-15
S-480-24
S-480-48
DC output voltage
36 volts
12V
15V
24V
48V
Output voltage range (Note: 2)
±2%
±1%
±1%
±1%
±1%
Rated output current
13.3A
40A
32A
20A
10A
Output voltage range DC
0~36V
0~12V
0~15V
0~24V
0~48V
Waves and Noise (Note: 3)
75mVp-p
120mVp-p
150mVp-p
240mVp-p
240mVp-p
Entrance stability (Note: 4)
±0.5%
±1%
±1%
±1%
±1%
Load stability (Note: 5)
±1%
±0.5%
±0.5%
±0.5%
±0.5%
DC output power
480W
480W
480W
480W
480W
efficiency
86%
83%
84%
86%
87%
AC input voltage range
100-132VAC/190-240VAC 47-63Hz selected by switch
Input current
5A/230V
power factor
0.65-0.75
AC surge current
46A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
120%-150%
Overvoltage protection
120%-150%
High temperature protection
80°C~85°C, cut off output (5-15V)~(24-48V)
temperature coefficient
±0.03%/(0~50)
Setup time, rise time, hold time
1 second, 100 milliseconds, 50 milliseconds
vibration
10~500Hz, 2G 10min, /1 cycle. Each axis cycle is 60 minutes
Withstand voltage
I/PO/P:1.5KVAC I/P-FG:1.5KVAC O/P-
