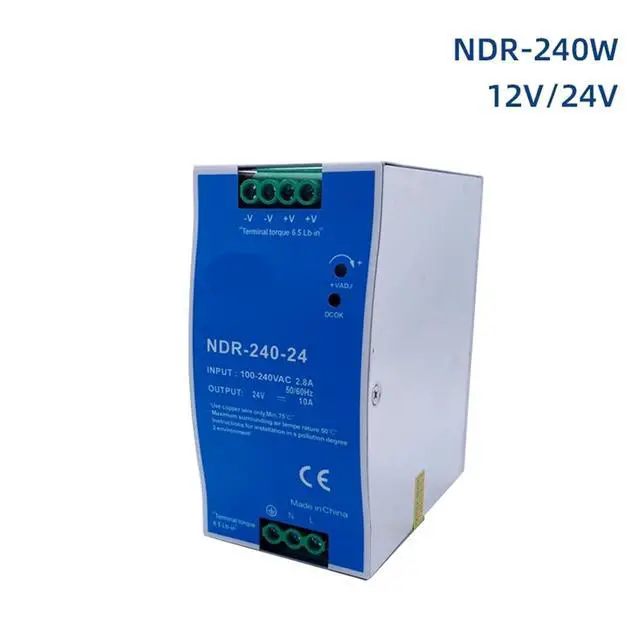

NDR-240W Switching Power Supply 12/24V Ultra Thin Single Output Mounting AC DC for Electrical Equipment SMPS 1Pcs(NDR-240-24)
- Low-Voltage Transformers
- See the second picture of the variant for detailed parameters
- See the second picture of the variant for detailed parameters
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Low-Voltage Transformers

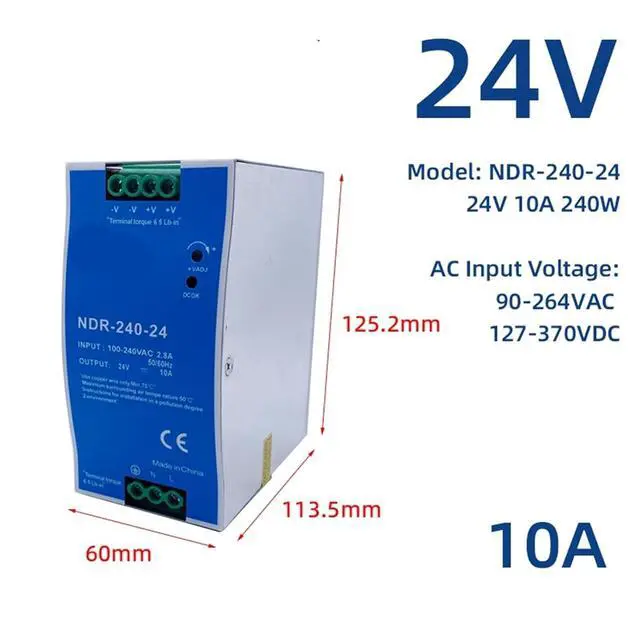

Specification of 240W
Specification Parameter
Model
NDR-240-12
NDR-240-24
Output
12V,0~20A
24V,0~10A
Error
±1%
±1%
Range
150mV
150mV
Efficiency
0.87
0.88
Net Weight
0.9kg
Gross Weight
1kg
L*W*H
60×113.5×125.2mm
Laboratory Testing Data
AC input voltage range
90~264 VAC/127~373 VDC
Over load protection
105%-130% constant current mode, auto- recovery
Over-voltage protection
Shut off o/p voltage, after the restart recovery
output frequency
47~63 Hz
Working temperature
-20~+50,20%~90%RH
Model Number : NDR
Output Type : SINGLE
Output Power : 240W
Input Voltage : 90~264 VAC/127~373 VDC
Output Voltage : 12V 24V
Output Frequency : 47~63 Hz
Output Current : 20A 10A
Specification of 240W
Specification Parameter
Model
NDR-240-12
NDR-240-24
Output
12V,0~20A
24V,0~10A
Error
±1%
±1%
Range
150mV
150mV
Efficiency
0.87
0.88
Net Weight
0.9kg
Gross Weight
1kg
L*W*H
60×113.5×125.2mm
Laboratory Testing Data
AC input voltage range
90~264 VAC/127~373 VDC
Over load protection
105%-130% constant current mode, auto- recovery
Over-voltage protection
Shut off o/p voltage, after the restart recovery
output frequency
47~63 Hz
Working temperature
-20~+50,20%~90%RH
Model Number : NDR
Output Type : SINGLE
Output Power : 240W
Input Voltage : 90~264 VAC/127~373 VDC
Output Voltage : 12V 24V
Output Frequency : 47~63 Hz
Output Current : 20A 10A
