Power Supply Variable,Switching Power Supply, 3A Adjustable Lab Dc Power Supply Bench Source Stabilized Digital Switching Power Supplies Voltage Current for LED Strip, CCTV Camera, Radio(30V 20A,220)
- KPS series products are a high-power digital display program-controlled switching DC regulated power supply newly developed and upgraded by our company.
- This product is a DC programmable power supply with exquisite appearance, small size, high performance, powerful function and simple operation.
- It is suitable for testing in aerospace and defense, consumer electronics, computers and peripherals, communications, semiconductors, solar energy and automotive electronics.
- The product can display voltage and current at the same time. The output voltage and output current are adjusted by the encoder knob, which can be continuously adjusted between 0 and the nominal value. It has high power, large current, fast response, and fast load transient response, Low noise, easy to use and other significant advantages! The stability and ripple coefficient of the power supply are very good.
- It has various protection circuits such as short-circuit protection, over-voltage protection, over-current pr
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
There are included 4 packages:
Three-digit display 0.01 V/0.01 A

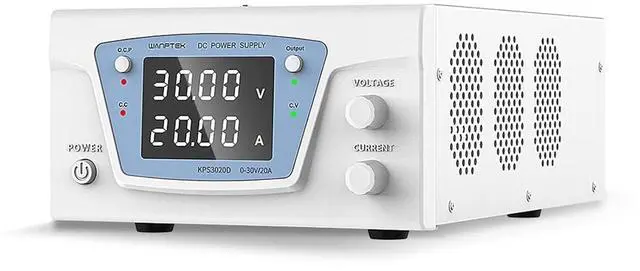

1.KPS3020D DC power supply with power display 30V 20A 600W
2.KPS15003D DC power supply with power display 150V 3A 450W
3.KPS2003D DC power supply with power display 200V 3A 600W

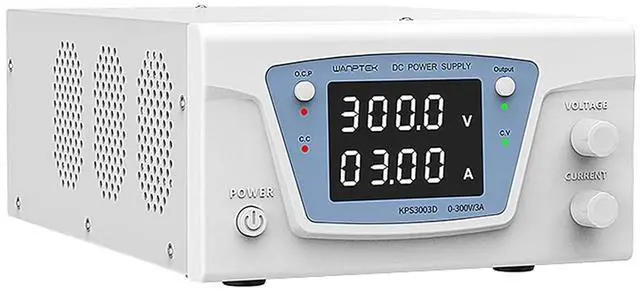

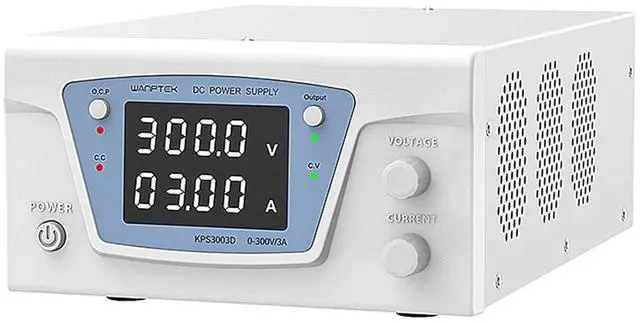

4.KPS3003D DC power supply with power display 300V 3A 900W
Application field
Electrolytic plating
Product aging test
Production line test
Charging batteries
Electronic device testing
Laboratory research and development test
School teaching experiment
Telecom Power
Operation requirements
Input voltageAC 220±10%50Hz
<;80%RH
<;70%RH
output voltage
0-rated value (see specification table)
Output current
0-rated value (see specification table)
output power
see specification table
Set value resolution
Voltage0.01V
Current0.01A
Resolution of readback value
Voltage0.01V
Current0.01A
Header display
0.56 inch white four-digit digital tube display
Display accuracy: 0.5%±3 words
Display resolution: voltage 0.01V, current 0.01A
Regulated state CV
Voltage stability0.5%±20mV
Load stability0.5%±20mV
Ripple voltage0.5% Vp-p
Steady flow state CC
Current stability0.5%±20mA
Load stability0.5%±20mA
Ripple current0.5% Vp-p
Temperature Coefficient100ppm/
Rise Time
No load15ms
Fully loaded30ms
Dynamic response time
2ms
Accessibility

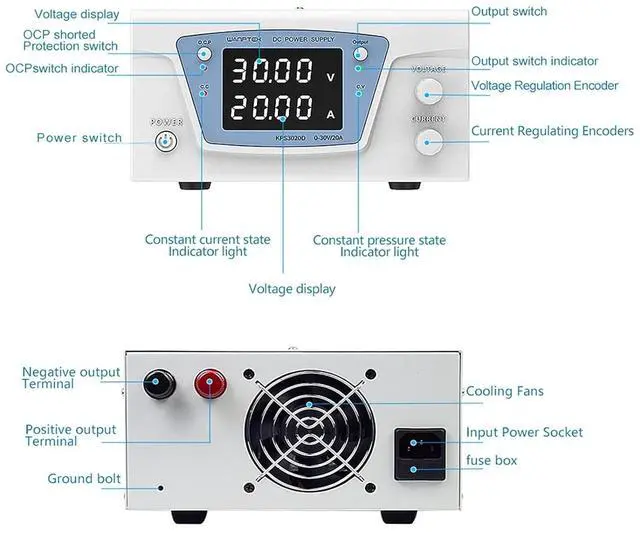

OUTPUT output switch, OCP short circuit protection switch
Protective function

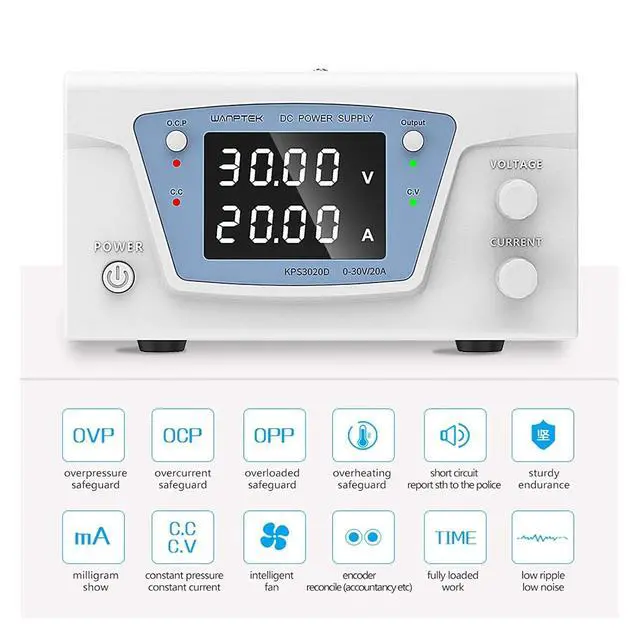

OVP,OCP,OPP,OTP
Random accessories
AC power cord X1
Operation Manual X1
Certificate of Warranty Card X1
Wiring copper terminal X2
1 Small size, light weight, suitable for work surface use and rack installation;
2 Exquisite appearance, flexible operation and convenient use;
3 High precision, internal use original
Three-digit display 0.01 V/0.01 A
1.KPS3020D DC power supply with power display 30V 20A 600W
2.KPS15003D DC power supply with power display 150V 3A 450W
3.KPS2003D DC power supply with power display 200V 3A 600W
4.KPS3003D DC power supply with power display 300V 3A 900W
Application field
Electrolytic plating
Product aging test
Production line test
Charging batteries
Electronic device testing
Laboratory research and development test
School teaching experiment
Telecom Power
Operation requirements
Input voltageAC 220±10%50Hz
<;80%RH
<;70%RH
output voltage
0-rated value (see specification table)
Output current
0-rated value (see specification table)
output power
see specification table
Set value resolution
Voltage0.01V
Current0.01A
Resolution of readback value
Voltage0.01V
Current0.01A
Header display
0.56 inch white four-digit digital tube display
Display accuracy: 0.5%±3 words
Display resolution: voltage 0.01V, current 0.01A
Regulated state CV
Voltage stability0.5%±20mV
Load stability0.5%±20mV
Ripple voltage0.5% Vp-p
Steady flow state CC
Current stability0.5%±20mA
Load stability0.5%±20mA
Ripple current0.5% Vp-p
Temperature Coefficient100ppm/
Rise Time
No load15ms
Fully loaded30ms
Dynamic response time
2ms
Accessibility
OUTPUT output switch, OCP short circuit protection switch
Protective function
OVP,OCP,OPP,OTP
Random accessories
AC power cord X1
Operation Manual X1
Certificate of Warranty Card X1
Wiring copper terminal X2
1 Small size, light weight, suitable for work surface use and rack installation;
2 Exquisite appearance, flexible operation and convenient use;
3 High precision, internal use original
