350W Uninterruptible power supply smps Switching Power Supply with fuse DC 12V 24V 5A/2.5A for Charge PSC-350
To ensure the life time of the power supply, pls don't use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 500W, use power should be : 500W*80%=400W
Feature
-full load burn-in test
-Power start LED indicator
-AC to battery power supply, no switching time

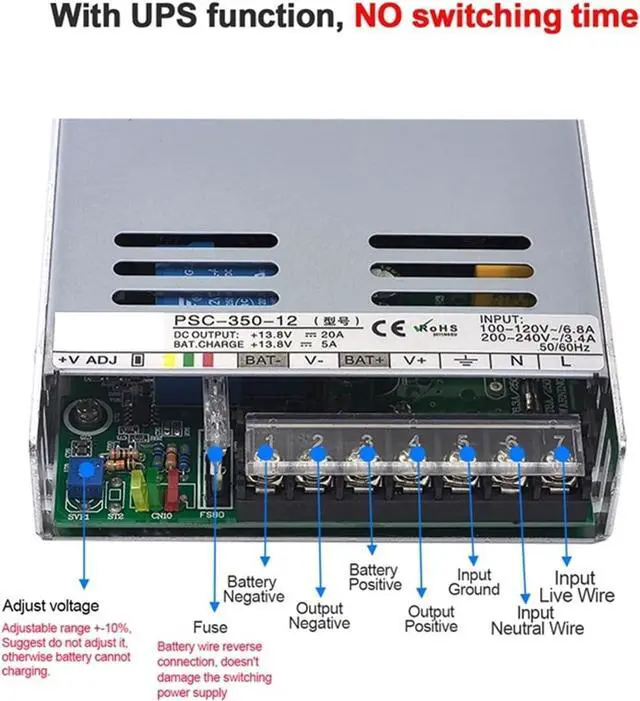

-Battery charging terminal with a fuse, battery reverse connection will not damage the switching power supply
CN1 External Indicator Description
GREEN:DC output
RED:AC input
YELLOW:Battery charging
Output Power : 401 - 500w
Output Current : 8a
Model Number : PSC-350
Output Frequency : 50HZ
Output Type : Single

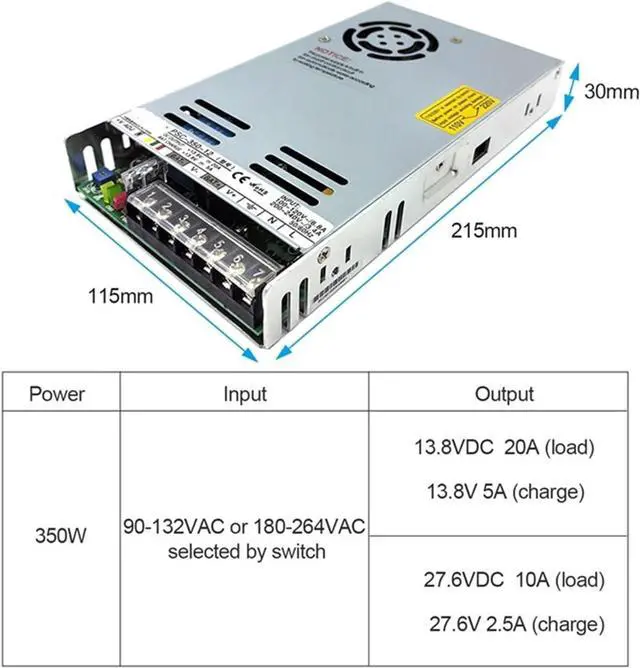

Product size : 215*115*30 mm (L*W*H)
Output power : 350w
Output Voltage : 12v/24v
