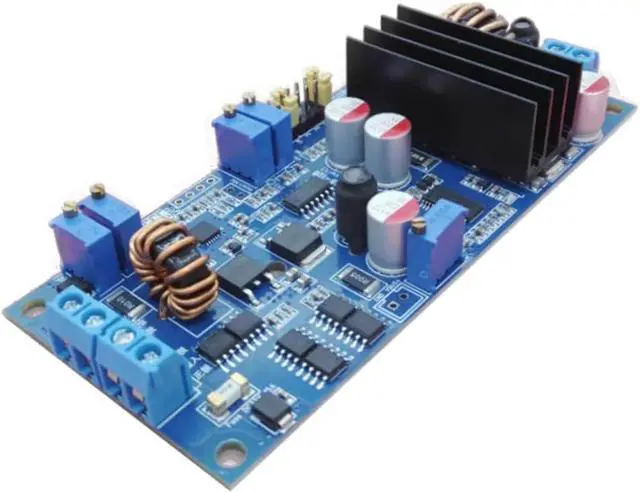

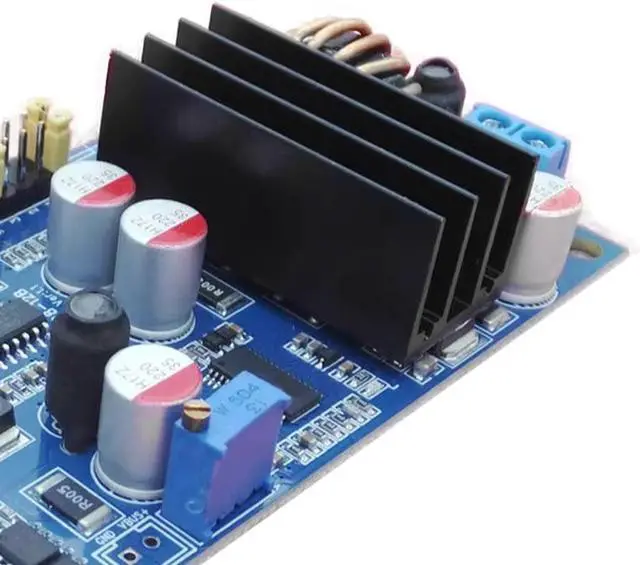

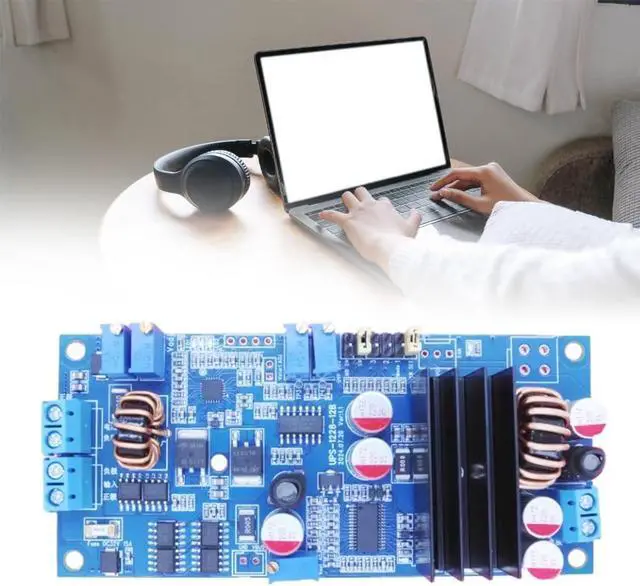

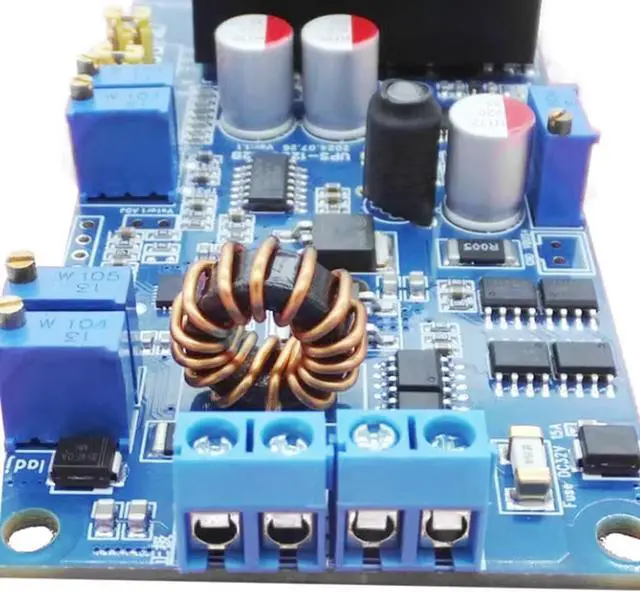

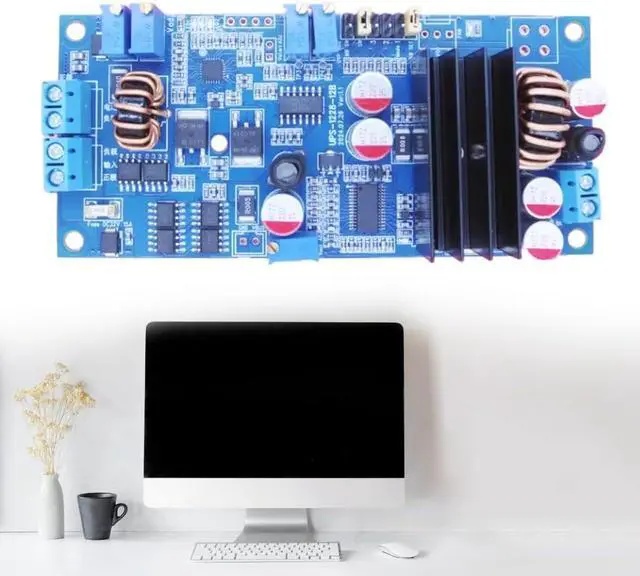

360 Power Module Uninterruptible Power Supply Computer Access Control Security Industrial Control Backups Power

Features:
The 360 Power Control Module offering precise power management and reliabled performances, making it essential component for any technology setups.
This module ensures durability and efficient conductivity, providing stable and consistent power flowing to your devices.
The voltages of the input power supply should be at least 1Voltage high than the battery's charging cut-off voltages, otherwise it will not charging.
For example, the charging cut-off voltages of a 12V acided battery is 13.8V. At this time, the input power supply must be a power supply of 14.8V or more. 16V, 19V, and 24V all OK.
Adjust the charging voltages: Do not connection the battery first, use multimeter to the voltages at the battery end of the module, and adjust the potentiometer on board to make the charging voltages meet the requirements of the battery used.

Specifications:
Working conditions: input voltages 16V
Input voltages ranging: 10-28V
Input current (input limit): 15A
MTBF: 100,000hrs @ 50C
Size: about 110X50mm/4.33x1.97in
Charging characteristics
Charging voltages: 4-23V continuously adjust
Charging current: 0.5-5A continuously adjust
Output voltages: 2-28V continuously adjust
Output current: 8.3A
Output power: 100W

Note:
Note that when adjusting the charging voltages, the charging voltages keeps jumping. This is a pulsed voltages output by the charging when it automatically detects the battery. Just adjust the highest jumping voltages to a suitable value.

Package includes:
1PC 360 Power Control Module
