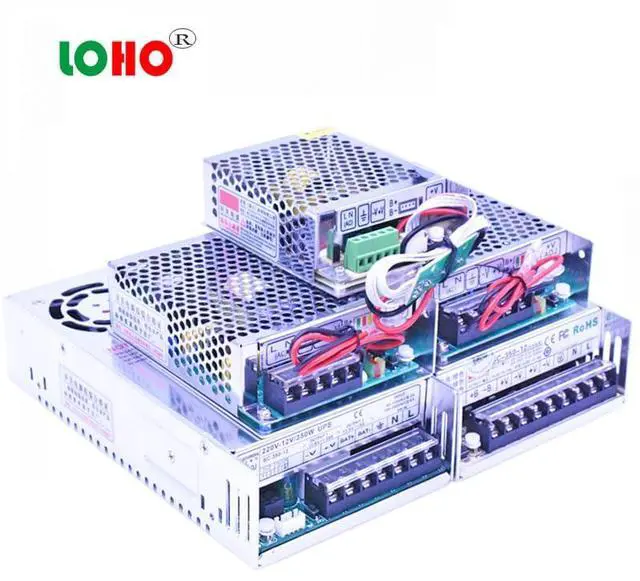

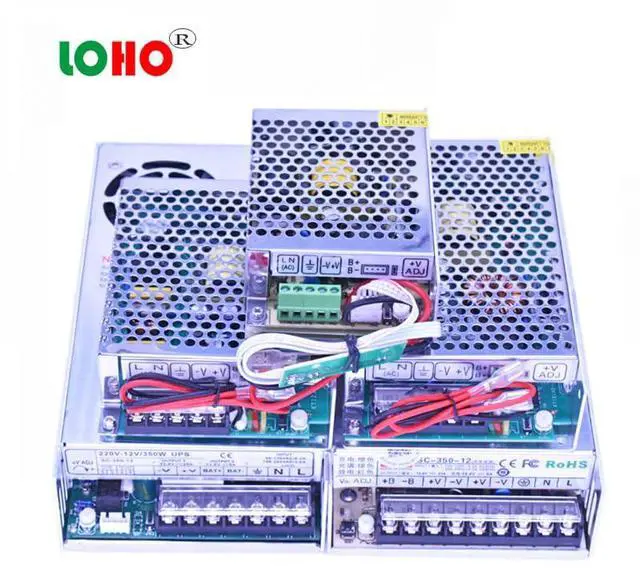

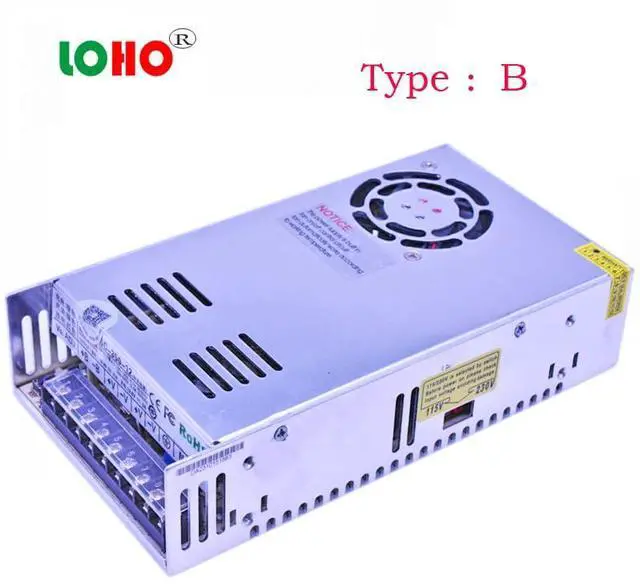

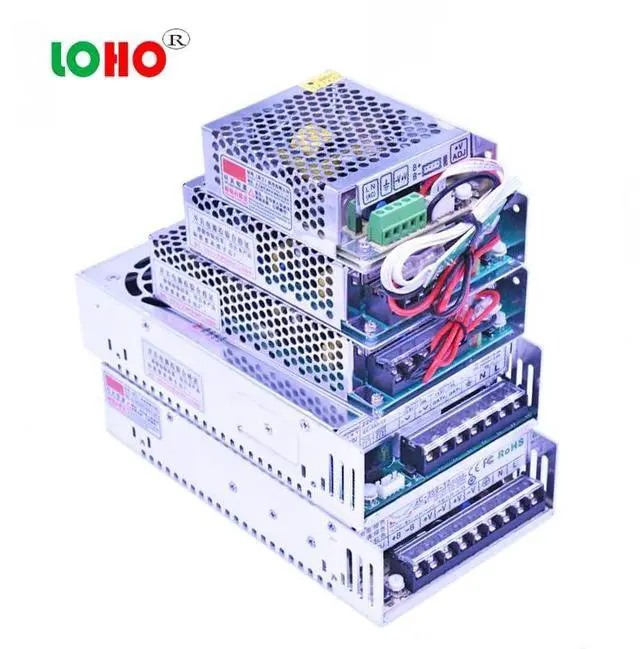

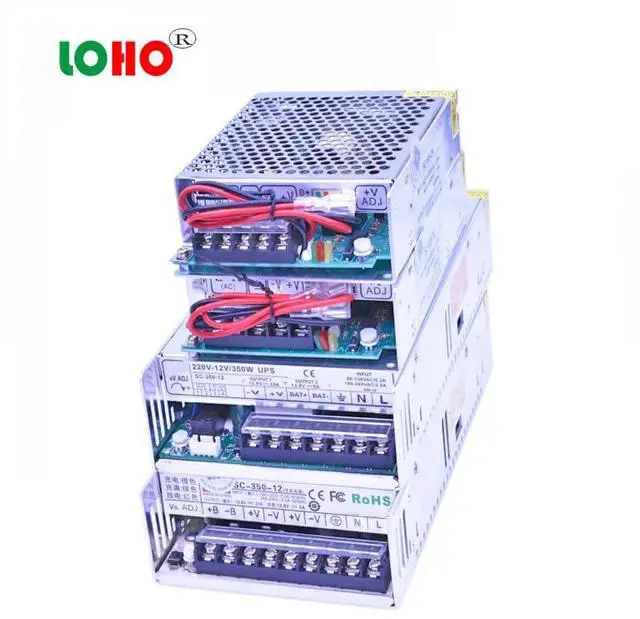

Uninterruptible Charger Switch Power Supply SC-60W 120W 180W 350W 600W UPS Adapter 110V/220V AC to DC 13.8V 27.6V Battery Charging Converter Power Supply (SC-350-24V(UPS))
- Model and brand & size: LOHODIZI ,12V30A / 12V15A / 24V7.5A / 24V15A (60W~600W ) or other Models , 0.90kg ,215x115x50mm , 198X98X38mm , 160x98x36mm,110X78X36mm (L*W*H).
- Input Voltage Range: AC100 ~ 145V or AC200 ~ 245V,Choose the proper voltage before usebefore using, to avoid damaging.
- Protection: Shortage Protection,Overload Protection,Over-voltage Protection ,Over heat protection,Over/under voltage.
- Make sure your device match the 13.8V 27.6V voltage or other models vol. ,Please don't run it overload .The max use should be no more than 85% of the full loads,otherwise, It's cause the power supply to overheat,the service life of the power supply will be greatly shortened.
- Perfect for battery charging , LCD Monitor , , CCTV Camera , Security System , electric motor and More equipment devices and LED pixel lights...
- LOHODIZI store: OEM factory competency, Most efficient technical support with superb processing technology,please feel free to contact us.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC Output : DC Voltage: 12V 24V & 13.8V 27.6V battery charging ) ... ( 60~ 120W~180W~350W ) . DC Current : 12V30A / 24V15A / 12V10A / 24V5.0A / 12V5A / 24V2.5A / 12V15A/ 24V7.5A ... There are many series models, please consult our customer service. Thank you . Ripple & Noise: 160MV , Size : 215X115X50mm , 198X98X38mm , 160X98X38mm , 110X78X36mm (L*W*H) ... DC Adjustable Range: Micro range voltage regulation . Voltage Tolerance: ±2.0% . Line Regulation: ±0.5% . Load Regulation : ±1% . Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC . AC Input AC Voltage Range: 85-264VAC . Frequency Range: 47-63Hz . Efficiency : 90% . Leakage Current<0.5mA /240VAC . Protection Over-load: 105%-150% hiccup mode,Auto-recovery . Over-voltage: 115%-135% Cut Off the Output,Auto-recovery . Over-temp. : Shut down O/P voltage, Auto-recovery . Environment Working temp.: -10~ +60C° (Refer to output load derating curve) . Working Humidity:20 ~ 90% RH, non-condensing . Storage Temp.: -10~ +60C° . Storage Humidity: 10 ~ 95% RH . Safety Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH . Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC . Safety standards: CE,RoHS and others / Customized according to customer requirements, please consult us for details ...
