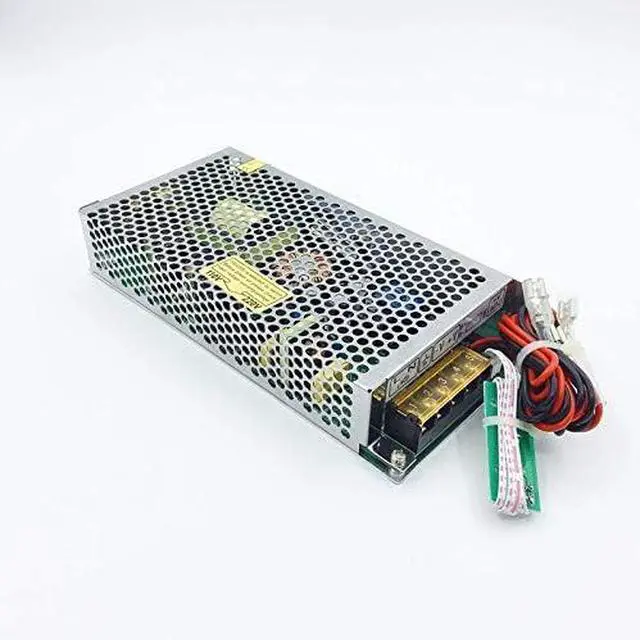

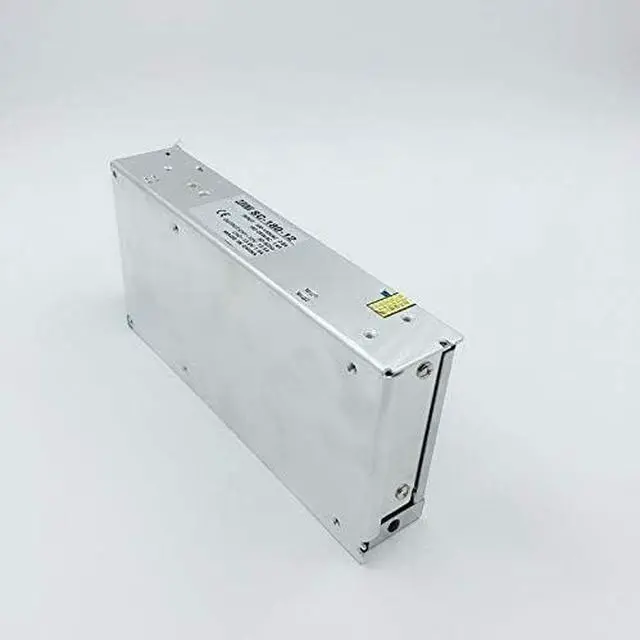

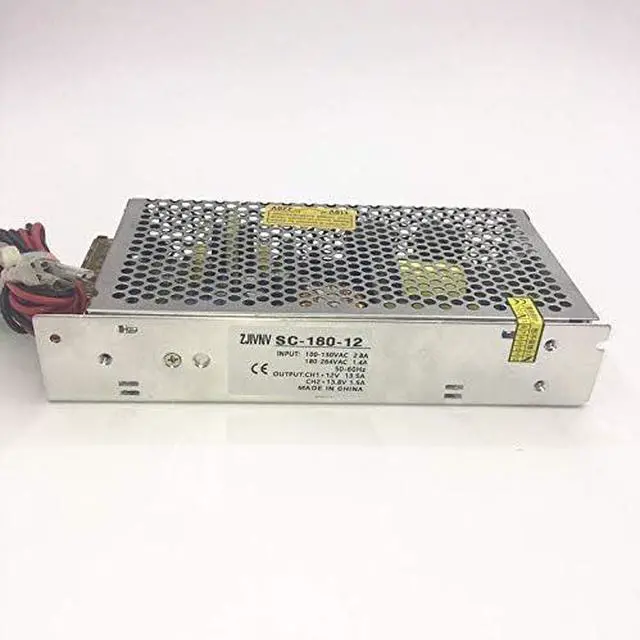

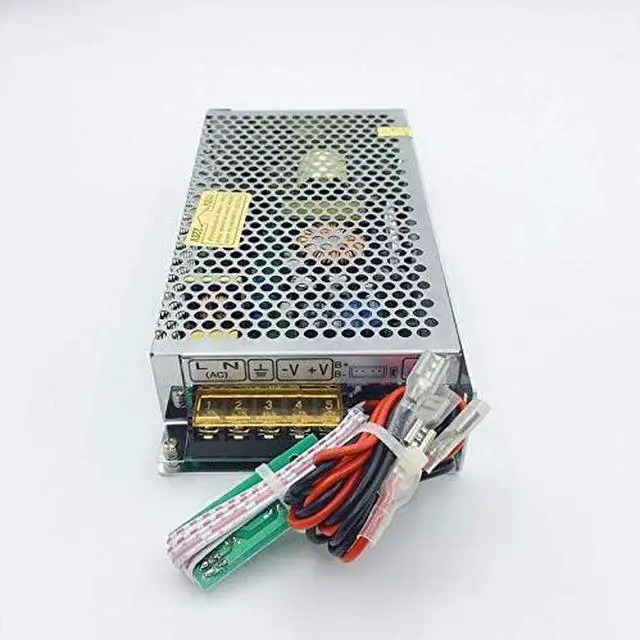

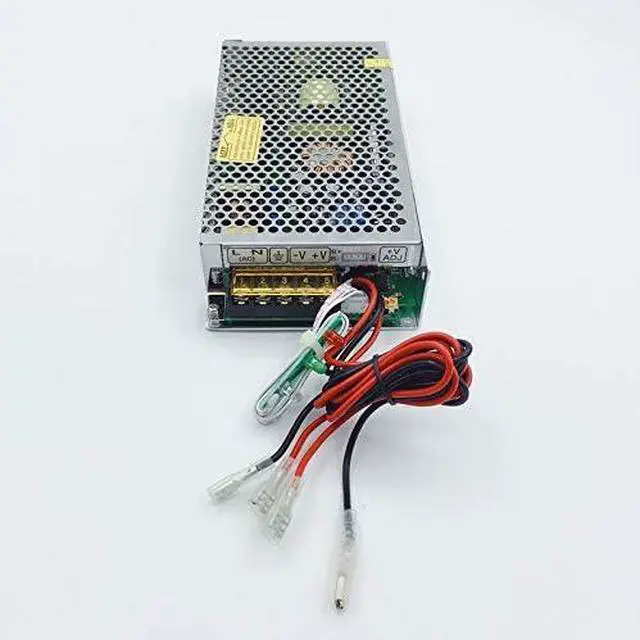

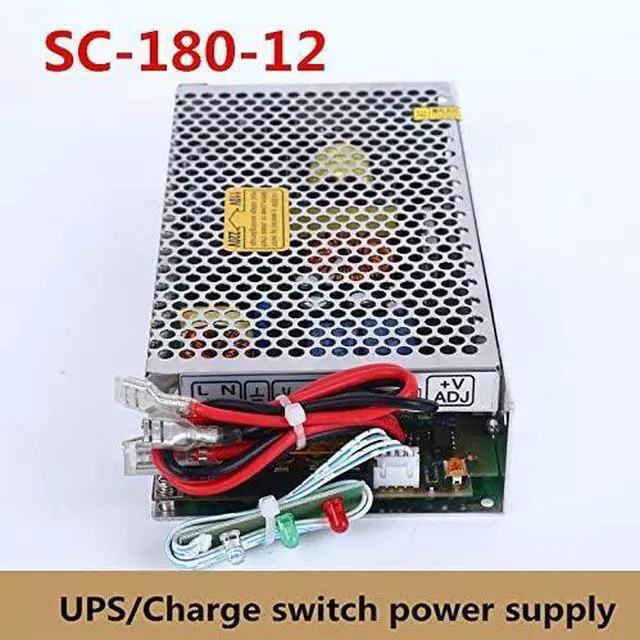

New 180W 12V 13.5A Universal AC UPS/Charge Function Monitor Switching Power Supply Input 110/220v Battery Charger Output 12VDC

New 180W 12V 13.5A universal AC UPS/Charge function monitor switching power supply input 110/220v battery charger output 12VDC

Battery type is not required, lead, lithium and other batteries all can charge.
The power supply had no request for the battery "Amp", big battery capacity charge time long, small capacity charge fast.

Specification:
Model
SC-180-12
SC-180-24

output
DC voltage
CH1:12V
CH2:13.8V
CH1: 24V
CH2:27.6V

Voltage tolerance
±2%
-----
±1%
-----

Rated current
13.5A
1.5A
6.5A
1A

Current range
0~15A
-----
0~7.5A
-----

Rated power
182.7W
182.7W

Ripple&noise120mvpp-----
180mvp-p
-----

DCvoltage ADJ.range
CH1:10.3~13.8V
CH1:21.3~27.5V

input
Voltage range
90~132VAC/ 180VAC~264VAC Select by switch ,237~370VDC

frequency
47~63HZ

AC current
2.8A/115VAC, 1.4A/230VAC

efficiency
81%
83%

Inrush current
Cold start current 30A/115VAC,50A/230VAC

Leakage current
<; 1mA/240VAC

protection
Over load
Rated output power110%~150% start over load protection

protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed

Battery protection
At low voltage
9.5~11V
20~22V

protection mode:cutoff output

Function
UPS introduction
long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs

safety
Withstand voltage
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance
