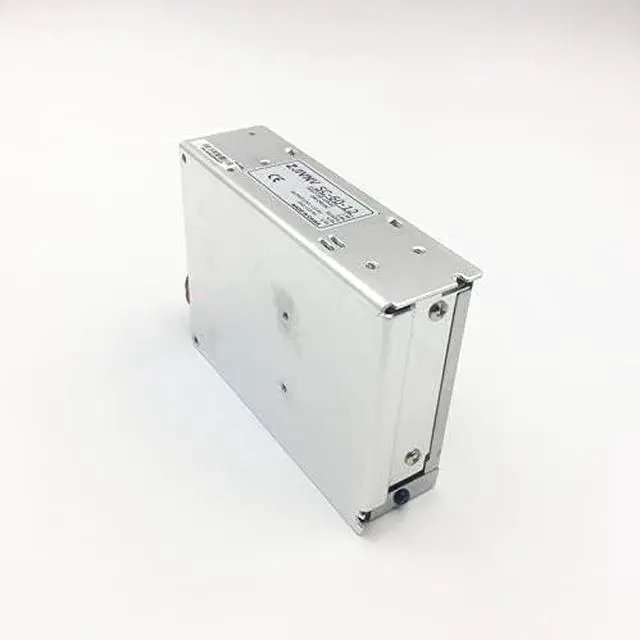

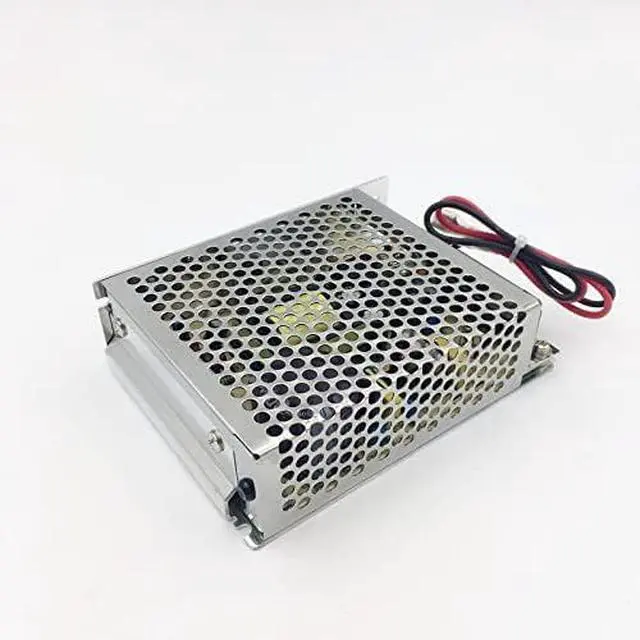

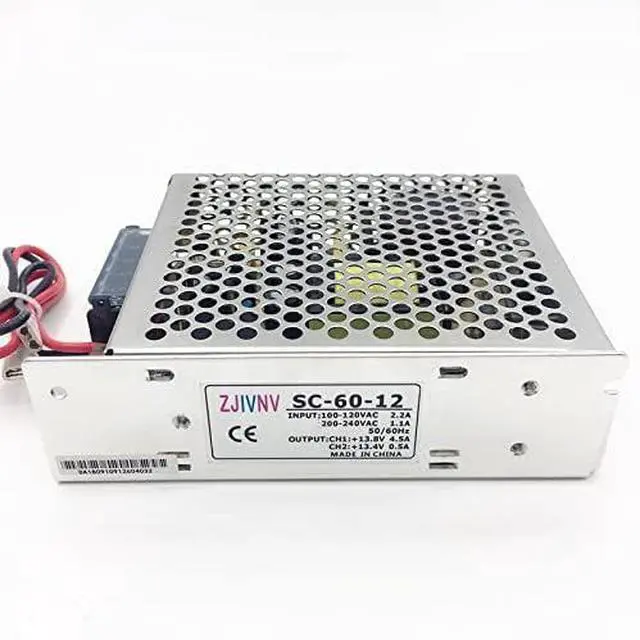

60W 12V 5A Universal AC UPS/Charge Function Monitor Switching Power Supply 13.8v, Battery Charger (SC-60-12)

60W 12V 5A universal AC UPS/Charge function monitor switching power supply 13.8v, battery charger 2 year warranty (SC-60-12)

Feature&Advantages

AC input selectable by switch
Protectionsshort circuit/overload/over voltage
Cooling by free air convection
100% full load burn-in test
Low cost,high reliability

Notes:

1.Battery type is not required, lead, lithium and other batteries all can charge.

2.The power supply had no request for the battery "Amp", big battery capacity charge time long, small capacity charge fast.

3. For the Charge voltage, if you want test it, please connect with the battery first, then test it, if not there have no output voltage for the CH2 (charege side).

Function
UPS introduction
long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs

Size: 129mm*98mm*38mm

(the user instruction):

RED LED: AC INPUT

GREEN LED: DC OUTPUT

YELLOW LED: battery charge

UPS FUNCTION: long-term online floating charge to battery,high charging efficiency, battery can saturate to more than 90% , cauto-stop charging when it's full, prevent over charging. Effectively extend battery life, AC/battery auto switch,no switch time,no need human guard,

cold-start ,when there is no AC input ,can use battery start UPS, Meet the user's emergency needs
