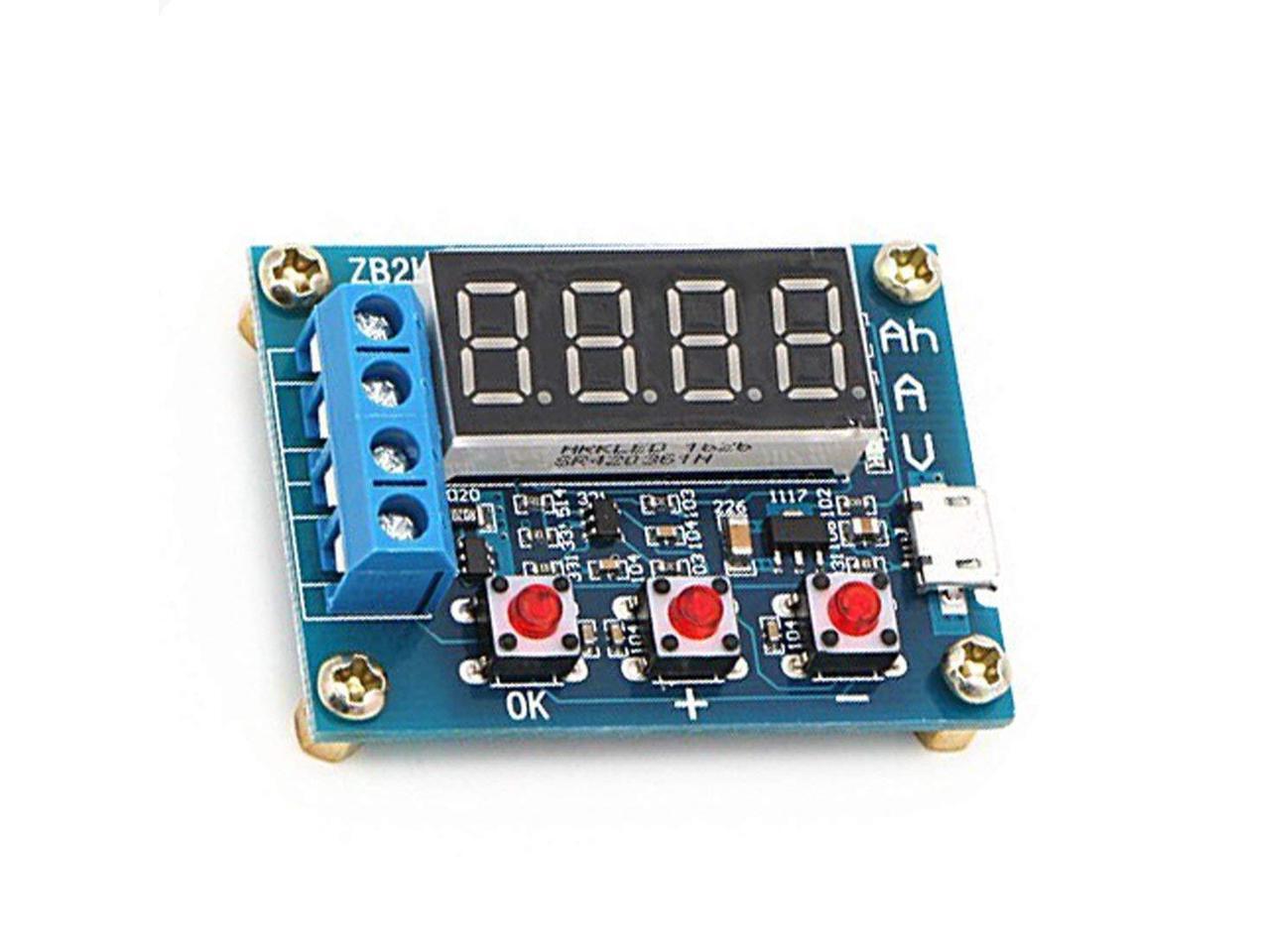

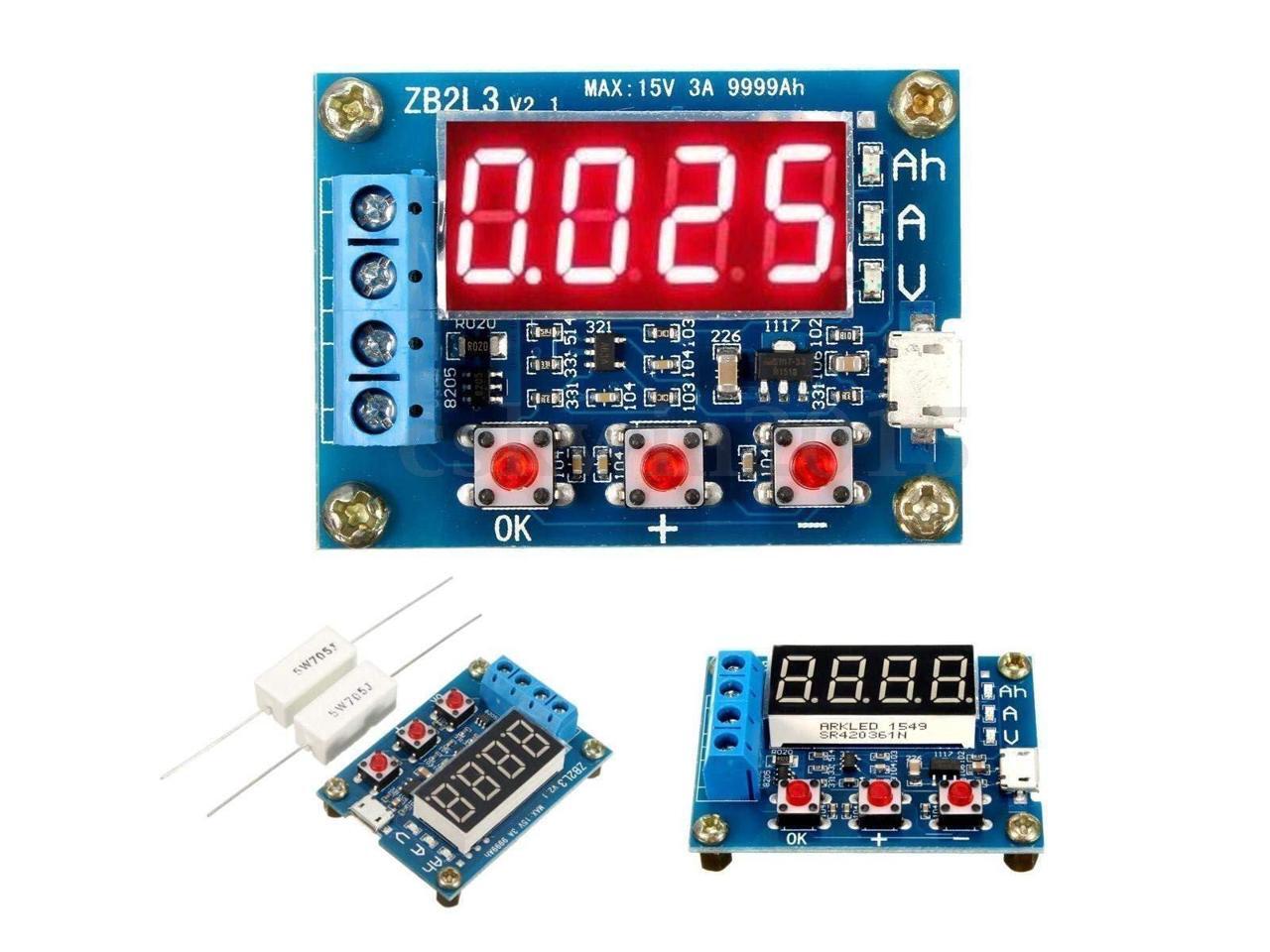

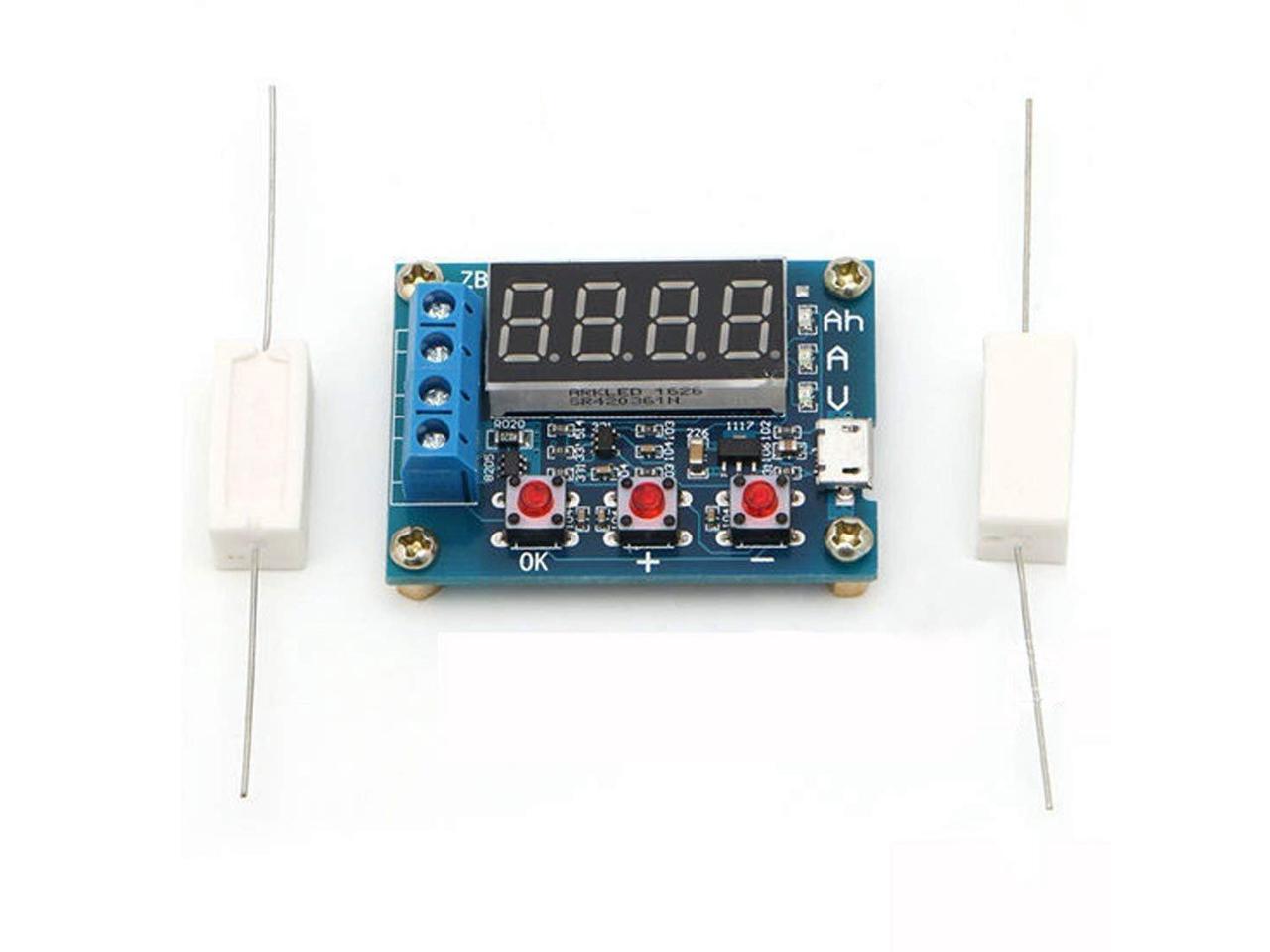

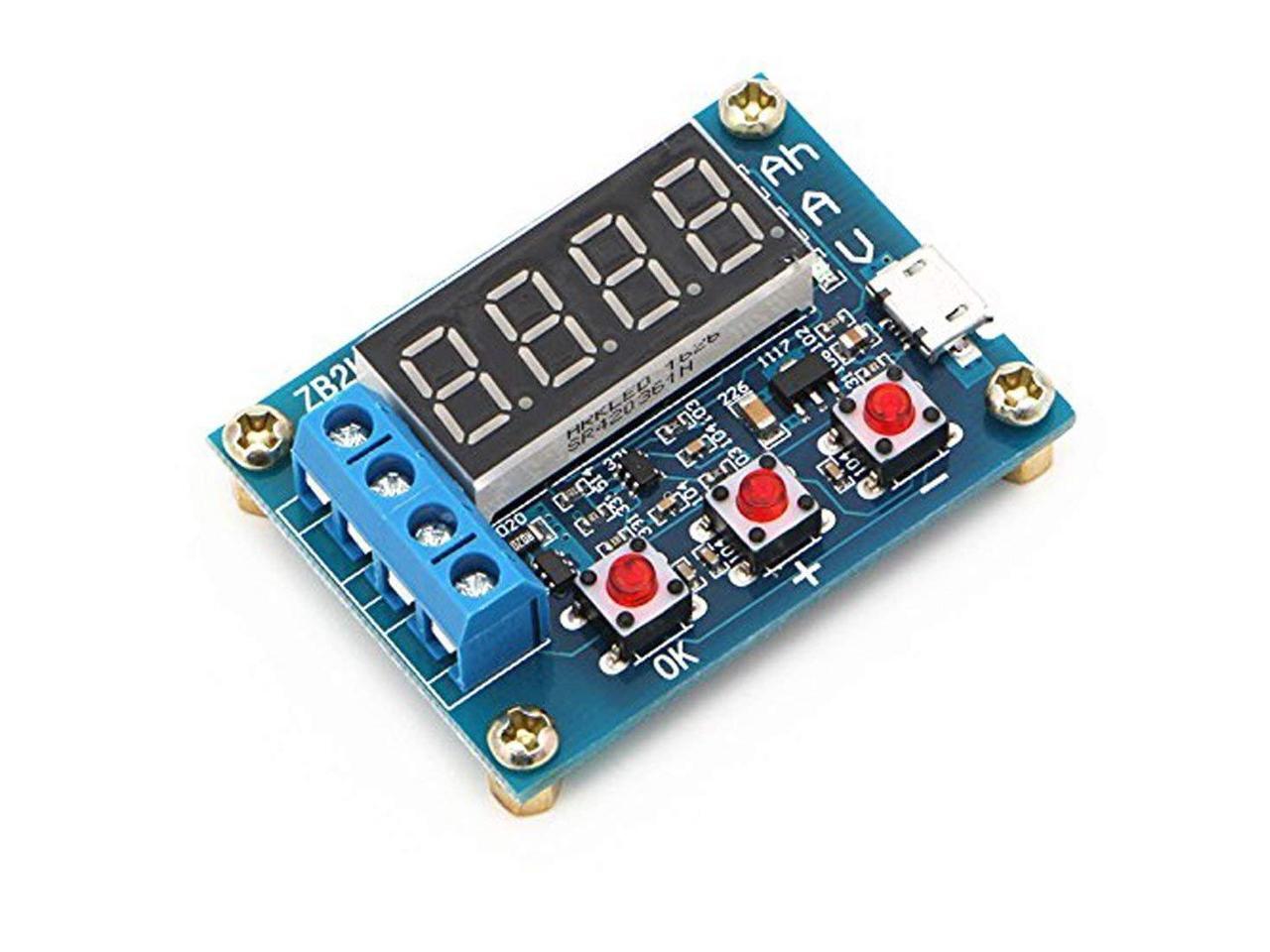

BUCIER Battery Capacity Meter Discharge Tester Analyzer 1.5V-12V Battery Capacity Meter Discharge Tester
  • Power supply voltage: DC4.5-6V (micro USB interface) ; Working current: less than 70mA. Supported by current: the maximum 3.000A resolution 0.001A.
  • The maximum measurement error voltage: 1%+0.03V ; The maximum measurement error of current: 2%+-0.010A.
  • The discharge voltage: 1.00V-15.00V resolution 0.01V ; Termination voltage range: 0.5-11.0V.
  • Board size: 50mmX34mm ; Product size: 50mmX36mmX17mm (length X width X high maximum position size, containing copper foot height)
  • Note: this circuit in order to improve the voltage measurement accuracy, specially designed DC bias.when the terminal is what all don't pick will display a small voltage, does not affect the actual measurement.if you are short connected with the input terminal (absolute 0V) will display 0. To understand the principle can consult the superposition theorem in electrical engineering.
  • $24.99 –
