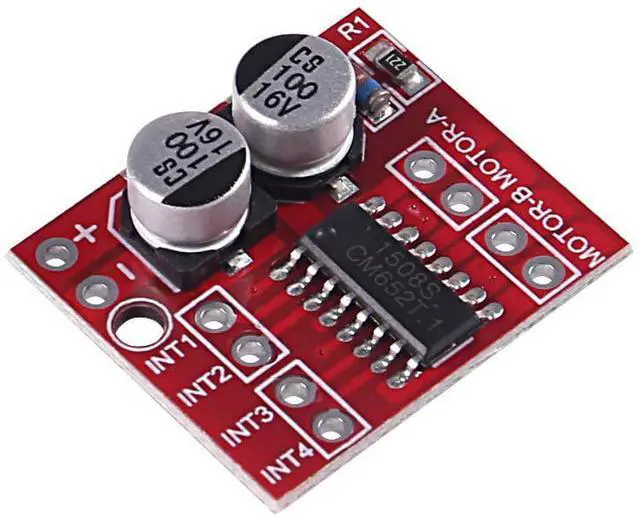

BUCIER 6Pack Mini L298N DC Motor Driver, MX1508 Mini Dual Channel 1.5A 1.5A 2 Way PWM Speed Controller Dual H-Bridge Replace Stepper

Product parameters:

The module supply voltage 2V-10V.

Signal input voltage 1.8 -7V.

Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1 uA).

Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction.

Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall.

Product size: 24.7 * 21 * 5mm (length, width, height), ultra-small size.

The mounting hole diameter: 2 mm.

Attention:

1. Power positive and negative reversed will certainly cause damage to the circuit.

2. Output is shorted to ground or output short circuit, and the motor stall, the chip will heat protection, but in the near or exceeding 10V voltage and peak current is greater than 2.5A situation can also cause chip burned.

Package Included:

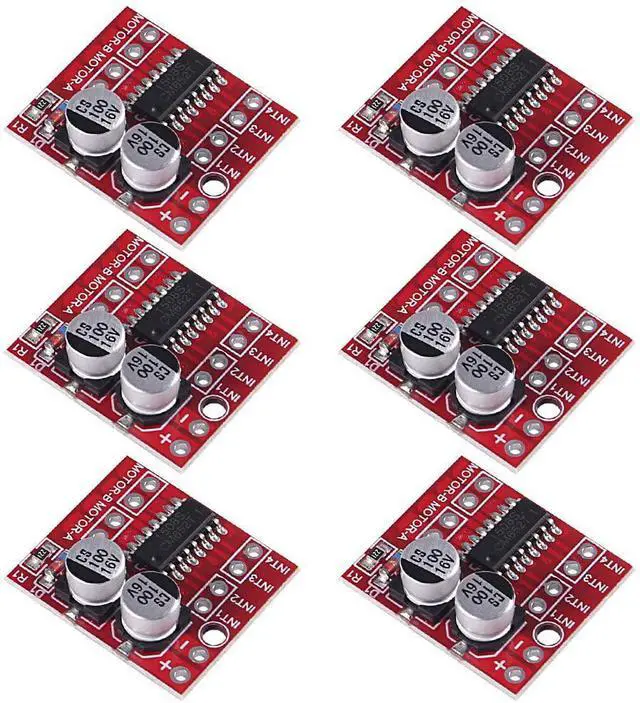

6 * Mini L298N Motor Drive Module
