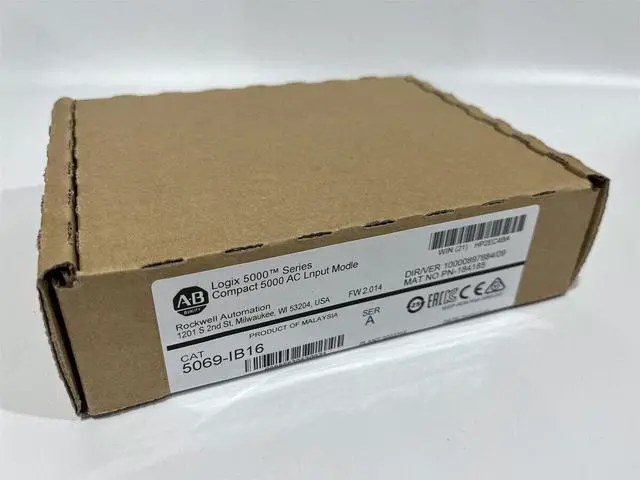

Allen-Bradley 5069-IB16F SER A Compact I/O Input Module Sealed 5069IB16

The 5069-IB16 is a 24 Volt discrete input module by Allen-Bradley in the Compact 5000 series. It offers 16 sinking input channels. It requires 6 milliamperes of current at 24 Volts DC and dissipates 3.9 Watts of power. An external power supply is recommended for SA power and MOD power. A Removable Terminal Block (RTB) is required for input signal wiring. Compatible RTB models are the 5069-RTB18-SCREW and the 5069-RTB18-SPRING.

The 5069-IB16 is a CompactLogix 16-Point I/O module that is branded and manufactured by Allen-Bradley and Rockwell Automation. Allen-Bradley and Rockwell Automations 5069-IB16 is an open-style device, meaning that it has no enclosure. The power dissipation of the 5069-IB16 lies at 3.9 Watts and the input voltage ranges from 10 Volts to 32 Volts DC. The 5069-IB16 5069 I/O module belongs to the Series A of controllers by Allen-Bradley and Rockwell Automation. The alternate part numbers for this I/O module are 5069-IB16/A, Series A, and Rev A. The dimensions of the I/O module are 138-144 x 22-25 x 105-109 millimeters.

The total number of digital inputs are 16 (one group of 16 points). The module has no digital output. The thermal dissipation of the module lies at 13.3 British Thermal Units (BTU) per hour. The single change delay time ranges about 10 milliseconds. The maximum frequency rating limits to 500 Hertz. The input voltage type is a DC plug-in connection. The allowed input voltage ranges from 12 to 24 Volts and the operating temperature range for this I/O module lies between zero (0) and 60 degree Celsius. The storage temperature ranges from -40 to 85 degrees Celsius.

The off-state current lies at 1.5 milliamperes. This 5069-IB16 utilizes LED indicators for updating the status of the module (1 green or red) and updating the I/O status (16 yellow or red). Additional features include its small form factor, shareable output status among Logix 5000 controllers, high performance control, overvoltage protection of 36 Volts, and DIN rail mounting. The 5069-IB16 also offers reverse polarity protection.
