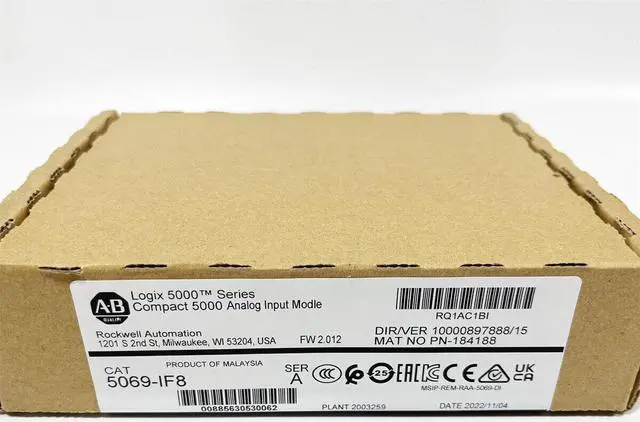

Allen Bradley 5069-IF8 Ser A Compact 5000 Analog Input Module 5069IF8 Factory Sealed

The Allen-Bradley 5069-IF8 is an analog module. Analog modules convert analog data into digital values for input and convert digital value inputs to analog values outputs. These signals are used by controllers for control purposes. The Allen-Bradley 5069-IF8 module uses Removal Terminal Blocks in order to connect field-side wiring. This device is equipped with an open-type enclosure and 8 LEDs. This product has a maximum current of 75 milliamperes. The operating temperature range of this device is 0 to 60 degrees Celsius.



The 5069-IF8 is an analog input module for Compact I/O. It features a total of eight differential input channels. The producer-consumer network communication paradigm is used in this module. This sort of communication is intelligent in the sense that it exchanges data between modules and other connected devices, with each module producing data without being polled first. When this module is operated by users with the Logix 5000 control system, the owner-controller stores configuration data for each of its modules, which is then backed up in a location beside the 5069 Compact Input or Output system, and also transfers the configuration data of the Input or Output module to define the behavior of the module and start running.

The 5069-AEN2TR Ethernet/IP adapter supplies system and field power to the 5069-IF8 Compact I/O system. The 5069 I/O module requires system-side power to transport data and perform logic. Furthermore, the 5069 Compact Input or Output system requires field-side current to power up the field-side devices linked to the 5069 Compact Input or Output system. The drive includes 8 LEDs in an open-type housing. The voltage for the 5069-IF8 bus power module is 18 to 32 volts direct current (DC). It has a maximum current of 75 milliamperes. The field power range of the 5069-IF8 is 18 to 32 volts DC, while the pass-through voltage range is 0 to 32 volts DC.

The maximum power dissipation for the 5069-IF8 is 2.1 watts in voltage mode and 2.4 watts in current mode. The rated thermal dissipation for the 5069-IF8 is 7.2 BTU/hr in voltage mode and 8.2 BTU/hr in current mode. This module has an operating temperature that ranges from 0 to 60 degrees Celsius.
