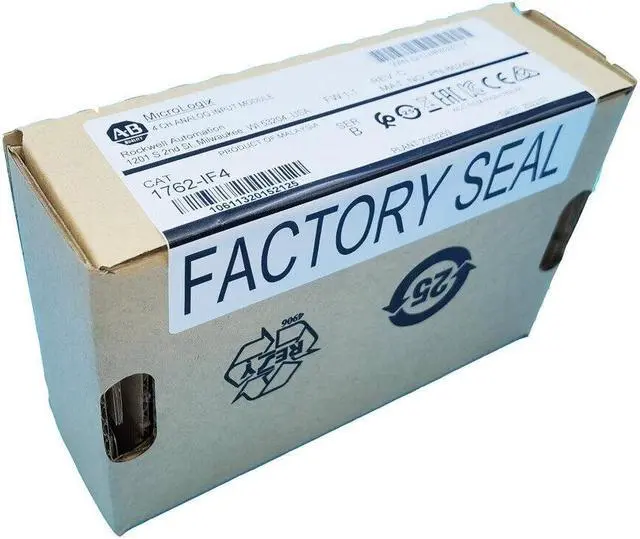

Allen Bradley 1762-IF4 AB SER B MicroLogix 4 Point Analog Input Module Factory Sealed

The 1762-IF4 is an Allen-Bradley MicroLogix 1200 is an analog input module with four input channels and a Delta Sigma Converter. The module is widely used for industrial applications all over the world. The module allows expansion and additional I/O to the system. For this module, the range of operating full scale voltage is - 10.5 to 10.5 V. Similarly the operating range for full scale current is -21 to 21 mA. The module operates on 5 to 24 V DC power provided by the 1762 bus interface. For attaching the module to any surface, flat ribbon cable is used.

The installation method of the MicroLogix base module specifically, DIN rail or direct panel mounting is used. It supports multiple wiring configurations such as 2, 3 and 4. All safety protocol should be practiced during installation and troubleshooting of the device. Just like the other modules, this module should also be installed in clean and dry environments that meet the criteria for installation. If these criteria are not met then the site is unsafe and hazardous. Input signal type selection is made through the provided DIP switches. The module has a dimension of 90 mm height, 87 mm depth and 40 mm width.

Additionally, the approximate shipping weight of this product is 235 grams, or 8.28 ounces. The recommended temperature range for this product to be operated ranges from -20 to 65 degrees Celsius.
