$1,059.00
Meet Your Seller

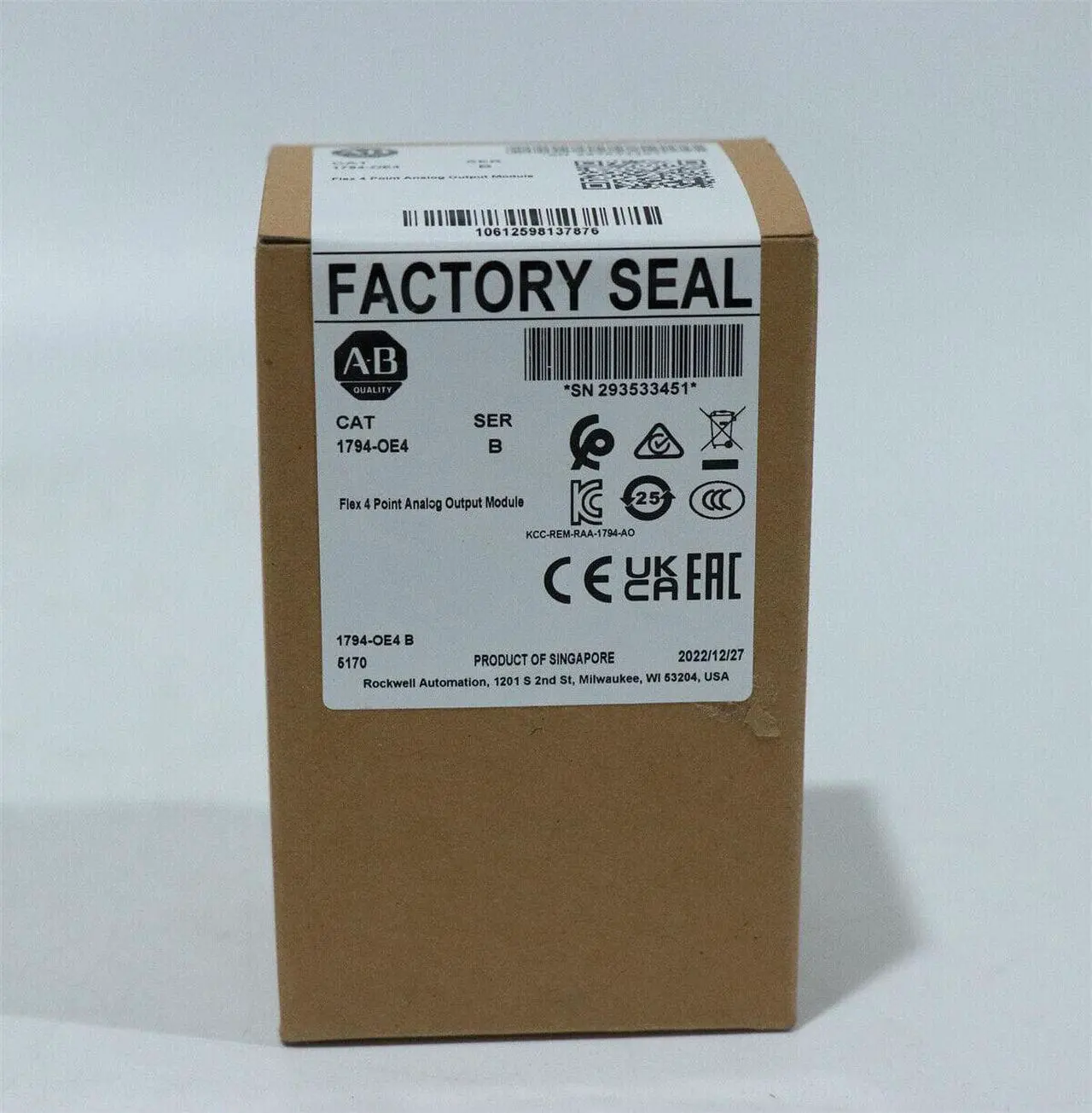

Allen Bradley 1794-OE4 /B Flex 4 Point Analog Output Module 1794OE4
- Manufacturer: Allen Bradley - PLC
- Product Type: PLC/Programmable Logic Controller
- Part Number: 1794-OE4
- Series: Flex I/O 1794
- UPC: 10612598137876
- Outputs: 4 Single-Ended, Non-Isolated
- Maximum Output Current: 020 milliAmps
- Nominal External DC Power Supply: 24 Volts DC
- Nominal Output Voltage Range: +/- 10 Volts
- Maximum Voltage Output Current Load: 3 milliAmps
- Dimensions (Approx.): 45.7 x 94.0 x 53.3 millimeters (1.8 x 3.7 x 2.1 Inches)
- External DC Power Supply Voltage Range: 19.2 to 31.2 Volts DC
- FlexBus Current: 70 milliAmps
- Isolation Voltage: 50 Volts, Continuous
- Maximum Power Dissipation: 4.0 Watts at 31.2 Volts DC
- Maximum Thermal Dissipation: 13.6 British Thermal Units (BTU) per Hour at 31.2 Volts DC
- Operating Temperature: 0 to 55 degrees Celsius
- Non-Operating Temperature: -40 to 85 degrees Celsius
- Relative Humidity: 5% to 95%, Non-Condensing
- Vibration: 5 g at 10500 Hertz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 1794-OE4 is a FLEX I/O High-Density Analog Module by Allen-Bradley and Rockwell Automation. It has 4 single-ended, non-isolated outputs and a maximum output current of 0-20 milliAmps. This hardware has a nominal external DC power supply of 24 Volts DC.
