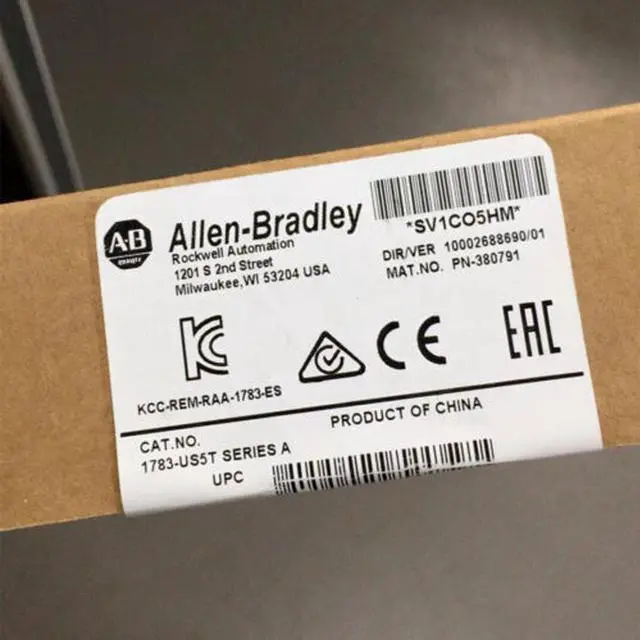

Allen Bradley 1783-US5T SER B Stratix 2000 Ethernet Switch 5 Pt AB 1783US5T New Factory Sealed

The 1783-US5T is a Stratix 2000 ethernet unmanaged switch that was manufactured by the Allen-Bradley company. This device has five (5) RJ45 ports. This product allows for communication and interaction between multiple Ethernet devices. The broadcast storm threshold rating for this Allen-Bradley product is twenty (20) packets per second for ten (10) Mbps (megabytes per second) per port or two hundred (200) packets per second for one hundred (100) Mbps per port. This product has a maximum power dissipation of two (2) watts at twenty-four (24) volts AC/DC. The in-rush current of this device is 2.2 amperes (A) at maximum.

The power supply rating for the Ethernet module is 24 volts (18 to 60 volts DC and 18 to 30 volts AC at a frequency of 50 to 60 hertz), Class 2/SELV. The isolation voltage rating offered by this device is thirty (30) volts continuous, with a basic insulation type.




The DC power connections of this Allen-Bradley product should be 0.75 to 2.5 mm² (18 to 14 AWG) twisted-pair copper wire that is suitable for thirty degrees Celsius (30 °C), or eighty-six degrees Fahrenheit (86 °F), above the surrounding temperature. The recommended operating temperature range is around 0 to 60 degrees Celsius while the non-operating is -40 to 85 degrees Celsius. The relative humidity should be around 5 to 95% non-condensing. The vibration rating for the module is 2 g at 10 to 150 hertz, The operating shock is around 15 g while the non-operating shock is around 30 g.

The module has a power consumption of around 3.4 watts. The dimensions of 1783-US5T are 115 x 100.8 x 30 millimeters and the module has an open-type enclosure.
