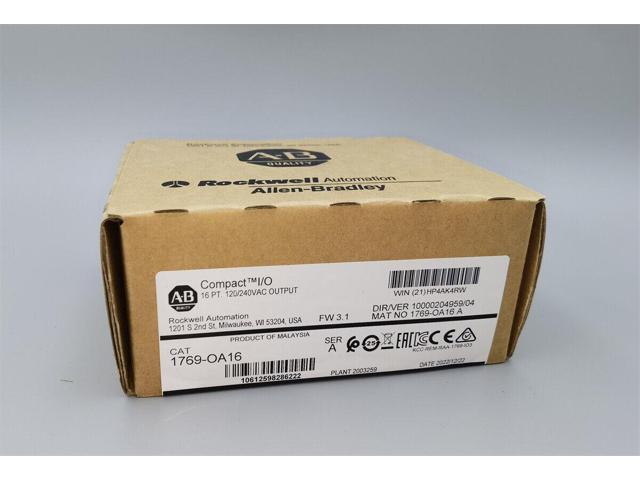

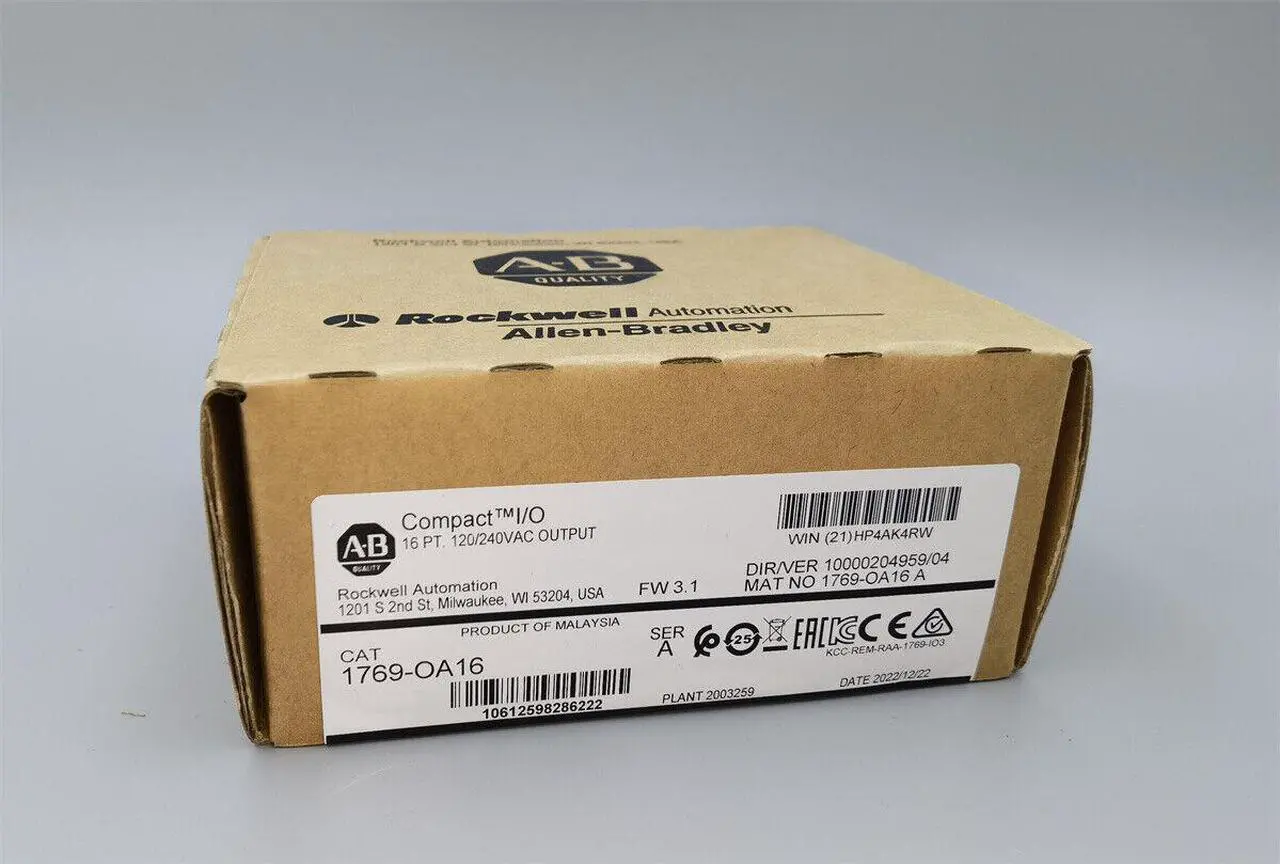

Allen Bradley 1769-OA16 /A CompactLogix 16 Pt 240VAC D/O Module New Sealed

The 1769-OA16 module is an Allen-Bradley/Rockwell Automation solid-state output module with a compact design. The voltage category of this unit is 120 to 240 volts AC. This module has 16 output points and an operating voltage range of 85 volts AC to 265 volts AC at a frequency range of 47 to 63 hertz. The heat dissipation rating of this module is 4.9 total watts. The operating temperature range is 0 to 60 degrees Celsius.
The Allen-Bradley 1769-OA16 compact AC solid-state module has 16 outputs. The 1769-OA16 operates between 85 volts and 265 volts AC at frequencies from 43 hertz to 63 hertz. This module can be employed by controllers such as the CompactLogix controller or the MicroLogix 1500 controller. The 1769-OA16 module can be employed in several applications mainly in the industrial field. The 1769-OA16 module can be assembled with a 1769-ADN DeviceNet adapter or with a 1769-AENTR Ethernet adapter. The 1769-OA16 module can be mounted on well-grounded panels using two mounting M4 or #8 screws or on either EN 50 022 - 35 x 7.5 or EN 50 022 - 35 x 15 DIN rails.

The minimum on-state voltage for this module is 85 volts AC and the output delay is 0.5 cycle. The 1769-OA16 digital input module draws a maximum on-state current of 10 milliamps and a minimum on-state current of 2 milliamps. This Allen-Bradley 1769-OA16 AC solid-state output module can be supplied through 1769 Compact I/O power supplies such as 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 power supplies except when connected to a MicroLogix 1500 base with a current consumption of 225 milliamps. This 1769-OA16 module supports shielded or twisted-pair Belden 8761 wire or equivalent wires. The 1769-OA16 Allen-Bradley module can be connected easily to either the controller or to an adjacent I/O module before or after mounting.

The surge current that the module can handle is 5 amps. The 1769-OA16 16-point module is intended for use in a mainly industrial environment that is clean and dry. The 1769-OA16 module provides two isolated groups with 8 points per group which permit to mix 120 volts and 240 volts AC sources. This module weighs approximately 280 grams ( 0.61 pounds) while shipping. This Allen-Bradley module works properly at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
