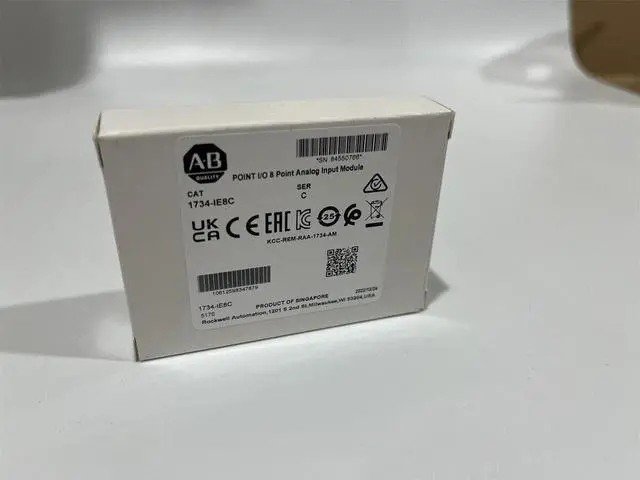

Allen Bradley 1734-IE8C POINT I/O 8 Channel Analog Input Module 1734IE8C New Factory Sealed
- Brand Allen-Bradley/Rockwell Automation
- Part Number: 1734-IE8C
- Series: Point I/O 1734
- Product Type High Density Current Input Module
- Inputs 8, Single-Ended, Non-Isolated, Current Inputs
- Resolution 16 Bits over 021 milliamperes
- Absolute Accuracy (Current Terminal) 0.1% Full Scale at 25 degrees Celsius
- Input Impedance 60
- Conversion Type Delta Sigma
- Common Mode Rejection Ratio -120 decibels
- Data Format Signed Integer
- Factory Calibration Yes
- Enclosure Type Rating Open-Style
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 1734-IE8C is a POINT I/O 8-Channel High Density Current Input Module that is manufactured by Allen-Bradley and Rockwell Automation. The 1734-IE8C has 8 single-ended, non-isolated, current inputs and a resolution of 16 Bits over 021 milliamperes. Input current terminal is 420 milliamperes and 020 milliamperes. The 1734-IE8C has a current terminal absolute accuracy of 0.1 % Full Scale at 25 degrees Celsius. Current terminal accuracy drift with temperature is 30 ppm per degree Celsius. Input impedance is 60 and it has a Delta Sigma conversion type. Common mode rejection ratio for the 1734-IE8C is -120 decibels.
Additional input specifications include Signed Integer data format, maximum overload that is fault protected to 28.8 Volts DC, factory calibration, and logic side indicators for network, module, and input status.
General specifications include a maximum POINTBus current of 75 milliamperes, maximum power dissipation of 0.6 Watts at 28.8 Volts DC, and maximum thermal dissipation of 2.0 British Thermal Units (BTU) per hour at 28.8 Volts DC. The 1734-IE8C has an isolation voltage of 50 Volts, tested at 1500 Volts AC for 60 seconds (inputs and field power to system no isolation between individual inputs or inputs to field power). The 1734-IE8C has a backplane supply voltage of 5 Volts DC and available input currents of 420 milliamperes and 020 milliamperes. It has approximate dimensions of 56.0 x 12.0 x 75.5 millimeters, or 2.21 x 0.47 x 2.97 inches.
The 1734-IE8C has an approximate weight of 36 grams, or 1.235 ounces. It has an open-style enclosure type rating. Environmental specifications for the 1734-IE8C include an operating temperature that ranges between -20 and 55 degrees Celsius (-4 to 131 degrees Fahrenheit) and a maximum surrounding air temperature of 55 degrees Celsius (131 degrees Fahrenheit). Non-operating temperature ranges between -40 and 85 degrees Celsius (-40 to 185 degrees Fahrenheit) and relative humidity is 5% to 95% (non-condensing).
Additional input specifications include Signed Integer data format, maximum overload that is fault protected to 28.8 Volts DC, factory calibration, and logic side indicators for network, module, and input status.
General specifications include a maximum POINTBus current of 75 milliamperes, maximum power dissipation of 0.6 Watts at 28.8 Volts DC, and maximum thermal dissipation of 2.0 British Thermal Units (BTU) per hour at 28.8 Volts DC. The 1734-IE8C has an isolation voltage of 50 Volts, tested at 1500 Volts AC for 60 seconds (inputs and field power to system no isolation between individual inputs or inputs to field power). The 1734-IE8C has a backplane supply voltage of 5 Volts DC and available input currents of 420 milliamperes and 020 milliamperes. It has approximate dimensions of 56.0 x 12.0 x 75.5 millimeters, or 2.21 x 0.47 x 2.97 inches.
The 1734-IE8C has an approximate weight of 36 grams, or 1.235 ounces. It has an open-style enclosure type rating. Environmental specifications for the 1734-IE8C include an operating temperature that ranges between -20 and 55 degrees Celsius (-4 to 131 degrees Fahrenheit) and a maximum surrounding air temperature of 55 degrees Celsius (131 degrees Fahrenheit). Non-operating temperature ranges between -40 and 85 degrees Celsius (-40 to 185 degrees Fahrenheit) and relative humidity is 5% to 95% (non-condensing).
