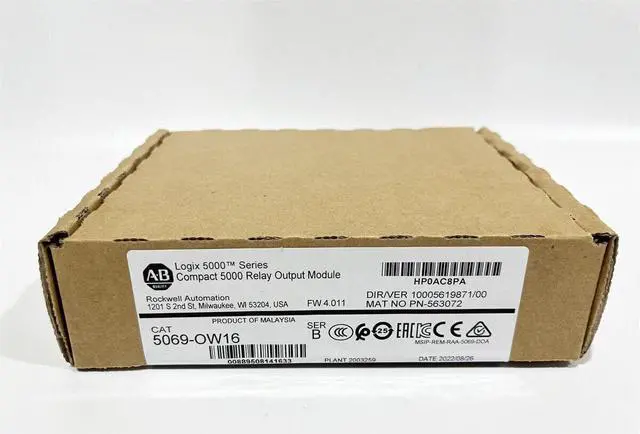

Allen Bradley 5069-OW16 Compact 5000 Relay Output Module NEW Sealed 5069OW16

This Allen-Bradley 5069-OW16 is a compact 5000 relay output module. This module has 16 outputs that are organized into two groups of eight. This 5069-OW16 module operates in the range of 5 to125 volts DC and 5 to 264 volts AC. The 5069-OW16 has a switching frequency of one operation every three seconds ( 0.3 Hz at rated load). This module 5069-OW16 has an output current of 8 amperes per group and 16 amperes per module.




This 5069-OW16 is a compact relay output module that is produced by Allen-Bradley. This module features 16 normally open outputs that are arranged into two groups of eight. The module has an output voltage range of either 5 to 125 volts DC or 5 to 264 volts AC. This 5069-OW16 output module is part of the compact 5000 input/output product family, and it is best suited for CompactLogix 5380 & Compact GuardLogix 5380 controllers. This output module can function as both a local and a distributed input/output component with controllers. In addition to this, this module can be served as a distributed input/output component with the other ControlLogix controllers.

This output module features output ratings of eight amperes per group and sixteen amperes per channel, with 10 milliseconds switching delay for both signal transitions. This output module also has an initial contact resistance of 30 meters maximum and a bounce time of 500 µs. Each channel of this module has a switching frequency of one operation for every three seconds or 0.3 Hz at the rated load. This output module's expected contact life is 300K cycles for resistive loads and 100K cycles for inductive loads.
