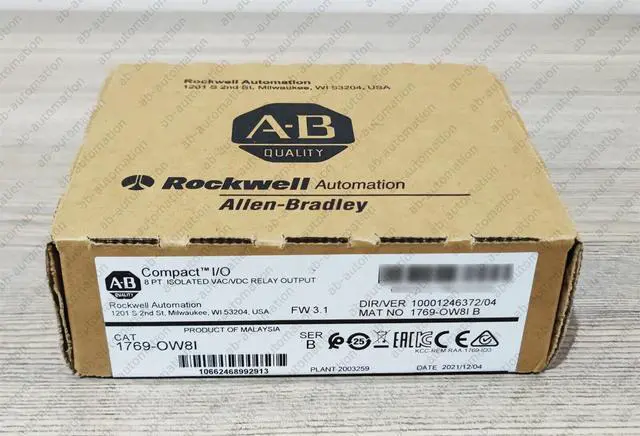

Allen Bradley 1769-OW8I SER B CompactLogix Relay Output Module Allen Bradley 1769OW8I
- Manufacturer: Allen Bradley - PLC
- Product Type: PLC/Programmable Logic Controller
- Part Number: 1769-OW8I
- Series: CompactLogix
- Number of outputs: 8 normally open, individually isolated (4 points/group)
- Operating voltage range: 5265V AC, 5125V DC
- Current draw at 5.1V / 24V: 125 mA / 100 mA
- Heat dissipation: 2.83 W
- Current per module, max: 16 A
- Wire size and type: 0.325 2.080 mm2 (2214 AWG) solid copper wire or 0.3251.310 mm2 (2216 AWG) stranded copper wire rated at 90 °C (194 °F ) insulation max
- Current per point: 2.5 A
- Operating temperature range: 0 °C...60 °C (32 °F...140 °F)
- Dimensions (H x W x D), approx: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height including mounting tabs is 138 mm (5.43 in.)
- Weight: 290 g (0.64 lb)
- Module location: DIN rail or panel mount
- Type: PLC Output Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 1769-OW8I is a compact I/O expansion module. This module has eight individually isolated form A relay output channels. It has two groups of four channels each. This module is designed for an operating voltage range of 5 to 265 VAC and 5 to 125 VDC. It is compatible for use with MicroLogix 1500 and CompactLogix controllers. The module is meant for panel or DIN rail mounting. The 1769-OW8I has a maximum heat dissipation of 2.83 W.
