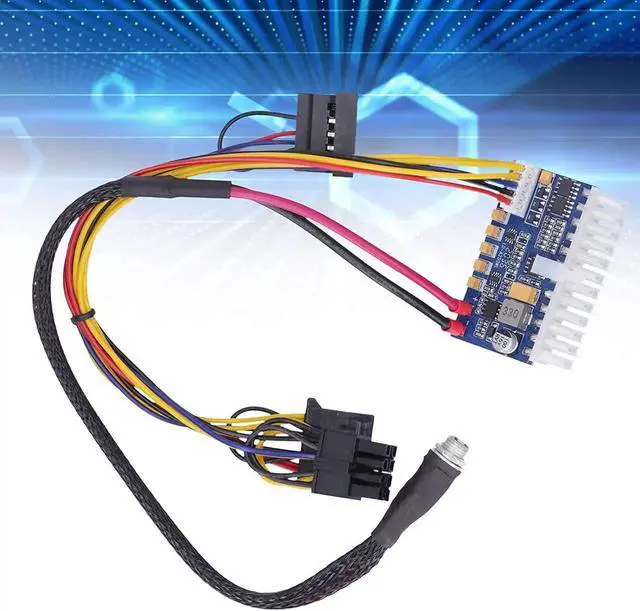

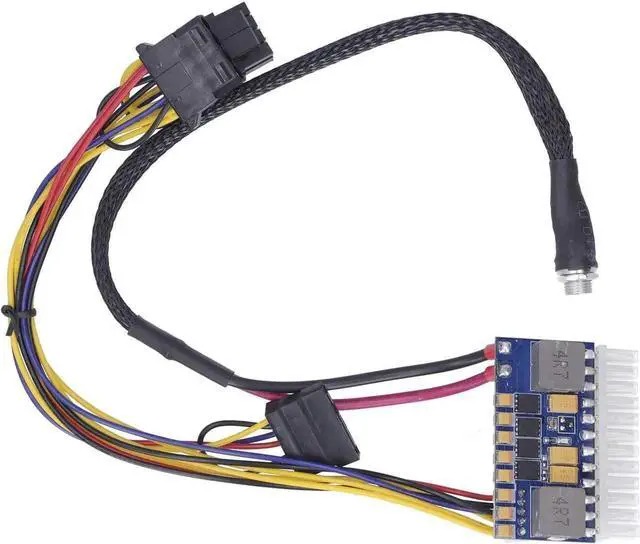

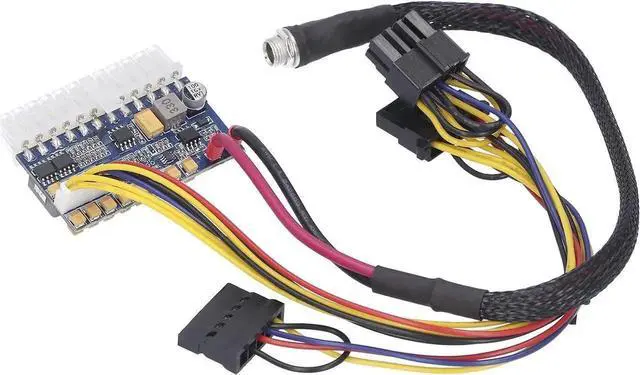

LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

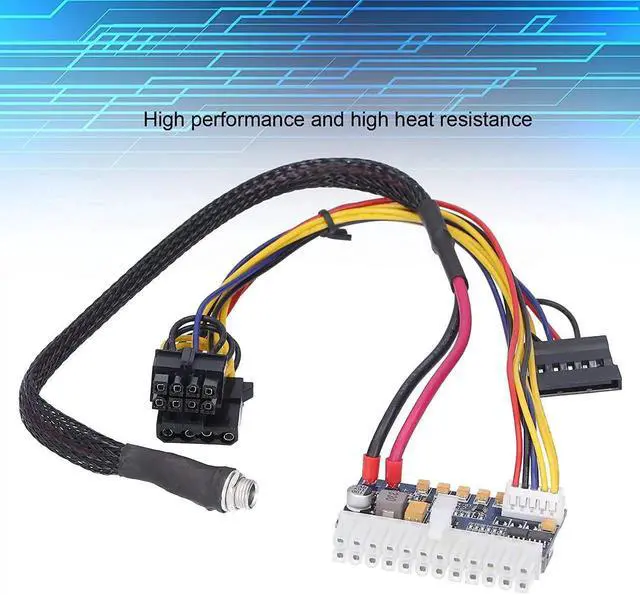

The adapter plate has high performance, high heat resistance and more reliability.
By directly inserting the motherboard ATX connector to eliminate 24 unnecessary wires, suitable for small ATX boards, saving space in the case.

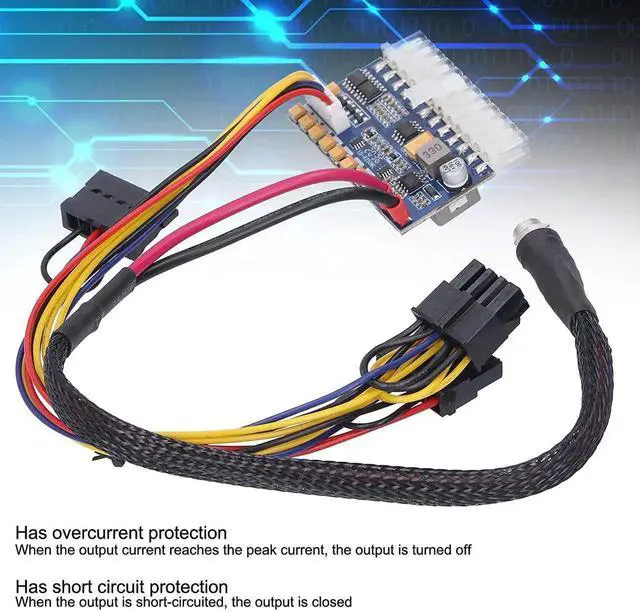

With overcurrent protection: when the output current reaches the peak current, the output is turned off.
With short circuit protection: when the output is short circuited, the output is turned off.
Output voltage/maximum load is +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Spec:

Item Type: Power Supply Adapter Board

Model: LD-A250WL

Material: PCB

Power: 250W

Input Voltage: 12V

Output Voltage/maximum Load: +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A

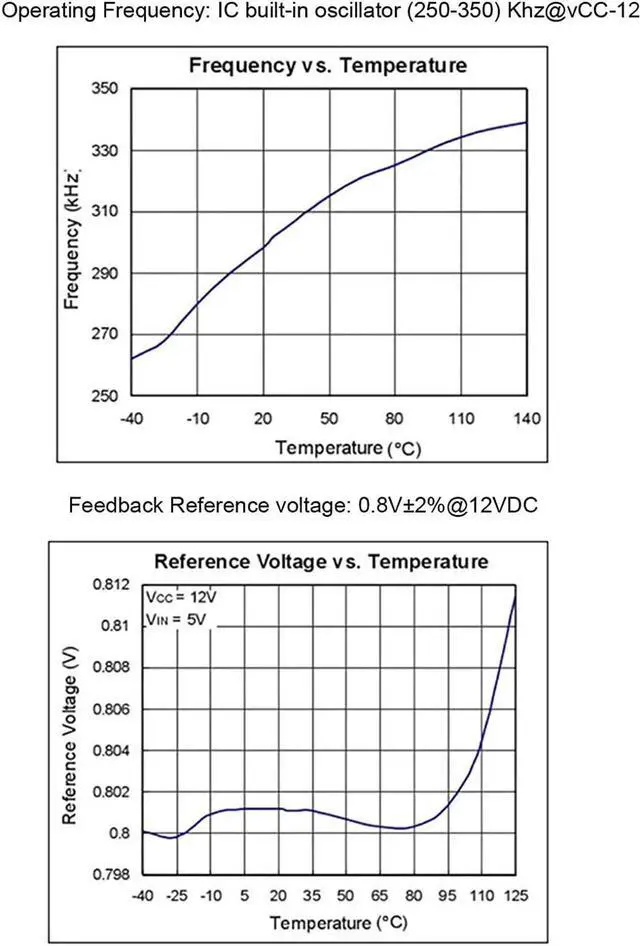

Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V

Feedback Reference Voltage: 0.8V±2% at 12VDC

Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x IDE, 1 x DC5525

Cable Length: DC Cable Length: Approx. 320mm / 12.6in

CPU Cable Length: Approx. 210mm / 8.3in

IDE Cable Length: Approx. 200mm / 7.9in

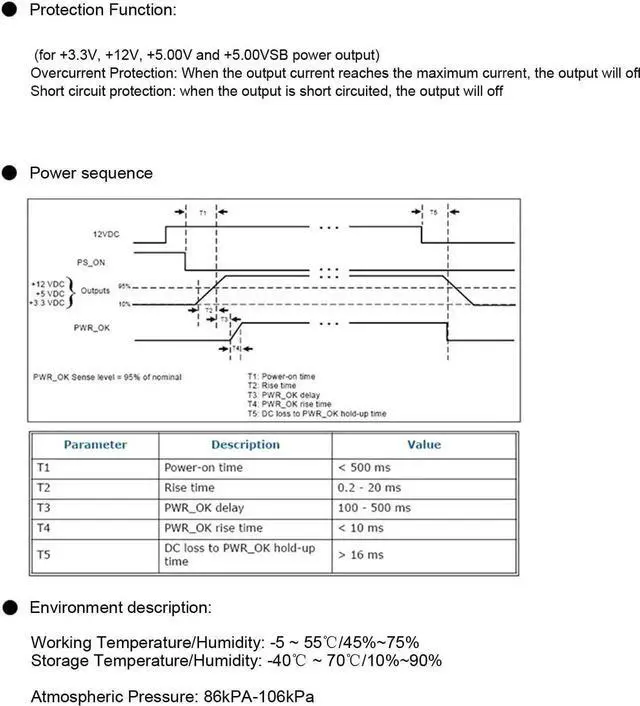

Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)

Overcurrent Protection: When the output current reaches the peak current, the output is turned off

Short Circuit Protection: When the output is short circuited, the output is closed

Working Temperature/humidity: -5 ~ 55/45%~75%

Storage Temperature/humidity: -40 ~ 70/10%~90%

Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.

PackageList:

1 x Power Supply Adapter Board
