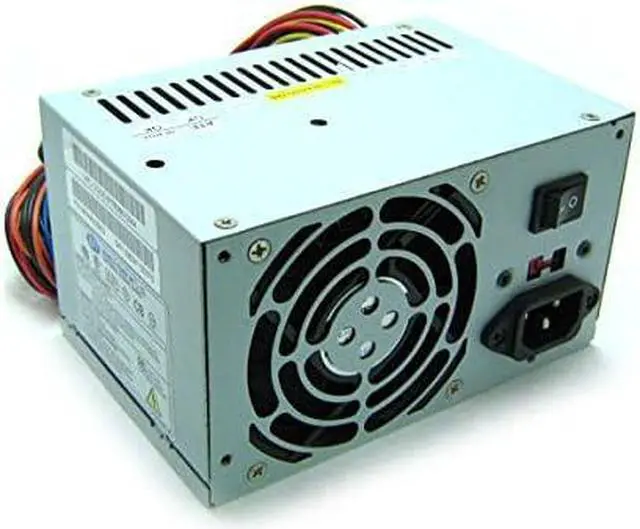

SPI FSP350-60GNV 350W SFX 20+4PIN 8CM BB Fan APFC Auto Ranging Rohs Power Supply

Key Features Output Power 350 W Warranty 1 Year Form Factor Micro ATX AC Input 90V - 265V MTBF 100,000 Hours Fan Features 8cm Fan Dimensions WxDxH 5" x 5.1" x 2.5" Connectors 20 Pin Detail Specifications Input Range - 90 to 265Vac (RMS), Full Range Input Frequency - 47 to 63Hz Input Current - 4.5A (RMS) at 115Vac, 2A (RMS) at 230Vac Inrush Current - No damage, typical 80A Max at cold start Dielectric Withstand - Input to frame ground 1800 VAC for 1 second Efficiency - 75% at minimum measured at nominal AC main voltage and frequency with full load on all outputs Rise time - Less than 20ms Hold-up Time - 17ms minimum at nominal input voltage Power Good Signal - Power on delay time 100 to 500ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current - Not exceed 3.5mA MTBF - 100,000 hours on maximum load at +25C Dimensions (LxWxH) - 130x125x63.5mm/5.1x5x2.5inch Low noise and ripple Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950 or VDE EN60950, NEMKO EN60950 (CB Report), CE - Complied with SFX and SFX12V standard - Active Power Factor Correction (PFC) meet EN61000-3-2 - High efficiency and reliability - Remote ON/OFF function - Internal 12V DC fan included - Noise Killer (thermal fan speed control function) - Low noise and ripple - Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation - Output over voltage, short circuit, and over current protection - 100% Hi-pot, ATE, and burn-in tested - Re-settable power shut down - Approved by UL60950, CSA C22.2 NO. 60950, TUV EN60950 or VDE EN60950, NEMKO EN60950 (CB Report), CE Weight - 3.50lbs Warranty - 1 year
