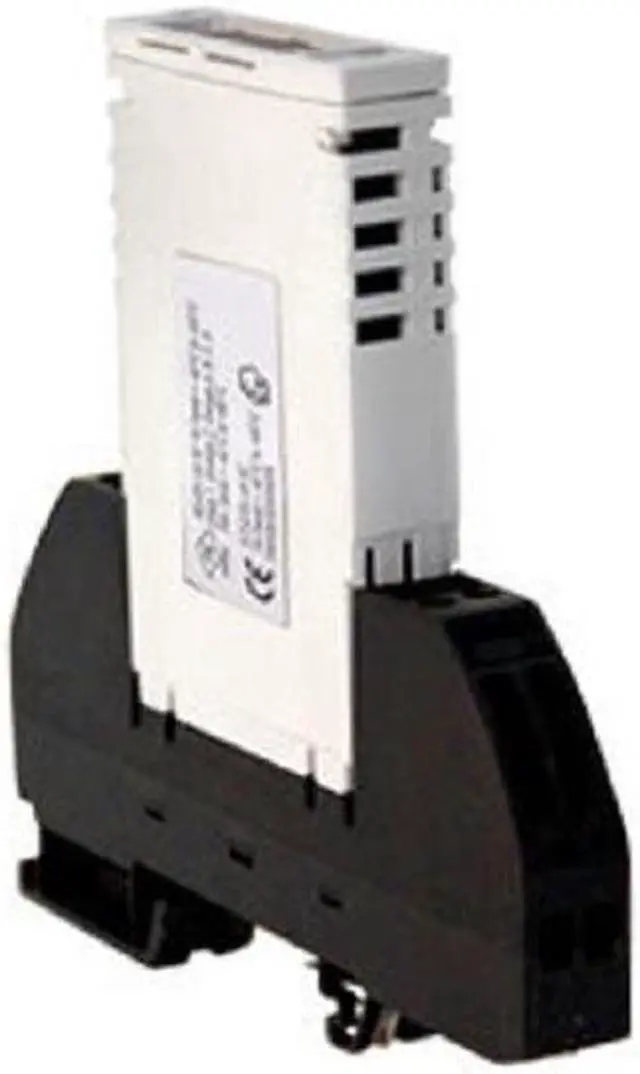

Transtector 1101-680 - 24V Bidirectional Silicon SPD Hazardous
- High performance silicon avalanche diode circuit protection and DIN rail mounting.
- Continuous bi-polar protection.
- Screw terminals accept 28-12AWG.
- Designed for quick removal from separate mounting base.
- Two pair, four wire protection.
+
+
Overview
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The DRDC Series Din-Rail surge suppressors are modular, high-speed, high-current, solid-state devices designed to protect electronic equipment and systems from transient overvoltages. The suppressor limits the magnitude of transient overvoltages that may occur on low voltage DC power lines, 4-20mA current loops or low frequency data lines. Data lines that benefit from
DRDC suppression include: Ethernet, RS-485/232, Profibus, Foundation Fieldbus, DH+ or DeviceNet
The DRDC Series surge suppressors utilize only silicon avalanche suppression diodes (SASD). The suppressor provides continuous, bipolar protection and automatically resets after a surge event with no degradation to its protection capabilities
The suppressor includes a removable module with a base that mounts on a standard 35mm DIN (EN5022) rail. The suppressor size and form factor allows for convenient replacement of existing terminal blocks. The device is rated for up to 10A of continuous current.
Note: The DRDC surge suppressor REQUIRES that the DIN rail have a low impedence path to Earth ground.
DRDC suppression include: Ethernet, RS-485/232, Profibus, Foundation Fieldbus, DH+ or DeviceNet
The DRDC Series surge suppressors utilize only silicon avalanche suppression diodes (SASD). The suppressor provides continuous, bipolar protection and automatically resets after a surge event with no degradation to its protection capabilities
The suppressor includes a removable module with a base that mounts on a standard 35mm DIN (EN5022) rail. The suppressor size and form factor allows for convenient replacement of existing terminal blocks. The device is rated for up to 10A of continuous current.
Note: The DRDC surge suppressor REQUIRES that the DIN rail have a low impedence path to Earth ground.
