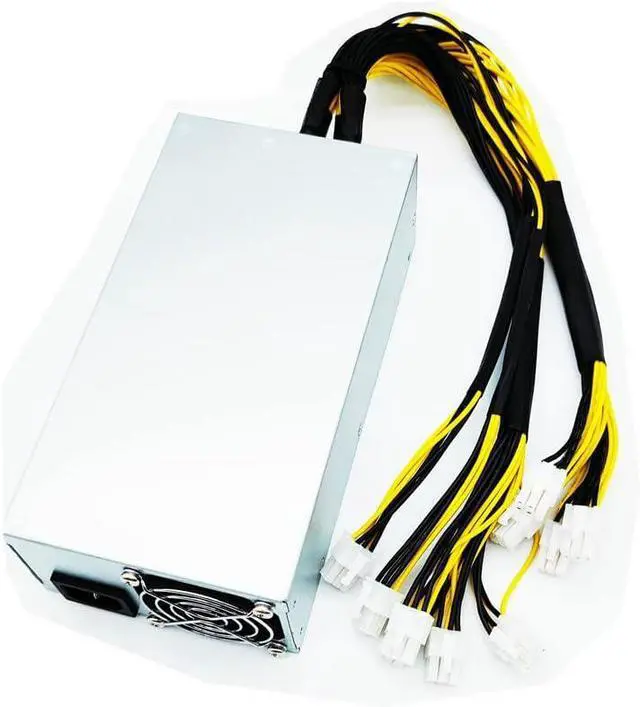

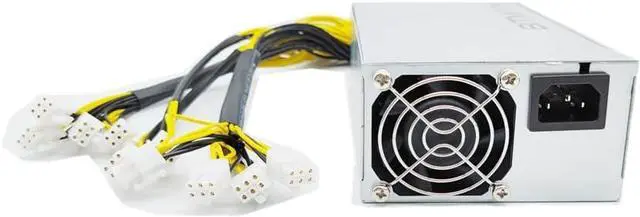

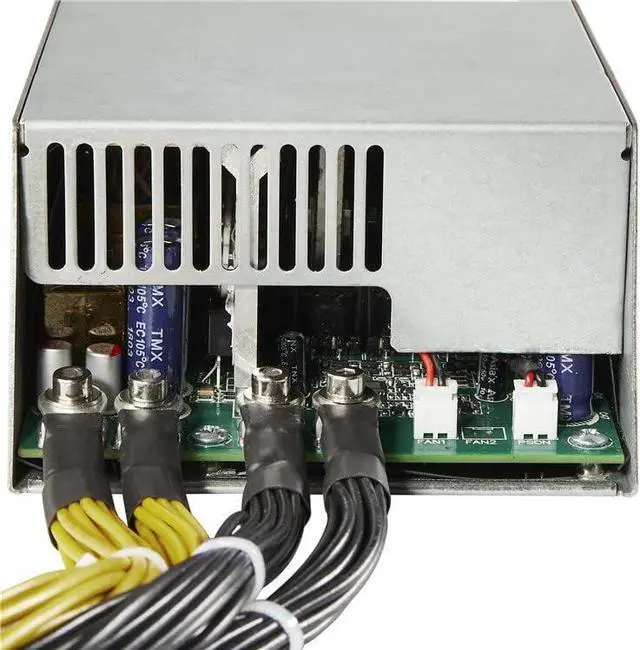

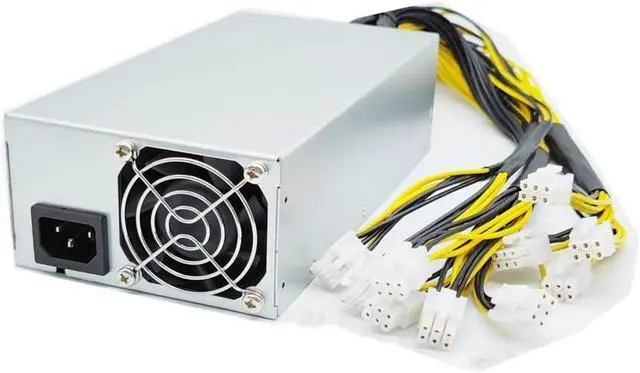

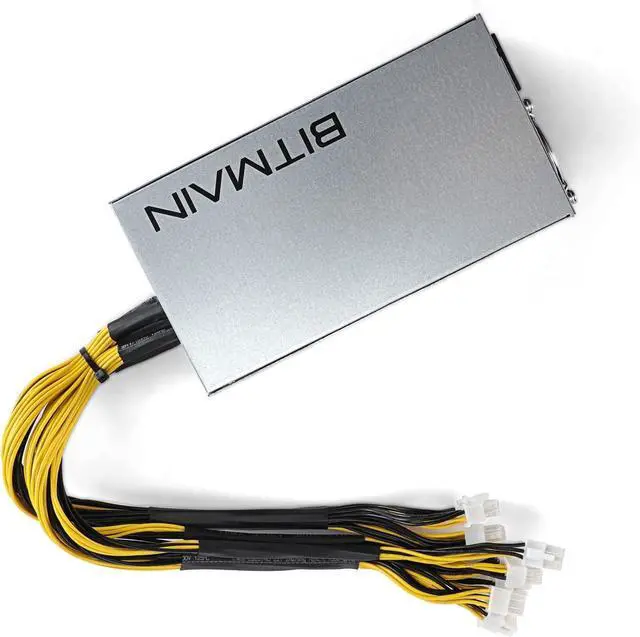

Bitmain Antminer APW7 1800W Power Supply 110V-1000W, 6-Pin Connect Bitcoin Miner Power Supply, Antminer L3+, Bitcoin Mining Hardware, Asic Miner, Crypto Miner Rig for Mining Crypto Coins
- Compared to the older Antminer APW3++, the new Antminer APW7+ Power Supply is 1800w with an input voltage of 220v. The PCB uses a conformal coating to prevent damage from high voltage spark discharges on MOS pins, or near high-pressure solder joints when external conductive particles or dust enter the PSU.
- Considering the high temperature in mining operations, all internal components are selected with a standard of 105°C, so the APW7 has a much longer lifespan than a general use PSU under similar high temperatures.
- One APW7 can power up one S9i, one L3++, one D3, one V9, one X3, one E3 or one Z9 mini. This APW7 has 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
- The APW7 can deliver a maximum power of only 1000W if it is connected to a 110V mains power supply. To obtain the rated power of 1800W, the APW7 must be connected to a 220-240V mains power supply. Please check the mains power supply that is the standard in your region before ordering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Bitcoin Mining Hardware provides you best and powerful mining rig from which you can mine continuously crypto currency whenever and where ever you want.
Here are some benefits our miner:
APW7 can effectively protect your mining rig, supports under-voltage, overload, over-temperature protection, short circuits and resume normal work automatically after removing the issue.
Efficient and Reliable Rig: If you compare the APW7 with the APW3++ you feels huge difference, it improves the maximum conversion efficiency, which can help miners save money on mining costs by saving around 1.5 percent of electricity.
The power supply has four channels, two of which contain four PCI-E six-hole interfaces each, for a total of ten interfaces, just enough for antminer L3++ and other ASIC mining devices.
PCI-E Interface Rig: In addition, because the APW7 interface is based on PCI-E, which is utilized by the majority of contemporary bitcoin mining hardware power schemes, Perfect Design for Antminer S9 or L3+ or Z9 Mini or D3 and other brand min
Cable Length:38cm
Connectors:10 PIN
Number of Interfaces:10
Support back wiring, easy for user to install machine, effective wear resistance
High-quality capacitor solution, long-lasting and durable, up to 150 Celsius.
The power supply can be used to limit the output current to no more than 10%-50% of the rated output power.
When the +12.4V output is short-circuited, it will be short-circuit
When the output current exceeds 10%-50% of the rated output current, it will over-current protection
On our power supply, The fan is operated based on temperature control. Only when the temperature reaches a certain height, the fan will start to dissipate heat. The higher the temperature, the faster the fan speed. If the fan does not rotate during the test, the temperature is not high and requires heat dissipation. At this time, the product is usually working to output power.
DC Voltage: 12.0V
Rated Current (Input 110V): 150A
Rated Power (input 220V): 1800W
Rated Current (Input 110V): 83.3A
Rated Power (input 110V): 1000W
Start-Up Time: Less than 2 seconds
Power of retention time: more than 10ms
Voltage Range:100-264V AC
Frequency Range: 47-63 hz
Power factor: greater than 0.99 (full load)
Leakage Current: Less than 1.5mA
Mining Machine Has The Characteristics Of Energy Saving, Efficient Mining, Efficient Radiating, Safe And Stable. PCI-E Interface Rig-10XPCle 6Pin Power supply parameters
Here are some benefits our miner:
APW7 can effectively protect your mining rig, supports under-voltage, overload, over-temperature protection, short circuits and resume normal work automatically after removing the issue.
Efficient and Reliable Rig: If you compare the APW7 with the APW3++ you feels huge difference, it improves the maximum conversion efficiency, which can help miners save money on mining costs by saving around 1.5 percent of electricity.
The power supply has four channels, two of which contain four PCI-E six-hole interfaces each, for a total of ten interfaces, just enough for antminer L3++ and other ASIC mining devices.
PCI-E Interface Rig: In addition, because the APW7 interface is based on PCI-E, which is utilized by the majority of contemporary bitcoin mining hardware power schemes, Perfect Design for Antminer S9 or L3+ or Z9 Mini or D3 and other brand min
Cable Length:38cm
Connectors:10 PIN
Number of Interfaces:10
Support back wiring, easy for user to install machine, effective wear resistance
High-quality capacitor solution, long-lasting and durable, up to 150 Celsius.
The power supply can be used to limit the output current to no more than 10%-50% of the rated output power.
When the +12.4V output is short-circuited, it will be short-circuit
When the output current exceeds 10%-50% of the rated output current, it will over-current protection
On our power supply, The fan is operated based on temperature control. Only when the temperature reaches a certain height, the fan will start to dissipate heat. The higher the temperature, the faster the fan speed. If the fan does not rotate during the test, the temperature is not high and requires heat dissipation. At this time, the product is usually working to output power.
DC Voltage: 12.0V
Rated Current (Input 110V): 150A
Rated Power (input 220V): 1800W
Rated Current (Input 110V): 83.3A
Rated Power (input 110V): 1000W
Start-Up Time: Less than 2 seconds
Power of retention time: more than 10ms
Voltage Range:100-264V AC
Frequency Range: 47-63 hz
Power factor: greater than 0.99 (full load)
Leakage Current: Less than 1.5mA
Mining Machine Has The Characteristics Of Energy Saving, Efficient Mining, Efficient Radiating, Safe And Stable. PCI-E Interface Rig-10XPCle 6Pin Power supply parameters
