MEISHILE 12V 100A 1200W Switching Power Supply Adapter AC to DC Transformer Converter for LED Driver Strip Light Lamp, Amplifier, Machine, 120V 110V to 12Volt 10A 20A 30A 40A 50A 60A 70A 80Amp

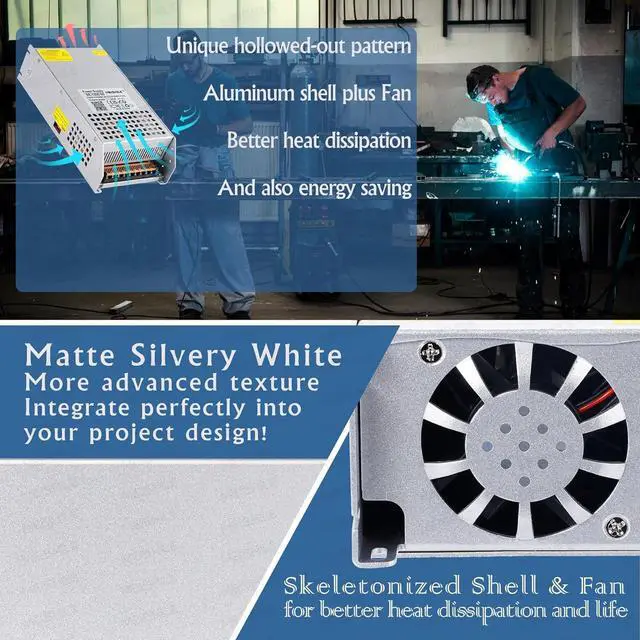

- New upgrade: cooling fan + AL + cooling silicone film + hollow design, the perfect balance of weight and sturdiness. 2.0mm thickened aluminum shell, wear-resistant, pressure-resistant and impact-resistant, not easily deformed. Baking paint process, excellent corrosion-resistant materials, not easy to leave fingerprint traces. Low standby power consumption, high efficiency
- Constant voltage Power supply: Output DC 12V (adj 11-13V) 150-200% Overload protection threshold. 12V DC Power supply for TV, Audio, Amplifier, Motor Driver, Servo, 3D Printer, Machine Tool, Punching Machine, Semiconductor, Parking Heater, Pump, Oil Pump, Car Audio, RGB Led 5050, Led Cob Lighting, CNC DC-DC Module, etc The rated power of the transformer is the power when it is working normally (not no-load). This is different from mechanical equipment
- PCB Double-Sided Board, High precision components, complex board making process, fine lamination, mechanized and automated production. Heat and fire resistant, flame
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

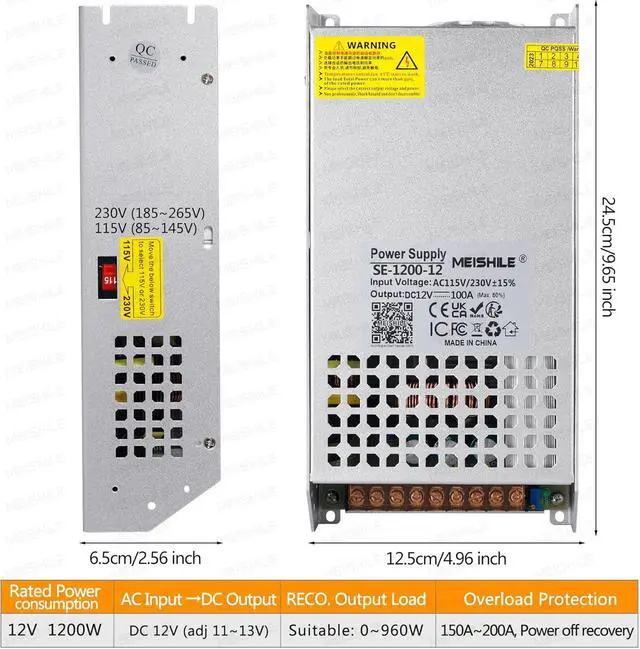

Input Voltage: 220V/110V AC, 50/60HZ
Output Voltage: 12V DC
Max Load: 1200W
How to choose a switching power supply: The max peak value of the load must be lower than the overload protection value of the power supply.
Use for 12V Electrical appliances

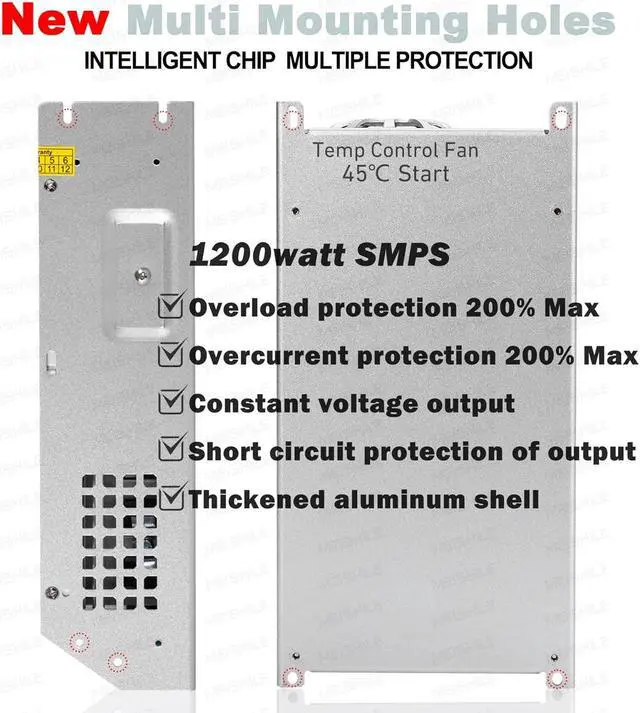

High quality Chips:Overload / Overvoltage / Overcurrent / Short circuit protection
High Capacity Aluminum Electrolytic Capacitors:Large Capacity, Moderate Dielectric Strength, High ESR, Polarity
EMI filter inductor made of copper:Low loss, high efficiency, good heat dissipation, stability
Transparent cover:Dustproof ;Prevent accidental touch
PROTECTION
Overload: 105% pause output
Overvoltage: 115% pause output
Overcurrent: 105% pause output
Short-circuit protection: When the output terminal is short-circuited, pause output
Switch Mode Power Supply Operating instructions : Download in "Product Documentation".
PARAMETER
Rating: 12V 100A 1200 Watts
Input voltage: 110V or 220V AC
Frequency range: 50/60Hz
Efficiency: 85%
Leakage current: <0.5 mA / 230 VAC
Output voltage: 12V DC,adj +5% -10%
Difference range: ± 1%
CHOOSE and ATTENTION
Working Temperature: -10 ~ + 60 ,Humidity: 20 ~ 90% RH
Temperature Coefficient: ± 0.03% / (0 50 )
Start, Rise, Hold Time: 200ms, 50ms, 20ms
Vibration Resistance: 10500Hz, 2G 10min, / 1 cycle, duration 60 minutes, each axis
LED running indicator light
On running
Twinkle overload, unstable output. Please close input immediately!
If you have any questions, please do not hesitate to tell us.
The MEISHILE US team has many years of experience in the field of Power Supplies and can provide you with pre-sales and after-sales service.
MEISHILE, My excellent partners
Previous page
Next pageThis ItemMEISHILE 12V 100A 1200W Switching Power Supply Adapter AC to DC Transformer Converter for LED Driver Strip Light Lamp, Amplifier, Machine, 120V 110V to 12Volt 10A 20A 30A 40A 50A 60A 70A 80AmpRecommendationsDC 12V 100A 1200W Switching Power Supply Adapter PSU AC-DC 12Volt Industrial Transformer Converter SMPS 110V/220V for Motor Pump LED Drive CCTV Security Camera Car Stereo and More 12V Device New Upgraded DIY SMPS 110V 230V AC to DC 12V 125A 1500W Power Supply Adapter,Converter Power Supply,DC 12V Voltage Transformer for Motor Pump CCTV 3D Printer Air Compressor Led (12V-125A-1500W, 12V) IMAYCC AC to DC Converter SMPS 110V to 12V Converter 12V DC Power Supply, Universal 120V to 12V Converter Transformer Max Current 83.4A 1000W NUOFUWEI DC 12V 125A 1500W Power Supply 110V AC to 12V DC Converter Power Supply Adapter 12V 125A 1500W Transformer for Motor Pump CCTV Security Camera Car Stereo 3D Printer and More 12V Device
Output Voltage: 12V DC
Max Load: 1200W
How to choose a switching power supply: The max peak value of the load must be lower than the overload protection value of the power supply.
Use for 12V Electrical appliances
High quality Chips:Overload / Overvoltage / Overcurrent / Short circuit protection
High Capacity Aluminum Electrolytic Capacitors:Large Capacity, Moderate Dielectric Strength, High ESR, Polarity
EMI filter inductor made of copper:Low loss, high efficiency, good heat dissipation, stability
Transparent cover:Dustproof ;Prevent accidental touch
PROTECTION
Overload: 105% pause output
Overvoltage: 115% pause output
Overcurrent: 105% pause output
Short-circuit protection: When the output terminal is short-circuited, pause output
Switch Mode Power Supply Operating instructions : Download in "Product Documentation".
PARAMETER
Rating: 12V 100A 1200 Watts
Input voltage: 110V or 220V AC
Frequency range: 50/60Hz
Efficiency: 85%
Leakage current: <0.5 mA / 230 VAC
Output voltage: 12V DC,adj +5% -10%
Difference range: ± 1%
CHOOSE and ATTENTION
Working Temperature: -10 ~ + 60 ,Humidity: 20 ~ 90% RH
Temperature Coefficient: ± 0.03% / (0 50 )
Start, Rise, Hold Time: 200ms, 50ms, 20ms
Vibration Resistance: 10500Hz, 2G 10min, / 1 cycle, duration 60 minutes, each axis
LED running indicator light
On running
Twinkle overload, unstable output. Please close input immediately!
If you have any questions, please do not hesitate to tell us.
The MEISHILE US team has many years of experience in the field of Power Supplies and can provide you with pre-sales and after-sales service.
MEISHILE, My excellent partners
