1000W Switching Power Supply with Adjustable Output Voltage and Current DC 0-12V 24V 36V 48V 60v 80V 120V 220V Power Supply(12V_Potentiometer)

Industrial Power Supply
1000W switching power supply with adjustable output voltage and current DC 0-12V 24V 36V 48V 60v 80V 120V 220V power supply

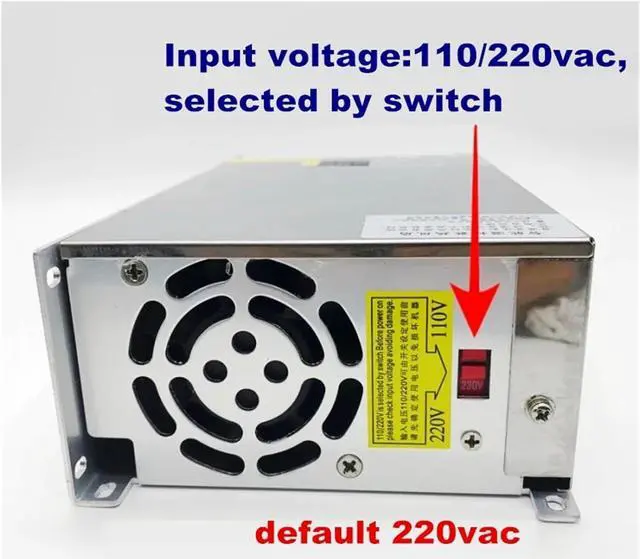

Input voltage: 110V/220VAC switch selection
Output power limit Output voltage range limit Output current range Maximum current
1000W 0-12V 0-70A 70A
1000W 0-24V 0-40A 40A
1000W 0-36V 0-20A 20A
1000W 0-48V 0-28A 28A
1000W 0-60V 0-17A 17A
1000W 0-80V 0-12.5A 12.5A
1000W 0-120V 0-8.5A 8.5A
10000W 0-220V 0-5A 5A
L, N AC input terminal FG Ground mark V+ DC output positive terminal

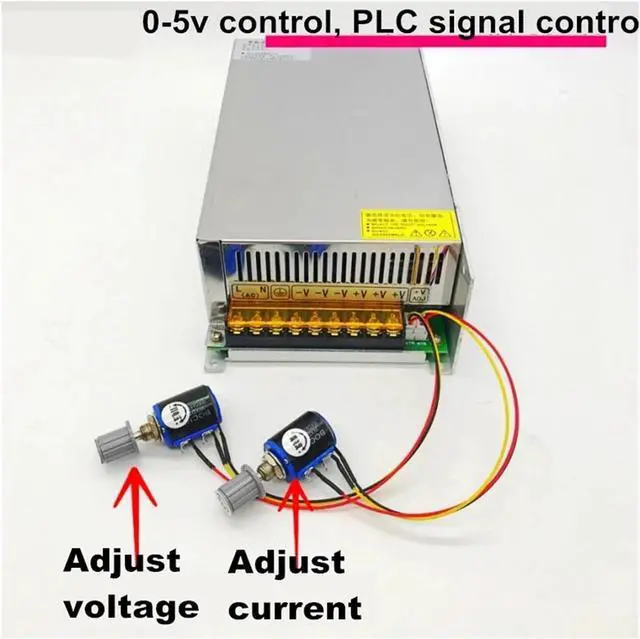

V-DC output negative terminal ADJ adjustable potentiometer fine-tunes the output DC voltage
Full voltage input
miniaturization
Protection function short circuit/overload/overvoltage
100% full load aging test
Input voltage and frequency range----220VAC/47-63Hz
Starting surge current----------------20A@120VAC (cold start)
Output adjustment range-------------- ±100% (rated output voltage)
Overload protection------------------105%~200% (rated load)
Overvoltage protection------------------115%~135% (rated output voltage)
Output start time----------------2S@120VAC 1.0S@230VAC
Output holding time----------------10mS@120VAC, 20mS@230VAC
Insulation strength--------------------Input-output: AC1500V, 1min
Input-shell: AC1500V, 1min
Output-casing: DC500V, 1min
Working environment--10~50; 20%~90%RH (no condensation)
=========
Output power: >500W
Output current: 40A
Model: 1000W
Output frequency: 50/60 HZ
Output type: single channel
Origin: Mainland China
Product size: 240*125*65mm (length*width*height)
Output power: 1000
