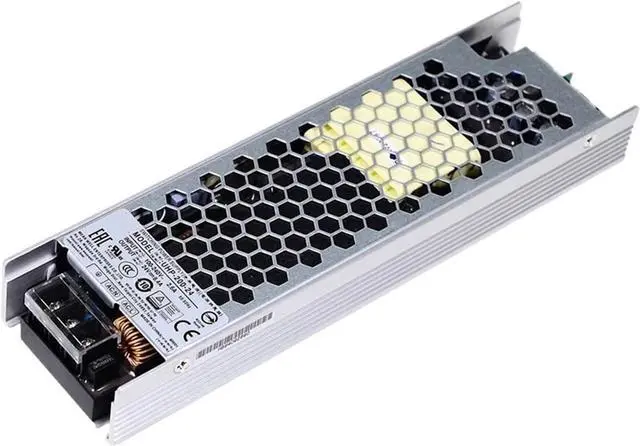

UHP-200 Series 3.3v/4.2v/5v/12v/15v/24v36v/48v fanless Design 200W Ultra-Thin PFC Switching Power Supply(UHP-200-3.3)

Industrial Power Suppl
Model: UHP-200 series
DC voltage: 3.3v/4.2v/5v/12v/15v/24v36v/48v
Thin low profile (26mm)
Fanless design, 200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capacity (100ms)
Working temperature -30~70
Protection: short circuit/overload/overvoltage/overtemperature
DC OK active signal and redundancy function (optional)
Working altitude up to 5000 meters
LED power indicator
Year description:
The UHP-200 series is a 200W single output ultra-thin power supply with a 26mm thin design. The entire series adopts 90~264VAC full range input and provides 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V output voltage lines. In addition to high efficiency up to 94%, the entire series can operate under air convection conditions of -30~70 without a fan. UHP-200 has complete protection functions and 5G vibration resistance; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, UL60950-1, and GB4943. The UHP-200 series serves as a high-performance power supply solution for various industrial applications.
=========
Output power: 101-200W
Output current: 0-50A
Model: UHP-200
Output frequency: 47-63Hz
Output type: single channel
Origin: Mainland China
Working temperature: -30~70
