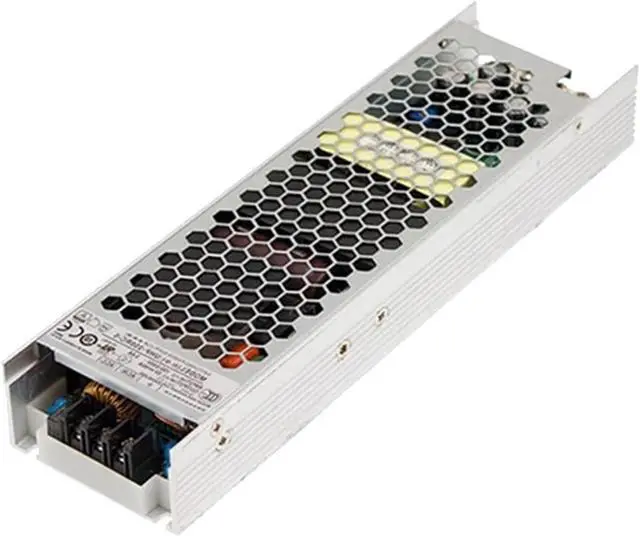

UHP-350R-5 5V/60A fanless Design 300W Thin PFC Switching Power Supply

Industrial Power Suppl
Model: UHP-350R-5
DC voltage: 5v
Rated current: 60A
Rated power: 300W
feature:
Thin low profile (31mm)
Fanless design, 350W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capacity (100ms)
-30~+70 working temperature
Protection: short circuit/overload/overvoltage/overtemperature
DC OK active signal and redundancy function (optional)
Working altitude up to 5000 meters
LED power indicator
3 year description:
The UHP-350 series is a 350W single output ultra-thin power supply with a 31mm thin design. The entire series adopts 90~264VAC full range input and provides 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V output voltage lines. In addition to high efficiency up to 94%, the entire series can operate under air convection conditions of -30~70 without a fan. UHP-350 has complete protection functions and 5G anti-vibration capabilities; it complies with international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1, and GB4943. The UHP-350 series serves as a high-performance power supply solution for various industrial applications.
=========
Output power: 300W
Output current: 60A
Model: UHP-350R-5
Output frequency: 47-63Hz
Output type: single channel
Output voltage: 5V
Input voltage: 90~264VAC
Working temperature: -30~70
Size: 220*62*31mm (length*width*height)
